	Description	OEM Part #	Price
1	1 5993-040 Tray,tool-assy Assembly \| (inc. 2-4)	5993-040	US $107.02
2	2 4406-136 Cover,battery/tool tray Assembly \| (inc. 2-4)	4406-136	US $68.67
3	3 2516-863 Kit,tool-hdx Assembly \| (inc. 2-4)	2516-863	US $68.67
4	4 0417-016 Pad Battery Assembly \| (inc. 2-4)	0417-016	US $3.31
5	5 8476-620 Screw Cap Assembly \| (inc. 2-4)	8476-620	US $2.95
6	6 0745-047 Battery assembly (inc. 7-11)	0745-047	US $169.94
	replacement
6	6 0745-423 BATTERY,PKG (0645-804) (inc. 7-11)	0745-423	US $148.45
7	7 0645-045 Cap Battery (inc. 7-11)	0645-045	US $1.44
8	8 0645-152 Clamp Hose (inc. 7-11)	0645-152	US $3.63
9	9 0645-263 Hose Battery vent (inc. 7-11)	0645-263	US $5.14
10	10 0645-151 Label Battery; warning (inc. 7-11)	0645-151	US $13.42
11	11 0417-012 Foam Battery (inc. 7-11)	0417-012	US $4.13
12	12 0445-063 Cable Battery/ground (inc. 7-11)	0445-063	US $41.36
13	13 0445-062 Cable Battery/solenoid (inc. 7-11)	0445-062	US $10.05
14	14 0645-327 Boot Terminal (inc. 7-11)	0645-327	US $2.40
15	15 0623-038 Nut w/washer (inc. 7-11)	0623-038	US $2.15
16	16 0445-058 Solenoid (inc. 7-11)	0445-058	US $58.53
17	17 8476-625 Screw Cap (inc. 7-11)	8476-625	US $12
18	18 0445-064 Cable Solenoid/starter (inc. 15)	0445-064	US $36.30
19	19 0645-019 Bolt Battery; terminal (inc. 15)	0645-019	US $5.89
20	20 0825-024 Motor,starter-engine (h1) (inc. 19)	0825-024	US $278.77
21	21 0830-228 O-RING,33.5MMX3MM (inc. 19)	0830-228	US $6.58

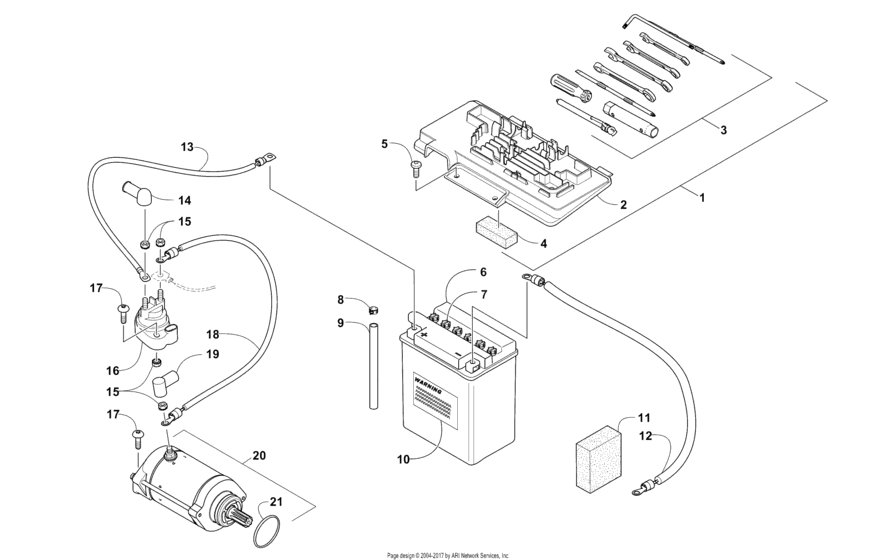

Battery And Starter Assembly (92120) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green General 16787680-861155
