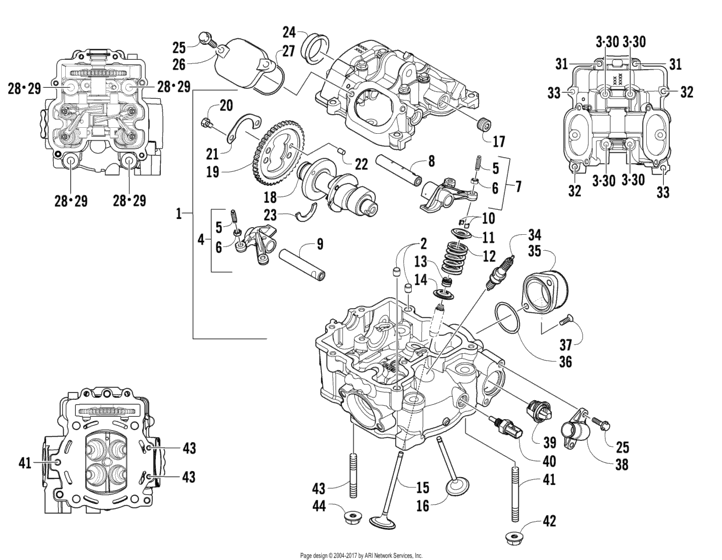

Cylinder Head And Camshaft/valve Assembly (92122) Diagram Arctic Cat MUDPRO MudPro 650 H1
- Model code
- A2010IFS4BUSZ
- Engine Capacity
- 650
- Year
- 2010
- Commercial Name
- MudPro 650 H1
- Sales region
- General
- Colour
- Cat Green
- Model
- MudPro 650 H1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0808-047 HeadAssembly; cylinder Assembly | (inc. 2-17) |
0808-047 |
US $1,434.56 |
||
|
2
|
2
0829-062 Dowel,sleeve-od8 x l7Assembly | (inc. 2-17) |
0829-062 |
US $30.34 |
||
|
3
|
3
0826-001
Screw
Assembly | (inc. 2-17) |
0826-001 |
— | ||
|
4
|
4
0809-319 ARM,VALVE ROCKER ASSY-EXHAUSTExhaust | (inc. two No. 5-6) |
0809-319 |
US $154.37 |
||
|
5
|
5
0809-240 Screw,lash adjustmentExhaust | (inc. two No. 5-6) |
0809-240 |
US $3.73 |
||
|
6
|
6
0827-059 Nut,hex m5x0.5Exhaust | (inc. two No. 5-6) |
0827-059 |
US $15.64 |
||
|
7
|
7
0809-318 ARM,VALVE ROCKER ASSY-INTAKEIntake | (inc. two No. 5-6) |
0809-318 |
US $152.48 |
||
|
8
|
8
0809-241 Shaft,rocker arm-intakeIntake |
0809-241 |
US $29.23 |
||
|
9
|
9
0809-242 Shaft,rocker arm-exhaustExhaust |
0809-242 |
US $29.23 |
||
|
10
|
10
0809-233 Keeper,valveExhaust |
0809-233 |
US $3.49 |
||
|
11
|
11
0809-232 Retainer,upper,springExhaust |
0809-232 |
US $17.25 |
||
|
12
|
12
0809-231 Spring,valveExhaust |
0809-231 |
US $7.65 |
||
|
13
|
13
0830-186 Seal,valve stemExhaust |
0830-186 |
US $12.27 |
||
|
14
|
14
0809-230 Seat,valve springValve |
0809-230 |
US $22.08 |
||
|
15
|
15
0809-228 ValveIntake-31.6mm Valve |
0809-228 |
US $37.73 |
||
|
16
|
16
0809-229 Valve,exhaust-27.9mmValve |
0809-229 |
US $74.45 |
||
|
17
|
17
0831-066 PlugShaft Valve |
0831-066 |
US $21.98 |
||
|
18
|
18
0809-245 CamshaftValve |
0809-245 |
US $357.31 |
||
| replacement | |||||
|
18
|
18
080-9357 Camshaft,assy-VlxValve |
080-9357 |
US $310.08 |
||
|
19
|
19
0809-212 Cam sprocketValve |
0809-212 |
US $41.36 |
||
|
20
|
20
0826-034 BoltValve |
0826-034 |
US $0.88 |
||
|
21
|
21
0828-004 WasherValve |
0828-004 |
US $4.06 |
||
|
22
|
22
0829-049 PinDowel Valve |
0829-049 |
US $1.81 |
||
|
23
|
23
0809-003 C-ringValve |
0809-003 |
US $17.09 |
||
|
24
|
24
0808-077 PlugCylinder head Valve |
0808-077 |
US $12.93 |
||
|
25
|
25
0826-007 ScrewCap Valve |
0826-007 |
US $1.50 |
||
|
26
|
26
0808-003 CapInspection Valve |
0808-003 |
US $15.82 |
||
|
27
|
27
0830-004 O-ringValve |
0830-004 |
US $17.09 |
||
|
28
|
28
0808-037 ScrewCap Valve |
0808-037 |
US $21.03 |
||
| replacement | |||||
|
28
|
28
080-8259 Bolt,hfh-M10X1.25X195Valve |
080-8259 |
US $13.42 |
||
|
29
|
29
0830-147 WasherCrush Valve |
0830-147 |
US $5.36 |
||
|
30
|
30
0830-107 GasketValve |
0830-107 |
from US $4.80 |
||
| replacement | |||||
|
30
|
30
0830-155 GasketValve |
0830-155 |
from US $4.11 |
||
|
31
|
31
0826-002 ScrewCap Valve |
0826-002 |
US $2.26 |
||
|
32
|
32
0826-005 ScrewCap Valve |
0826-005 |
US $3.47 |
||
|
33
|
33
0826-006 ScrewCap Valve |
0826-006 |
US $1.50 |
||
|
34
|
34
0217-799 Spark PlugCPR8E |
0217-799 |
US $113 |
||
|
35
|
35
0570-115
Pipe
CPR8E |
0570-115 |
— | ||
|
36
|
36
0830-090 O-ringCPR8E |
0830-090 |
US $1.50 |
||
|
37
|
37
0826-008 ScrewMachine CPR8E |
0826-008 |
US $2.26 |
||
|
38
|
38
0808-008 CoverThermostat CPR8E |
0808-008 |
US $18.70 |
||
|
39
|
39
0808-078 ThermostatCPR8E |
0808-078 |
US $42.05 |
||
|
40
|
40
0808-127 SwitchAssembly; water temperature CPR8E |
0808-127 |
US $51.02 |
||
|
41
|
41
0827-031 BoltStud CPR8E |
0827-031 |
US $7.47 |
||
|
42
|
42
8424-804 NutCPR8E |
8424-804 |
US $1.34 |
||
|
43
|
43
0827-030 BoltStud CPR8E |
0827-030 |
US $6.50 |
||
|
44
|
44
8424-604 NutCPR8E |
8424-604 |
US $2.96 |
||
