	Description	OEM Part #	Price
1	1 0570-286 Tank Assembly; gas Assembly \| (inc. 2-12)	0570-286	US $399.86
2	2 0470-438 Cap Gas Assembly \| (inc. 3)	0470-438	US $15.58
3	3 0109-733 Gasket Gas cap Assembly \| (inc. 3)	0109-733	US $4.58
4	4 0423-898 Screw Machine Assembly \| (inc. 3)	0423-898	US $4.44
5	5 0470-848 Plate Mounting Assembly \| (inc. 3)	0470-848	US $10.85
6	6 0570-251 Sensor Fuel level (inc. 7-10)	0570-251	US $138.92
7	7 0423-603 Clamp Hose (inc. 7-10)	0423-603	US $4.30
8	8 0470-475 Filter Fuel (inc. 7-10)	0470-475	US $17.25
9	9 0470-521 Seal Fuel level sensor (inc. 7-10)	0470-521	US $4.22
10	10 0470-847 Adapter Fuel level sensor (inc. 7-10)	0470-847	US $4.61
11	11 0470-838 Seal (inc. 7-10)	0470-838	US $4.22
12	12 0423-688 Clamp Hose (inc. 7-10)	0423-688	US $3.15
13	13 0410-070 Hose 25 ft; gasline 25 ft	0410-070	US $144.40
14	14 0470-758 Pump Fuel 25 ft	0470-758	US $73.68
15	15 8476-620 Screw Cap 25 ft	8476-620	US $2.95
16	16 0623-038 Nut w/washer 25 ft	0623-038	US $2.15
17	17 0423-689 Clamp Hose 25 ft	0423-689	US $5.76
18	18 0410-143 Hose 25 ft; fuel 25 ft	0410-143	US $251.49
19	19 0470-702 Fitting Straight 25 ft	0470-702	US $53.49
20	20 0423-732 Screw Gas tank 25 ft	0423-732	US $14.92
21	21 0423-460 Grommet 25 ft	0423-460	US $6.06
22	22 0423-806 Grommet 25 ft	0423-806	US $18.99
23	23 0470-710 Shield Rear; gas tank Gas Tank - Rear	0470-710	US $23.94
24	24 0623-797 Screw Self-tapping Gas Tank - Rear	0623-797	US $8.32
	replacement
24	24 2623-164 Screw, Self-Tapping Gas Tank - Rear	2623-164	US $7.60
25	25 0470-709 Shield Front; gas tank Gas Tank - Front	0470-709	US $21.13

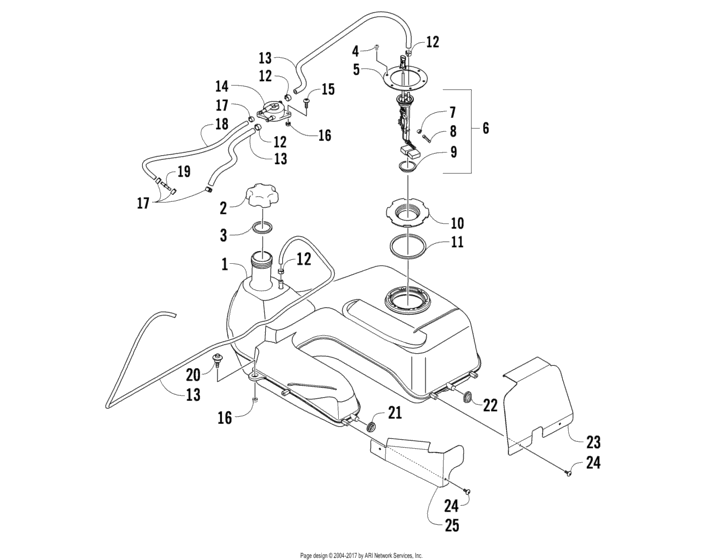

Gas Tank Assembly (92418) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green General 16787697-861155

Gas Tank Assembly (92418) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green General 16787697-861155
