Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0409-200 Winch Rear - Duro Kaden - 26X11-14	0409-200	US $498.37
2	2 3441-077 WINCH,V5000 Rear - Duro Kaden - 26X11-14	3441-077	US $527.30
3	3 1411-826 Decal Winch Rear - Duro Kaden - 26X11-14	1411-826	US $1.61
4	4 3406-171 SPACER,FAIRLEAD (P152) Rear - Duro Kaden - 26X11-14	3406-171	US $51.22
5	5 8051-246 Washer Lock Rear - Duro Kaden - 26X11-14	8051-246	US $4.24
6	6 8408-820 Screw Cap Rear - Duro Kaden - 26X11-14	8408-820	US $3.52
7	7 2441-934 Plow Roller Fairlead - UTV Rear - Duro Kaden - 26X11-14	2441-934	US $39.34
8	8 8409-020 Screw Cap Rear - Duro Kaden - 26X11-14	8409-020	US $7.44
9	9 1441-833 Hook Winch Rear - Duro Kaden - 26X11-14	1441-833	US $46.42
10	10 0623-175 Pin Cotter Rear - Duro Kaden - 26X11-14	0623-175	US $2.95
11	11 1441-130 Pin Rear - Duro Kaden - 26X11-14	1441-130	US $4.51
12	12 1441-781 Strap Rear - Duro Kaden - 26X11-14	1441-781	US $5.85
13	13 0123-788 Tie Cable 8 in.	0123-788	US $2.90
14	14 1441-348 Cable Blue; winch/solenoid Blue	1441-348	US $55.50
15	15 1441-347 Cable Yellow; winch/solenoid Yellow	1441-347	US $55.50
16	16 0645-019 Bolt Battery; terminal Yellow	0645-019	US $5.89
17	17 0623-038 Nut w/washer Yellow	0623-038	US $2.15
18	18 8476-625 Screw Cap Yellow	8476-625	US $12
19	19 0409-066 Solenoid Yellow	0409-066	US $141.38
	replacement
19	19 040-9246 Kit,solenoid Replacement Yellow	040-9246	US $129.25
20	20 0445-079 Cable Battery/ground Yellow	0445-079	US $41.36
21	21 0445-110 CABLE,BATTERY-SOLENOID-22" RED #6 Yellow	0445-110	from US $41.36
22	22 0486-276 Harness Solenoid; adapter Solenoid	0486-276	US $36.30
23	23 0486-543 HARNESS,WINCH-BACKLIT(PROWLER) Backlit	0486-543	US $64.59
24	24 3706-134 Loom,17-ctl (0619-139) Backlit	3706-134	US $3.52

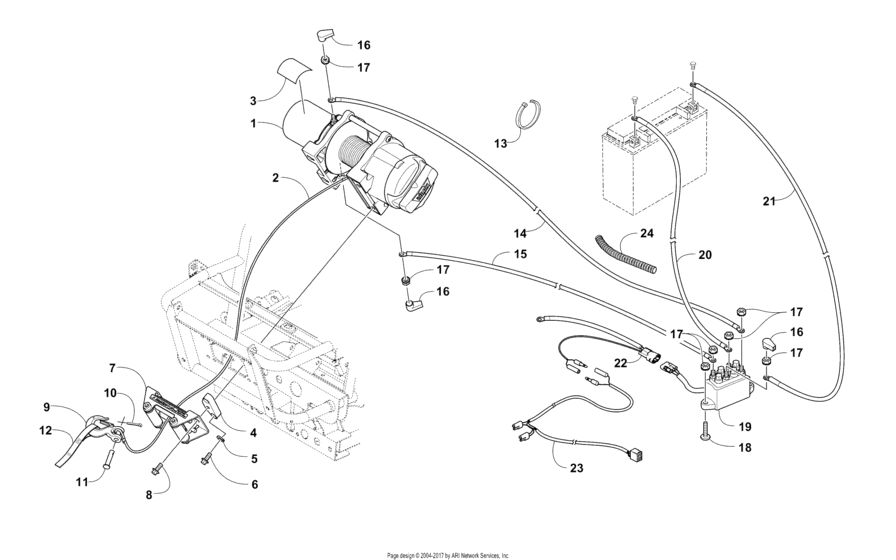

Winch Assembly (301425) Diagram Arctic Cat PROWLER/ HDX Camo General 16819750-861939

Winch Assembly (301425) Diagram Arctic Cat PROWLER/ HDX Camo General 16819750-861939
