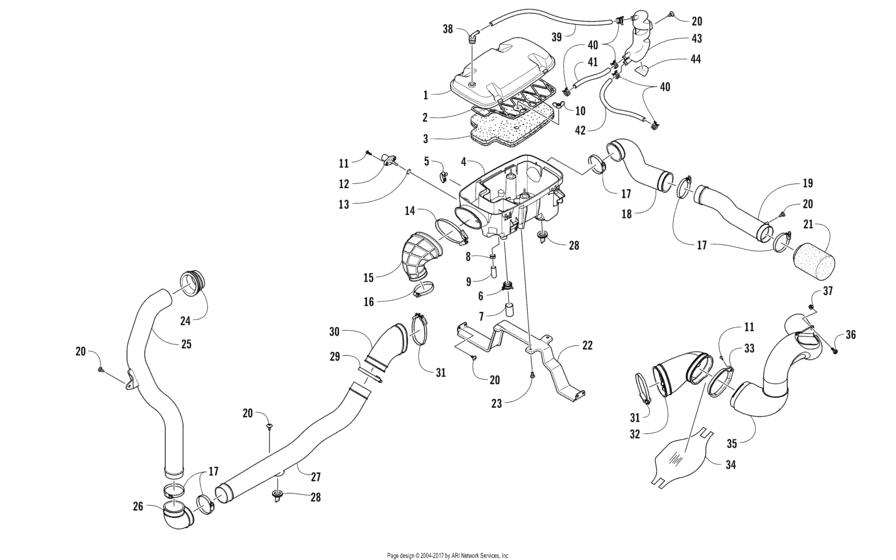

Air Intake Assembly (300254) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2015R4W1PUSR
- Engine Capacity
- 951
- Year
- 2015
- Sales region
- General
- Colour
- Red
- Model
- Prowler 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0470-861 CoverAir intake Zinc |
0470-861 |
US $99.20 |
||
| replacement | |||||
|
1
|
1
147-0220 Top,airbox-Fab (Prowler)Zinc |
147-0220 |
US $149.46 |
||
|
2
|
2
1470-030 Screen,air filterZinc |
1470-030 |
US $47.92 |
||
|
3
|
3
1470-029 Filter,air boxZinc |
1470-029 |
US $50.45 |
||
|
4
|
4
0570-395 Bottom,air box-w/ insertsZinc |
0570-395 |
US $83.45 |
||
|
5
|
5
0423-455 ClipSpring Zinc |
0423-455 |
US $18.68 |
||
|
6
|
6
1623-287 ClampHose Zinc |
1623-287 |
US $4.67 |
||
|
7
|
7
0423-766 CapDrain Zinc |
0423-766 |
US $2.88 |
||
|
8
|
8
0610-563 ClampHose Zinc |
0610-563 |
US $9.40 |
||
|
9
|
9
0470-863 ValveDrain Zinc |
0470-863 |
US $2.09 |
||
|
10
|
10
2623-153 NUT,LOCKING WING-M5-.8X26Zinc |
2623-153 |
US $9.96 |
||
|
11
|
11
0423-342 ScrewSelf-tapping Tapping |
0423-342 |
US $2.15 |
||
|
12
|
12
0430-055 SensorAir temperature (inc. 13) |
0430-055 |
US $34.29 |
||
|
13
|
13
5507-224 O-ring(inc. 13) |
5507-224 |
US $8.43 |
||
|
14
|
14
0423-554 ClampBoot (inc. 13) |
0423-554 |
US $21.60 |
||
|
15
|
15
0413-353 BOOT, AIR INTAKE(inc. 13) |
0413-353 |
US $29.23 |
||
|
16
|
16
0423-066 Clamp(inc. 13) |
0423-066 |
US $8.43 |
||
|
17
|
17
0423-019 Clamp(inc. 13) |
0423-019 |
US $3.33 |
||
|
18
|
18
0413-232 DuctIntake (inc. 13) |
0413-232 |
US $43.38 |
||
|
19
|
19
0413-219 DuctIntake (inc. 13) |
0413-219 |
US $47.92 |
||
|
20
|
20
0623-784
Screw
(inc. 13) |
0623-784 |
— | ||
| replacement | |||||
|
20
|
20
2623-163 Screw, Self-Tapping(inc. 13) |
2623-163 |
US $9.05 |
||
|
21
|
21
0470-834 FilterIntake (inc. 13) |
0470-834 |
US $50.45 |
||
|
22
|
22
2516-166 BracketSupport (inc. 13) |
2516-166 |
US $85.81 |
||
|
23
|
23
8476-616 ScrewCap (inc. 13) |
8476-616 |
US $2.90 |
||
|
24
|
24
2416-088 BootAir-in (inc. 13) |
2416-088 |
US $8.03 |
||
|
25
|
25
0413-361 DUCT,BELT VENT-FRONT(inc. 13) |
0413-361 |
US $55.50 |
||
|
26
|
26
0413-098 BootAir out (inc. 13) |
0413-098 |
US $18.30 |
||
|
27
|
27
0413-236 DuctAir-in (inc. 13) |
0413-236 |
US $69.65 |
||
|
28
|
28
0470-442 ValveAir intake (inc. 13) |
0470-442 |
US $14.38 |
||
|
29
|
29
0423-018 Clamp(inc. 13) |
0423-018 |
US $8.43 |
||
|
30
|
30
0413-233 BootAir-in (inc. 13) |
0413-233 |
US $36.30 |
||
|
31
|
31
0423-730 ClampBoot (inc. 13) |
0423-730 |
US $21.60 |
||
|
32
|
32
0413-352 BOOT, CLUTCH - OUTOut |
0413-352 |
US $36.30 |
||
|
33
|
33
0423-550 ClampBoot Out |
0423-550 |
US $3.54 |
||
|
34
|
34
0412-836 SHIELD, HEAT - CLUTCH DUCT EXHAUSTOut |
0412-836 |
US $5.20 |
||
|
35
|
35
0413-349 DUCT, CLUTCH EXHUAST (XTZ)Out |
0413-349 |
US $75.71 |
||
|
36
|
36
8476-620 ScrewCap Out |
8476-620 |
US $2.95 |
||
|
37
|
37
8427-602 NutOut |
8427-602 |
US $1.45 |
||
|
38
|
38
0470-881 FittingElbow Out |
0470-881 |
US $3.64 |
||
|
39
|
39
0410-187 HoseVent Out |
0410-187 |
US $27.22 |
||
|
40
|
40
1623-281 ClampHose Out |
1623-281 |
US $7.84 |
||
|
41
|
41
0410-221 HoseVent Out |
0410-221 |
US $36.30 |
||
|
42
|
42
0410-220 HoseVent Out |
0410-220 |
US $36.30 |
||
|
43
|
43
0470-857 SeparatorOil Out |
0470-857 |
US $50.45 |
||
|
44
|
44
1441-822 FoilProtective Out |
1441-822 |
US $3.13 |
||
