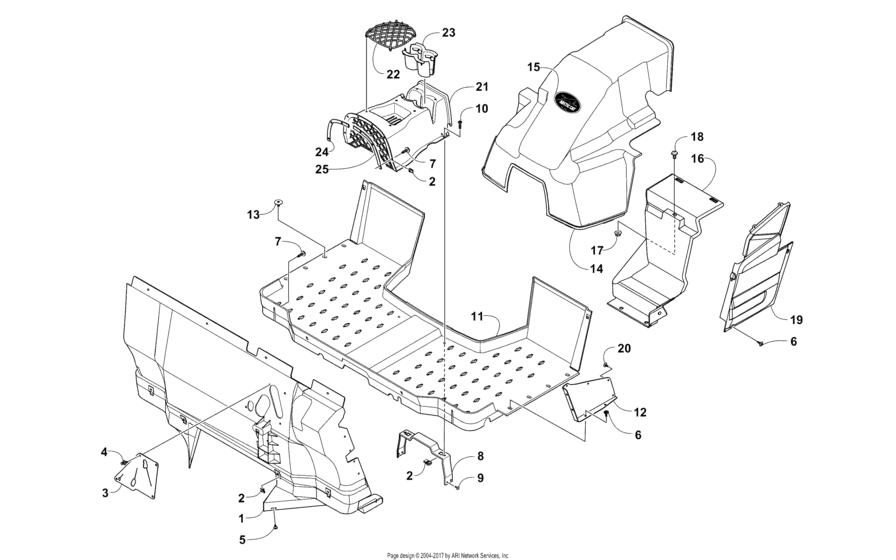

Console And Floor Panel Assembly (300244) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2015R4W1PUSR
- Engine Capacity
- 951
- Year
- 2015
- Sales region
- General
- Colour
- Red
- Model
- Prowler 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4406-687 PANEL,INNER FENDER-ROUTED(700/1000)Inner - Routed |
4406-687 |
US $214.23 |
||
|
2
|
2
0423-577 ClipU-nut Inner - Routed |
0423-577 |
US $2.90 |
||
|
3
|
3
0405-539 BOOT,STEERING(POWER) & PEDALInner - Routed |
0405-539 |
US $9.82 |
||
|
4
|
4
0623-362 RivetPlastic Inner - Routed |
0623-362 |
US $4.40 |
||
|
5
|
5
0623-784
Screw
Inner - Routed |
0623-784 |
— | ||
| replacement | |||||
|
5
|
5
2623-163 Screw, Self-TappingInner - Routed |
2623-163 |
US $9.05 |
||
|
6
|
6
1423-198 SCREW,MAC-TSBWH M6 X 1.0 TRILOBE RIE BLKInner - Routed |
1423-198 |
US $13.40 |
||
|
7
|
7
0423-609 ScrewGas tank mount Inner - Routed |
0423-609 |
US $5.36 |
||
|
8
|
8
2516-313 BracketSupport Inner - Routed |
2516-313 |
US $49.44 |
||
|
9
|
9
8476-616 ScrewCap Inner - Routed |
8476-616 |
US $2.90 |
||
|
10
|
10
8468-670 ScrewMachine Inner - Routed |
8468-670 |
US $4.06 |
||
|
11
|
11
2416-085 FloorInner - Routed |
2416-085 |
US $406.30 |
||
| replacement | |||||
|
11
|
11
5406-460 FloorInner - Routed |
5406-460 |
US $353.52 |
||
|
12
|
12
7506-100 BRKT,KICK PANEL MTG-RH-PTDRight |
7506-100 |
US $23.76 |
||
|
12
|
12
7506-101 BRKT,KICK PANEL MTG-LH-PTDLeft |
7506-101 |
US $23.76 |
||
|
13
|
13
0423-545 ScrewBody Left |
0423-545 |
US $7.50 |
||
|
14
|
14
4406-712 CONSOLE,CENTER (2015 R)Left |
4406-712 |
US $161.42 |
||
|
15
|
15
9611-751 Decal,emblem-chromeLeft |
9611-751 |
US $39.54 |
||
|
16
|
16
2416-018 PanelRight; splash Right |
2416-018 |
US $131.26 |
||
|
16
|
16
2416-019 PanelLeft; splash Left |
2416-019 |
US $131.26 |
||
|
17
|
17
8424-602 NutLeft |
8424-602 |
US $1.72 |
||
|
18
|
18
1423-133 Screw,shoulder 11 x 3.5 x 6mmLeft |
1423-133 |
US $18.68 |
||
|
19
|
19
4406-612 PANEL,SIDE-RR-RHRight |
4406-612 |
US $73.04 |
||
|
19
|
19
4406-613 PANEL,SIDE-RR-LHLeft |
4406-613 |
US $59.55 |
||
|
20
|
20
0623-797 ScrewSelf-tapping Left |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
20
|
20
2623-164 Screw, Self-TappingLeft |
2623-164 |
US $7.60 |
||
|
21
|
21
2416-081 ConsoleFront Front |
2416-081 |
US $85.81 |
||
|
22
|
22
2416-111 NetStorage Front |
2416-111 |
US $33.82 |
||
|
23
|
23
2416-109 InsertCupholder Front |
2416-109 |
US $43.38 |
||
|
24
|
24
0417-019 FoamConsole Front |
0417-019 |
US $28.44 |
||
|
25
|
25
0417-018 FoamConsole Front |
0417-018 |
US $28.44 |
||
