Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1402-620 Bladder Gearcase w/Decal \| (inc. 30)	1402-620	US $12.93
2	2 0423-315 Clamp Double wire; hose w/Decal \| (inc. 30)	0423-315	US $5.36
3	3 8428-002 Nut Lock w/Decal \| (inc. 30)	8428-002	US $27.20
4	4 0423-426 Washer w/Decal \| (inc. 30)	0423-426	US $4.40
5	5 0423-404 Screw Cap w/Decal \| (inc. 30)	0423-404	US $4.38
6	6 2502-180 GEARCASE,FRONT-ASSY (3.1-XTZ ELEC LOCK) w/Decal \| (inc. 30)	2502-180	US $1,503.16
7	7 1402-795 Driveshaft Front w/Decal \| (inc. 30)	1402-795	US $300.99
8	8 8409-025 Screw Cap w/Decal \| (inc. 30)	8409-025	US $2.13
9	9 0402-966 Boot Propeller shaft w/Decal \| (inc. 30)	0402-966	from US $13.31
10	10 2502-181 GEARCASE,REAR-ASSY (3.1) w/Decal \| (inc. 30)	2502-181	US $2,573.06
11	11 1402-203 O-ring w/Decal \| (inc. 30)	1402-203	US $4.11
12	12 1502-560 Driveshaft Assembly; rear Assembly \| (inc. 11-15)	1502-560	US $455.57
13	13 0502-522 Yoke Rear slip Assembly \| (inc. 11-15)	0502-522	US $260.58
14	14 0402-944 Joint Set; universal (inc.10)	0402-944	US $32.27
15	15 0423-395 Ring Retaining (inc.10)	0423-395	US $14.16
16	16 1502-561 Driveshaft Rear (inc.10)	1502-561	US $176.74
17	17 1402-689 Yoke Flange (inc.10)	1402-689	US $75.71
18	18 8408-820 Screw Cap (inc.10)	8408-820	US $3.52
19	19 0123-788 Tie Cable 8 in.	0123-788	US $2.90

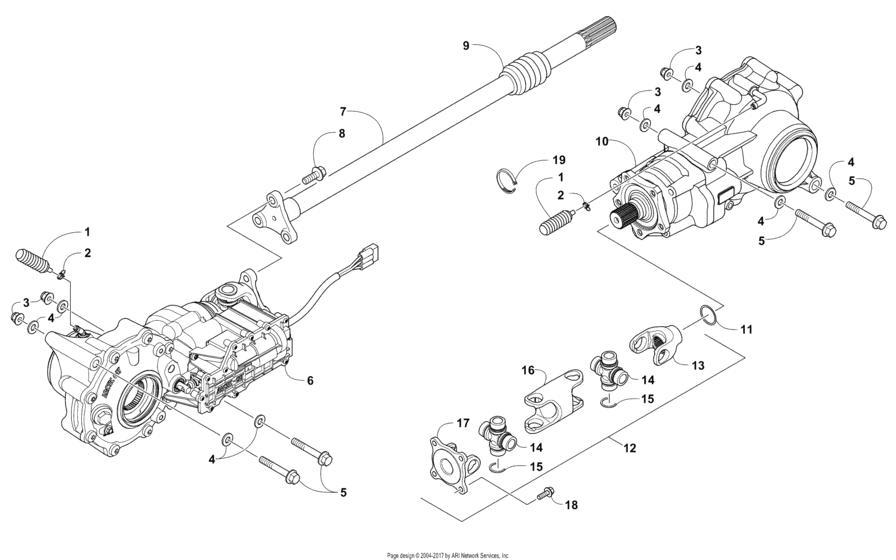

Drive Train Assembly (300257) Diagram Arctic Cat PROWLER/ HDX Red General 16816564-861866
