	Description	OEM Part #	Price
1	1 0800-095 Engine A950gh2 inc. 2-3 ;	0800-095	US $9,477.81
2	2 0801-128 Spacer Engine mount	0801-128	US $28.22
3	3 0801-091 Mount Engine; rubber	0801-091	US $38.34
4	4 0423-426 Washer	0423-426	US $4.40
5	5 0423-734 Screw Cap	0423-734	US $5.86
6	6 0423-451 Screw Cap	0423-451	US $9.46
7	7 8428-002 Nut Lock	8428-002	US $27.20
8	8 0411-426 Decal Clutch cover; warning	0411-426	US $4.70
9	9 0412-338 Gasket Exhaust pipe	0412-338	US $24.82
10	10 8408-820 Screw Cap	8408-820	US $3.52
11	11 0512-517 Pipe Front; exhaust	0512-517	US $324.22
12	12 0512-528 Shield Upper; exhaust pipe	0512-528	US $153.50
13	13 0512-529 Shield Lower; exhaust pipe	0512-529	US $153.50
14	14 8408-616 Screw Cap	8408-616	US $2.96
15	15 8050-222 Washer	8050-222	US $17.60
16	16 0423-909 Isolator	0423-909	US $6.06
17	17 0423-908 Isolator	0423-908	US $36.36
18	18 0512-519 Pipe Rear; exhaust	0512-519	US $263.38
19	19 0412-543 Shield Rear; exhaust pipe	0412-543	US $78.74
20	20 0412-561 Shield Heat	0412-561	US $31.26
21	21 8476-616 Screw Cap	8476-616	US $2.90
22	22 0423-577 Clip U-nut	0423-577	US $2.90
23	23 0612-668 Spring Exhaust	0612-668	US $36.30
24	24 0412-375 Seal Exhaust	0412-375	US $24.82
25	25 0512-500 Muffler Assembly inc. 26-27 and three No. 14 ;	0512-500	US $397.14
26	26 0412-313 Gasket Spark arrester	0412-313	US $27.22
27	27 0512-219 Spark arrester Assembly	0512-219	US $64.59
28	28 8476-612 Screw Machine	8476-612	US $5.36
29	29 0412-553 Bracket Muffler support	0412-553	US $34.80
30	30 0412-544 Bushing	0412-544	US $35.32
31	31 0412-551 Cover Muffler	0412-551	US $75

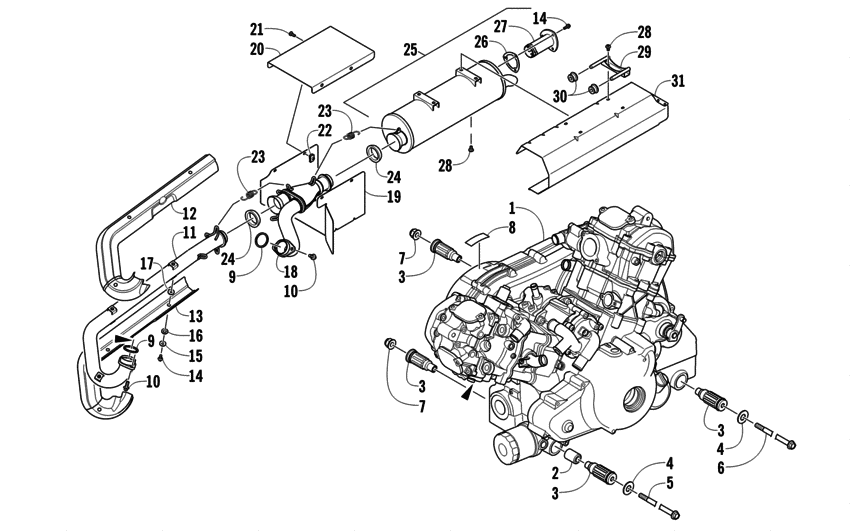

Engine and exhaust Diagram Arctic Cat PROWLER/ HDX Desert Red General 11031542-698750
