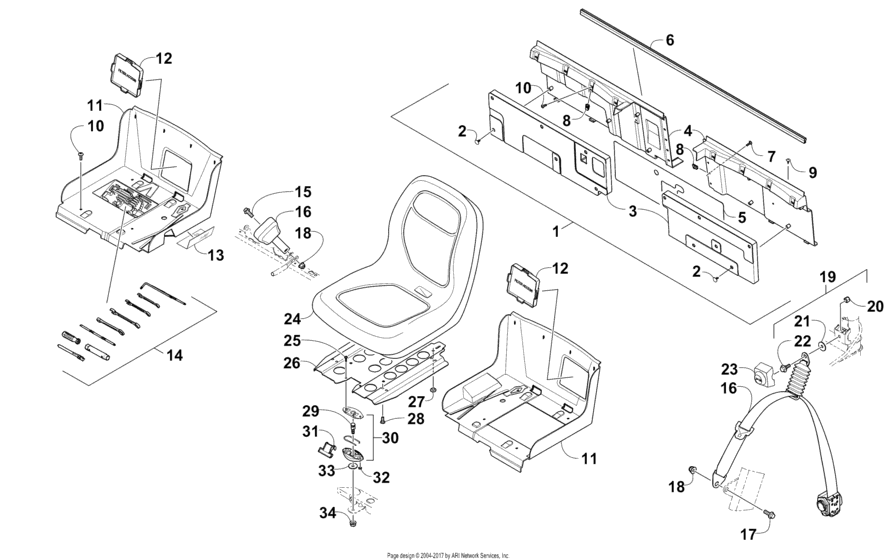

Seat assembly (100086) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2014P4W1PUSE
- Engine Capacity
- 951
- Year
- 2014
- Sales region
- General
- Colour
- Red
- Model
- Prowler 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-623 PANEL,SEAT BACK-ASSYAssembly | (inc. 2-7 and five No. 8) |
5506-623 |
US $420.34 |
||
|
2
|
2
0623-544 PlugAssembly | (inc. 2-7 and five No. 8) |
0623-544 |
US $2.96 |
||
|
3
|
3
4406-320 Panel,seat back-rh-foamFront - Right |
4406-320 |
US $130.94 |
||
|
3
|
3
4406-321 Panel,seat back-lh-foamFront - Left |
4406-321 |
US $131.59 |
||
|
4
|
4
2406-912 PanelRear right; seat Rear - Right |
2406-912 |
US $66.61 |
||
|
4
|
4
2406-913 PanelRear left; seat Rear - Left |
2406-913 |
US $66.61 |
||
|
5
|
5
0412-783 FOIL,PROTECTIVE-SEAT BACKRear - Left |
0412-783 |
US $16.80 |
||
| replacement | |||||
|
5
|
5
1412-120 Foil,protective-Seat BackRear - Left |
1412-120 |
US $18.99 |
||
|
6
|
6
2406-915 SealSeat panel Rear - Left |
2406-915 |
US $85.81 |
||
|
7
|
7
8476-620 ScrewCap Rear - Left |
8476-620 |
US $2.95 |
||
|
7
|
7
0423-577 ClipU-nut Rear - Left |
0423-577 |
US $2.90 |
||
|
9
|
9
0623-784
Screw
Rear - Left |
0623-784 |
— | ||
| replacement | |||||
|
9
|
9
2623-163 Screw, Self-TappingRear - Left |
2623-163 |
US $9.05 |
||
|
10
|
10
0423-609 ScrewGas tank mount Rear - Left |
0423-609 |
US $5.36 |
||
|
11
|
11
2406-910 BaseRight; seat Right |
2406-910 |
US $81.78 |
||
|
11
|
11
2406-911 BaseLeft; seat Left |
2406-911 |
US $81.78 |
||
|
12
|
12
2416-091 CoverAir filter; access Left |
2416-091 |
US $31.26 |
||
|
13
|
13
0412-560 FoilProtective Optional |
0412-560 |
US $12.62 |
||
|
14
|
14
2516-863 Kit,tool-hdxOptional |
2516-863 |
US $68.67 |
||
|
15
|
15
1423-182 Screw,cap-hfh m12x1.75x30 cl10.9 rie blkOptional |
1423-182 |
US $21.68 |
||
|
16
|
16
5506-159 Belt,seat-3pt 11.5" nar cable-assyOptional |
5506-159 |
US $359.58 |
||
|
17
|
17
1423-199 Screw,cap-hfh m12x1.75x25 cl10.9 rie blkOptional |
1423-199 |
US $20.56 |
||
|
18
|
18
1423-184 Nut,hex flg-nyl lock m12x1.75 cl10 z&yOptional |
1423-184 |
US $9.04 |
||
|
19
|
19
0423-915 ScrewAssembly; shoulder Assembly | (inc. 9-11) |
0423-915 |
US $23.76 |
||
|
23
|
23
2416-638 Cover,seat beltAssembly | (inc. 9-11) |
2416-638 |
US $6.06 |
||
|
24
|
24
1506-925 SeatLow-back Assembly | (inc. 9-11) |
1506-925 |
US $328.27 |
||
|
25
|
25
8468-620 ScrewMachine Assembly | (inc. 9-11) |
8468-620 |
US $0.88 |
||
|
26
|
26
2506-780 PlateSeat; base Assembly | (inc. 9-11) |
2506-780 |
US $104 |
||
|
27
|
27
0406-877 BumperFront; seat Assembly | (inc. 9-11) |
0406-877 |
US $4.85 |
||
|
28
|
28
8468-820 ScrewMachine Assembly | (inc. 9-11) |
8468-820 |
US $2.13 |
||
|
29
|
29
0423-559 StudSeat; latch Seat |
0423-559 |
US $13.31 |
||
|
30
|
30
2706-164 LatchAssembly; seat Assembly | (inc. 34-36) |
2706-164 |
US $17.09 |
||
|
31
|
31
2606-854 LeverSeat latch Assembly | (inc. 34-36) |
2606-854 |
US $10.94 |
||
| replacement | |||||
|
31
|
31
2706-164 LatchAssembly; seat Assembly | (inc. 34-36) |
2706-164 |
US $17.09 |
||
|
32
|
32
0623-038 Nut w/washerAssembly | (inc. 34-36) |
0623-038 |
US $2.15 |
||
|
33
|
33
0423-073 WasherAssembly | (inc. 34-36) |
0423-073 |
US $10.65 |
||
|
34
|
34
8424-002 NutAssembly | (inc. 34-36) |
8424-002 |
US $4.40 |
||
