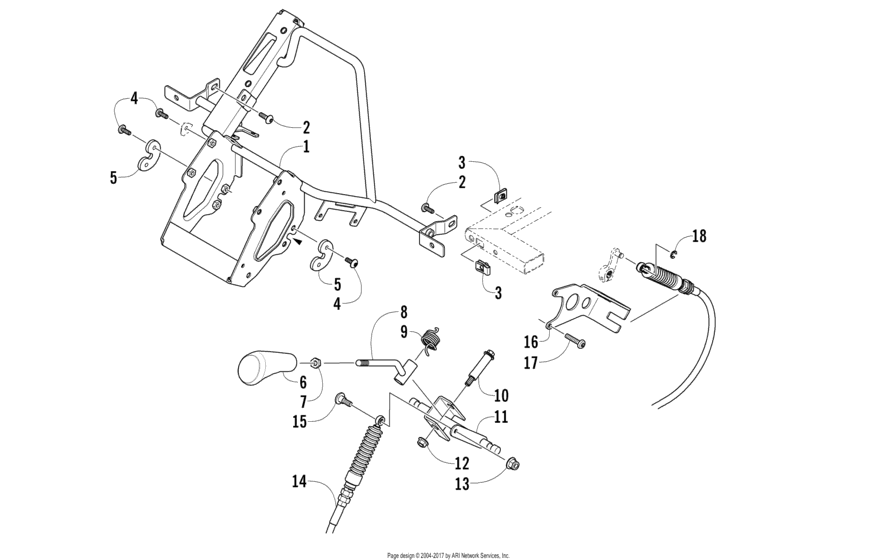

Shifter Assembly (97425) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2014P4W1PUSE
- Engine Capacity
- 951
- Year
- 2014
- Sales region
- General
- Colour
- Red
- Model
- Prowler 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1502-516 MountShift High |
1502-516 |
US $160.01 |
||
|
2
|
2
8476-620 ScrewCap High |
8476-620 |
US $2.95 |
||
|
3
|
3
0423-577 ClipU-nut High |
0423-577 |
US $2.90 |
||
|
4
|
4
8477-616 ScrewMachine High |
8477-616 |
US $4.40 |
||
|
5
|
5
1402-275 RetainerShift linkage High |
1402-275 |
US $3.73 |
||
|
6
|
6
2402-005 Knob,shift-3/8-16 thdHigh |
2402-005 |
US $69.65 |
||
|
7
|
7
0423-885 NutHigh |
0423-885 |
US $10.65 |
||
|
8
|
8
1502-510 LeverShift High |
1502-510 |
US $78.74 |
||
|
9
|
9
1402-880 SpringHigh |
1402-880 |
US $23.76 |
||
|
10
|
10
0423-505 ScrewShoulder High |
0423-505 |
US $4.80 |
||
|
11
|
11
1502-666 AxleShift High |
1502-666 |
US $68.49 |
||
|
12
|
12
8424-802 NutHigh |
8424-802 |
US $0.74 |
||
|
13
|
13
8427-602 NutHigh |
8427-602 |
US $1.45 |
||
|
14
|
14
0487-063 CableShift High |
0487-063 |
US $117.11 |
||
|
15
|
15
0423-356 ScrewShoulder High |
0423-356 |
US $11.92 |
||
|
16
|
16
2516-609 BracketShift cable High |
2516-609 |
US $31.26 |
||
|
17
|
17
8468-635 ScrewMachine High |
8468-635 |
US $4.22 |
||
|
18
|
18
0124-057 E-ringHigh |
0124-057 |
US $4.52 |
