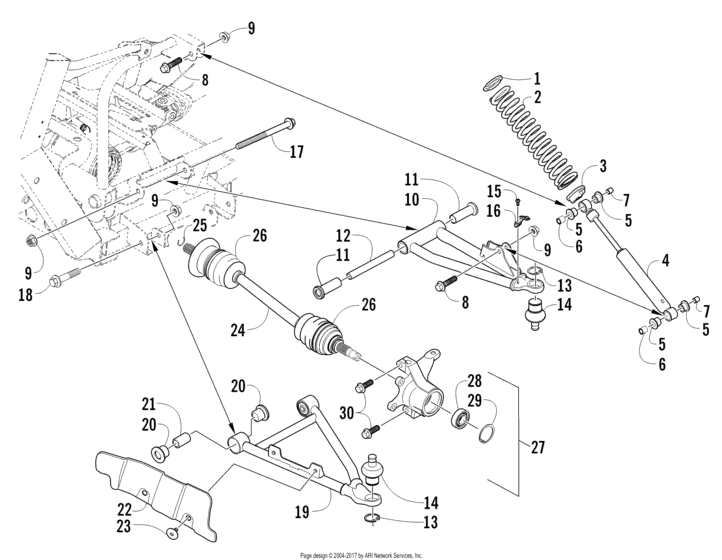

Front Suspension Assembly (92502) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2010P2O4EUSZ
- Engine Capacity
- 545
- Year
- 2010
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1603-889 RetainerSpring (inc. 40) |
1603-889 |
from US $13.42 |
||
|
2
|
2
0503-402 SpringSuspension Platinum |
0503-402 |
US $79.58 |
||
|
3
|
3
0403-395 CAM,ADJUSTER-SPRINGSpring |
0403-395 |
US $21.60 |
||
|
4
|
4
0403-147 Shock absorberFront (inc. 5-6) |
0403-147 |
US $129.25 |
||
|
5
|
5
0603-955 BushingShock absorber (inc. 5-6) |
0603-955 |
US $8.43 |
||
|
6
|
6
1603-209 SleeveShock (inc. 5-6) |
1603-209 |
US $1.65 |
||
|
7
|
7
0404-116 SleeveShock (inc. 5-6) |
0404-116 |
US $3.73 |
||
|
8
|
8
8409-040 ScrewCap (inc. 5-6) |
8409-040 |
US $10.65 |
||
|
9
|
9
8428-002 NutLock (inc. 5-6) |
8428-002 |
US $27.20 |
||
|
10
|
10
0503-420 A-armUpper right Front Right - Assembly (Platinum) | (inc. 9-12) |
0503-420 |
US $258.56 |
||
|
10
|
10
0503-421 A-armUpper left Front Left - Assembly (Platinum) | (inc. 9-12) |
0503-421 |
US $258.56 |
||
|
11
|
11
0403-289 BushingFront Left - Assembly (Platinum) | (inc. 9-12) |
0403-289 |
US $5.85 |
||
|
12
|
12
0403-439 AxleFront Left - Assembly (Platinum) | (inc. 9-12) |
0403-439 |
US $19.54 |
||
|
13
|
13
0423-009 ClipBall joint Front Left - Assembly (Platinum) | (inc. 9-12) |
0423-009 |
US $1.81 |
||
|
14
|
14
0405-483 Balljoint-assyFront Left - Assembly (Platinum) | (inc. 9-12) |
0405-483 |
US $55.50 |
||
|
15
|
15
0423-946 ScrewSelf-tapping Front Left - Assembly (Platinum) | (inc. 9-12) |
0423-946 |
US $3.52 |
||
|
16
|
16
1502-594 ClampRouting Front Left - Assembly (Platinum) | (inc. 9-12) |
1502-594 |
US $5.44 |
||
|
17
|
17
0423-723 ScrewCap Front Left - Assembly (Platinum) | (inc. 9-12) |
0423-723 |
US $18.30 |
||
|
18
|
18
8409-075 ScrewCap Front Left - Assembly (Platinum) | (inc. 9-12) |
8409-075 |
US $2.56 |
||
|
19
|
19
0503-380 A-armLower right Platinum | (inc. 17-18 and one No. 11-12) |
0503-380 |
US $270.69 |
||
|
19
|
19
0503-381 A-armLower left Front Left - Assembly (Platinum) | (inc. 17-18 and one No. 11-12) |
0503-381 |
US $270.69 |
||
|
20
|
20
0403-409 bushing, A-arFront Left - Assembly (Platinum) | (inc. 17-18 and one No. 11-12) |
0403-409 |
US $12.80 |
||
|
21
|
21
0403-438 COLLAR,SUSPENSION BUSHING-A-ARMFront Left - Assembly (Platinum) | (inc. 17-18 and one No. 11-12) |
0403-438 |
US $6.67 |
||
|
22
|
22
0441-756 GuardAxle - right; boot Right Cat Green |
0441-756 |
US $117.14 |
||
|
22
|
22
0441-757 GuardAxle - left; boot Left Cat Green |
0441-757 |
US $117.14 |
||
|
23
|
23
0423-545 ScrewBody Left Cat Green |
0423-545 |
US $7.50 |
||
|
24
|
24
1502-939 Halfshaft,frnt-lck-db cplr-lg(inc. 20-23) |
1502-939 |
US $455.57 |
||
|
24
|
24
1502-940 Kit,halfshaft (1502-803)(inc. 20-23) |
1502-940 |
US $455.57 |
||
|
25
|
25
0423-844 ClipRetaining Inboard |
0423-844 |
US $1.58 |
||
|
26
|
26
1436-207 Repair kitBoot Inboard |
1436-207 |
US $78.74 |
||
|
27
|
27
0505-580 KnuckleAssembly - right Assembly - Right | (inc. one No. 25-26) |
0505-580 |
US $254.28 |
||
|
27
|
27
0505-581 KnuckleAssembly - left Assembly - Left | (inc. one No. 25-26) |
0505-581 |
US $220.80 |
||
|
28
|
28
1402-809 BearingAssembly - Left | (inc. one No. 25-26) |
1402-809 |
US $39.89 |
||
|
29
|
29
0423-423 RingRetaining Assembly - Left | (inc. one No. 25-26) |
0423-423 |
US $5.74 |
||
|
30
|
30
8409-030 ScrewCap Assembly - Left | (inc. one No. 25-26) |
8409-030 |
US $16.65 |
