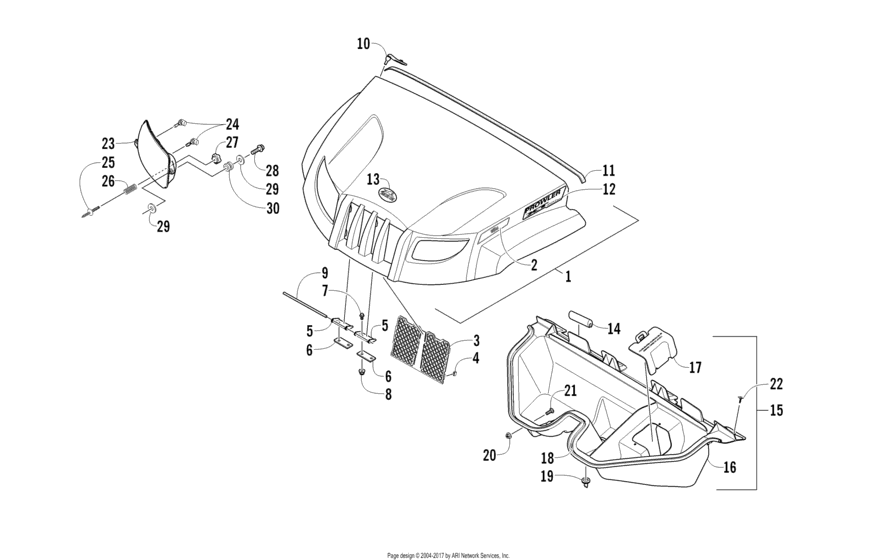

Hood And Headlight Assembly (92462) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2010P2O4EUSR
- Engine Capacity
- 545
- Year
- 2010
- Sales region
- General
- Colour
- Red
- Model
- Prowler 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-683 HoodAssembly Assembly | (inc. 2) |
2506-683 |
US $627.91 |
||
|
2
|
2
0411-818 DecalAmber - right; reflector Right - Amber |
0411-818 |
US $10.43 |
||
|
2
|
2
0411-819 DecalAmber - left; reflector Left - Amber |
0411-819 |
US $10.43 |
||
|
3
|
3
1406-733 ScreenGrille Black |
1406-733 |
US $26.75 |
||
|
4
|
4
0123-987 ClipBlack |
0123-987 |
US $17.60 |
||
|
5
|
5
2516-606 BracketHood Black |
2516-606 |
US $18.40 |
||
|
6
|
6
2506-868
Shim
Black |
2506-868 |
— | ||
|
7
|
7
8408-820 ScrewCap Black |
8408-820 |
US $3.52 |
||
|
8
|
8
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock Black |
8427-802 |
US $0.72 |
||
|
9
|
9
1406-915 PinHood Black |
1406-915 |
US $15.82 |
||
|
10
|
10
2606-624 StrapHold-down Black |
2606-624 |
US $29.24 |
||
|
11
|
11
0417-013 TrimHood/dash Black |
0417-013 |
US $18.30 |
||
|
12
|
12
2411-134 DecalHood - Prowler XT - Right |
2411-134 |
US $18.20 |
||
|
12
|
12
2411-135 DecalHood - Prowler XT - Left |
2411-135 |
US $18.32 |
||
|
13
|
13
1411-789 DecalHood Prowler XT - Left |
1411-789 |
US $34.91 |
||
|
14
|
14
0417-014 TrimDash support Prowler XT - Left |
0417-014 |
US $28.20 |
||
|
15
|
15
4506-037 Box,storage-under hood (assy)Under Hood | (inc. 19-22) |
4506-037 |
US $1,164.16 |
||
|
16
|
16
2416-041 BoxStorage Under Hood | (inc. 19-22) |
2416-041 |
US $162.70 |
||
|
17
|
17
1406-944 CoverMaster cylinder; access Master Cylinder |
1406-944 |
US $31.26 |
||
|
18
|
18
1406-946 SealStorage box Master Cylinder |
1406-946 |
US $91.87 |
||
|
19
|
19
0470-442 ValveAir intake Master Cylinder |
0470-442 |
US $14.38 |
||
|
20
|
20
8424-602 NutMaster Cylinder |
8424-602 |
US $1.72 |
||
|
21
|
21
8476-616 ScrewCap Master Cylinder |
8476-616 |
US $2.90 |
||
|
22
|
22
0423-545 ScrewBody Master Cylinder |
0423-545 |
US $7.50 |
||
|
23
|
23
0509-044 Headlight assemblyRight Right | (inc. 9) |
0509-044 |
US $170.67 |
||
|
23
|
23
0509-035 Headlight assemblyLeft Left | (inc. 9) |
0509-035 |
US $170.67 |
||
|
24
|
24
0409-055
Bulb
Left | (inc. 9) |
0409-055 |
— | ||
|
25
|
25
0423-514 StudHeadlight; adjuster Headlight |
0423-514 |
US $13.34 |
||
|
26
|
26
0423-522 SpringAdjuster Headlight |
0423-522 |
US $5 |
||
|
27
|
27
0423-513 KnobAdjuster Headlight |
0423-513 |
US $7.57 |
||
|
28
|
28
0623-785 ScrewSelf-tapping Headlight |
0623-785 |
US $8.80 |
||
|
29
|
29
8050-217 WasherHeadlight |
8050-217 |
US $3 |
||
|
30
|
30
0423-447 GrommetHeadlight |
0423-447 |
US $9.06 |
