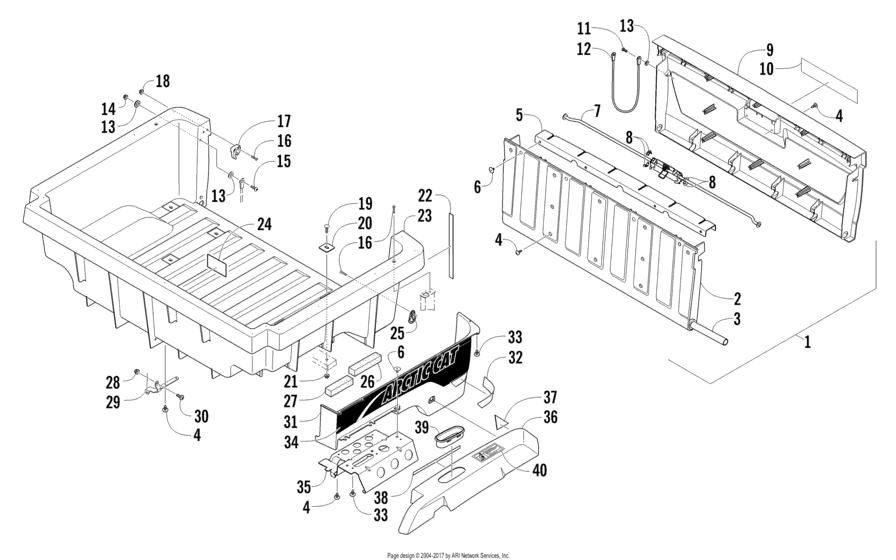

Cargo Box And Tailgate Assembly (94830) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2012P2O4EUSS
- Engine Capacity
- 545
- Year
- 2012
- Sales region
- General
- Colour
- Metallic Gray
- Model
- Prowler 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-205 Complete tailgate assemblyBlack | (inc. 2-9) |
2506-205 |
US $358.58 |
||
|
2
|
2
2406-365 PanelInner; tailgate Inner |
2406-365 |
US $160.58 |
||
|
3
|
3
1406-927 ShaftTailgate; pivot Tailgate |
1406-927 |
US $31.26 |
||
|
4
|
4
0623-784
Screw
Tailgate |
0623-784 |
— | ||
| replacement | |||||
|
4
|
4
2623-163 Screw, Self-TappingTailgate |
2623-163 |
US $9.05 |
||
|
5
|
5
1506-704 BraceTailgate Tailgate |
1506-704 |
US $69.65 |
||
|
6
|
6
0423-101 ScrewBody Tailgate |
0423-101 |
US $14.40 |
||
|
7
|
7
2506-056 LatchAssembly; tailgate Assembly |
2506-056 |
US $129.25 |
||
|
8
|
8
1406-706 BushingAssembly |
1406-706 |
US $8.36 |
||
|
9
|
9
2406-369 PanelOuter; tailgate Outer - Black |
2406-369 |
US $182.30 |
||
|
10
|
10
2411-442 Decal,graphic-arctic cat“Arctic Cat” |
2411-442 |
US $20.59 |
||
|
11
|
11
8476-625 ScrewCap “Arctic Cat” |
8476-625 |
US $12 |
||
|
12
|
12
0487-045 CableTailgate “Arctic Cat” |
0487-045 |
US $18.70 |
||
|
13
|
13
8050-217 Washer“Arctic Cat” |
8050-217 |
US $3 |
||
|
14
|
14
0624-250 NutStarter relay “Arctic Cat” |
0624-250 |
US $3.52 |
||
|
15
|
15
8476-620 ScrewCap “Arctic Cat” |
8476-620 |
US $2.95 |
||
|
16
|
16
8474-630 ScrewMachine “Arctic Cat” |
8474-630 |
US $8.25 |
||
|
17
|
17
2506-664 StrikerRight; tailgate Right |
2506-664 |
US $20.59 |
||
|
17
|
17
2506-665 Striker,Left; tailgateLeft; tailgate Left |
2506-665 |
US $18.70 |
||
|
18
|
18
8424-602 NutLeft |
8424-602 |
US $1.72 |
||
|
19
|
19
0423-623 BoltCarriage Left |
0423-623 |
US $9.04 |
||
|
20
|
20
1506-933 PlateRetainer Left |
1506-933 |
US $14.22 |
||
|
21
|
21
8424-802 NutLeft |
8424-802 |
US $0.74 |
||
|
22
|
22
0417-006 StripFoam Left |
0417-006 |
US $5.86 |
||
|
23
|
23
2406-916 BoxCargo Black |
2406-916 |
US $822.97 |
||
|
24
|
24
1411-119 DecalCargo; warning Cargo Box |
1411-119 |
US $16.98 |
||
|
25
|
25
1506-539 BracketTailgate; mounting Cargo Box |
1506-539 |
US $21.60 |
||
|
26
|
26
0417-010 FoamCargo box Cargo Box |
0417-010 |
US $9.15 |
||
|
27
|
27
0417-011 FoamCargo box Cargo Box |
0417-011 |
US $8.24 |
||
|
28
|
28
0423-540 NutLock Cargo Box |
0423-540 |
US $3.48 |
||
|
29
|
29
2516-178 BracketCargo box latch Cargo Box |
2516-178 |
US $21.13 |
||
|
30
|
30
8476-616 ScrewCap Cargo Box |
8476-616 |
US $2.90 |
||
|
31
|
31
1406-762 PanelRight; box Right - Black |
1406-762 |
US $59.98 |
||
|
31
|
31
1406-761 PanelLeft; box Left - Black |
1406-761 |
US $69.65 |
||
|
32
|
32
1411-128 DecalRear - right; reflector Red |
1411-128 |
US $14.38 |
||
|
32
|
32
1411-129 DecalRear - left; reflector Left - Red |
1411-129 |
US $14.38 |
||
|
33
|
33
0423-342 ScrewSelf-tapping Tapping |
0423-342 |
US $2.15 |
||
|
34
|
34
2411-772 Decal,box-side-tm-rh (prlr xt)Right |
2411-772 |
US $68.49 |
||
|
34
|
34
2411-773 Decal,box-side-tm-lh (prlr xt)Left |
2411-773 |
US $68.49 |
||
|
35
|
35
1506-776 BracketRight; fender support Right |
1506-776 |
US $107.25 |
||
|
35
|
35
2506-927 BracketLeft; fender support Left |
2506-927 |
US $101.23 |
||
|
36
|
36
4506-062 Fender,rear upr rh-arctic ice-assyAssembly - Upper Right Met Gray | (inc. 37-38) |
4506-062 |
US $161.73 |
||
|
36
|
36
4506-063 Fender,rear upr lh-arctic ice-assyAssembly - Upper Left Met Gray | (inc. 37-39) |
4506-063 |
US $161.73 |
||
|
37
|
37
0417-008 PadFoam Assembly - Upper Left Met Gray | (inc. 37-39) |
0417-008 |
US $3.52 |
||
|
38
|
38
0417-007 StripFoam Assembly - Upper Left Met Gray | (inc. 37-39) |
0417-007 |
US $22.12 |
||
|
39
|
39
2516-037 RingTrim Assembly - Upper Left Met Gray | (inc. 37-39) |
2516-037 |
US $8.42 |
||
|
40
|
40
1411-120 DecalPinch point; warning Pinch Point |
1411-120 |
US $5.07 |
||
