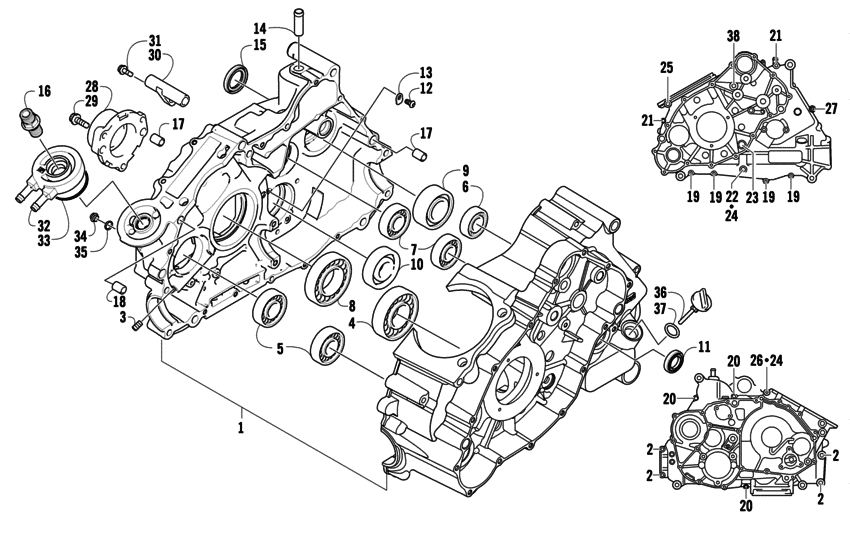

Crankcase assembly (VIN: 4UF07MPV97T330001 and above) Diagram Arctic Cat PROWLER/ HDX Prowler 650
- Model code
- U2007P1S4BUSR
- Engine Capacity
- 641
- Year
- 2007
- Commercial Name
- Prowler 650
- Sales region
- General
- Colour
- Red
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0801-093 Crankcase assemblyinc. 2-15 ; |
0801-093 |
US $2,233.49 |
||
| replacement | |||||
|
1
|
1
0801-138 KitCrankcase assembly h1 inc. 2-15 ; |
0801-138 |
US $2,233.49 |
||
|
2
|
2
8412-850 ScrewCap |
8412-850 |
US $2.88 |
||
|
3
|
3
0801-002 Plug |
0801-002 |
US $5.42 |
||
|
4
|
4
0832-043 Bearing |
0832-043 |
US $71.66 |
||
|
5
|
5
0832-044 Bearing |
0832-044 |
US $48.56 |
||
| replacement | |||||
|
5
|
5
0832-005 Bearing |
0832-005 |
US $54.50 |
||
|
6
|
6
0832-049 Bearing |
0832-049 |
US $18.70 |
||
|
7
|
7
0832-050 Bearing |
0832-050 |
US $21.60 |
||
|
8
|
8
0832-042 Bearing |
0832-042 |
US $71.66 |
||
|
9
|
9
0832-048 BearingDriveshaft |
0832-048 |
US $129.25 |
||
|
10
|
10
0832-051 Bearing |
0832-051 |
US $100.90 |
||
| replacement | |||||
|
10
|
10
0832-077 Bearing |
0832-077 |
US $84.80 |
||
|
11
|
11
0822-052 SealCountershaft |
0822-052 |
US $12.27 |
||
|
12
|
12
0826-100 ScrewCap |
0826-100 |
US $1.06 |
||
|
13
|
13
0822-010 RetainerBearing |
0822-010 |
US $4.11 |
||
|
14
|
14
0801-028 PipeBreather |
0801-028 |
US $31.26 |
||
|
15
|
15
0830-035 SealDriveshaft |
0830-035 |
from US $18.45 |
||
|
16
|
16
0812-056 UnionOil filter |
0812-056 |
US $78.74 |
||
|
17
|
17
0829-002 PinDowel |
0829-002 |
US $3.92 |
||
|
18
|
18
0829-003 PinDowel |
0829-003 |
US $13.42 |
||
|
19
|
19
8468-645 ScrewMachine |
8468-645 |
US $16.50 |
||
|
20
|
20
8468-655 ScrewMachine |
8468-655 |
US $9.05 |
||
|
21
|
21
8468-675 ScrewMachine |
8468-675 |
US $1.50 |
||
|
22
|
22
8412-860 ScrewCap |
8412-860 |
US $3.78 |
||
|
23
|
23
0826-017 ScrewCap |
0826-017 |
US $9.46 |
||
|
24
|
24
0830-008 Gasket |
0830-008 |
from US $1.60 |
||
|
25
|
25
0826-019 ScrewCap |
0826-019 |
US $12.62 |
||
|
26
|
26
0826-018 ScrewCap |
0826-018 |
US $8.43 |
||
|
27
|
27
8468-695 ScrewMachine |
8468-695 |
US $3.78 |
||
|
28
|
28
0801-006 HousingSecondary shaft bearing |
0801-006 |
US $217.93 |
||
| replacement | |||||
|
28
|
28
0801-168 Housing,secondary shaft bearing |
0801-168 |
US $217.93 |
||
|
29
|
29
0826-105 Bolt |
0826-105 |
US $2.13 |
||
|
30
|
30
0801-069 PipeBreather |
0801-069 |
US $55.58 |
||
|
31
|
31
0826-038 BoltBreather pipe |
0826-038 |
US $1.41 |
||
|
32
|
32
0812-055 TowerOil filter |
0812-055 |
US $126.87 |
||
|
33
|
33
0830-166 O-ring |
0830-166 |
US $4.11 |
||
|
34
|
34
0812-058 Plug |
0812-058 |
US $7.86 |
||
|
35
|
35
0812-026 Gasket |
0812-026 |
from US $4.80 |
||
|
36
|
36
0801-073 StickOil level |
0801-073 |
US $27.22 |
||
|
37
|
37
0830-010 O-ringOil level stick |
0830-010 |
from US $4.43 |
||
|
38
|
38
8468-680 ScrewMachine |
8468-680 |
US $4.32 |
||
