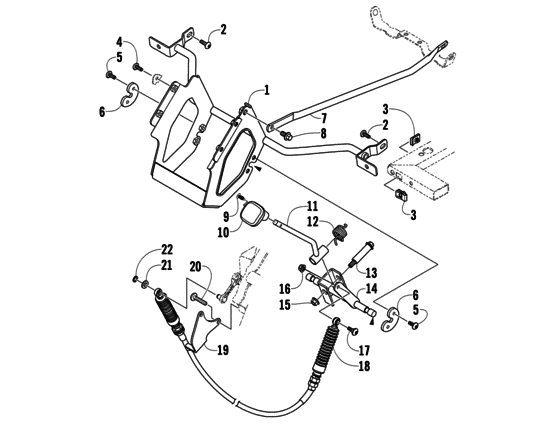

Shifter assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2T4EUSZ
- Engine Capacity
- 695
- Year
- 2009
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1502-426 MountShift |
1502-426 |
US $160.71 |
||
|
2
|
2
8476-620 ScrewCap |
8476-620 |
US $2.95 |
||
|
3
|
3
0423-577 ClipU-nut |
0423-577 |
US $2.90 |
||
|
4
|
4
8477-616 ScrewMachine |
8477-616 |
US $4.40 |
||
|
5
|
5
8476-616 ScrewCap |
8476-616 |
US $2.90 |
||
|
6
|
6
1402-275 RetainerShift linkage |
1402-275 |
US $3.73 |
||
|
7
|
7
1502-264 SupportShift mount |
1502-264 |
US $41.36 |
||
|
8
|
8
8408-816 ScrewCap |
8408-816 |
US $4.40 |
||
|
9
|
9
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
10
|
10
1402-752 KnobShift |
1402-752 |
US $9.92 |
||
|
11
|
11
1502-422
Lever
|
1502-422 |
— | ||
|
12
|
12
1402-668 SpringShift |
1402-668 |
US $8.66 |
||
|
13
|
13
0423-505 ScrewShoulder |
0423-505 |
US $4.80 |
||
|
14
|
14
1502-424 AxleShift |
1502-424 |
US $71.66 |
||
|
15
|
15
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
16
|
16
8427-602 Nut |
8427-602 |
US $1.45 |
||
|
17
|
17
0423-356 ScrewShoulder |
0423-356 |
US $11.92 |
||
|
18
|
18
0487-059 CableShift |
0487-059 |
US $133.30 |
||
|
19
|
19
2406-894 BracketShift cable |
2406-894 |
US $20.59 |
||
|
20
|
20
8468-645 ScrewMachine |
8468-645 |
US $16.50 |
||
|
21
|
21
0623-094 Washer |
0623-094 |
US $5.90 |
||
|
22
|
22
0124-057 E-ring |
0124-057 |
US $4.52 |
