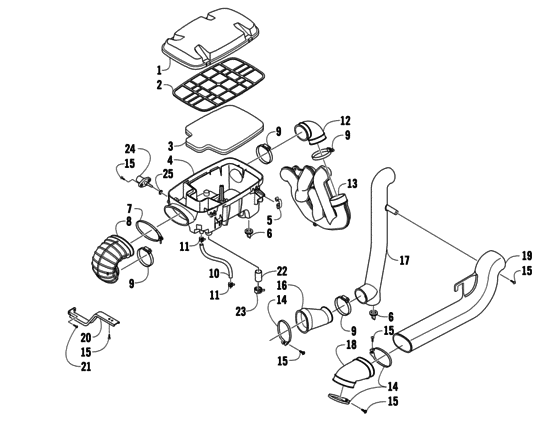

Air Intake Assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2T4EUSR
- Engine Capacity
- 695
- Year
- 2009
- Sales region
- General
- Colour
- Red
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0470-850 CoverIntake |
0470-850 |
US $78.48 |
||
| replacements | |||||
|
1
|
1
0470-877 CoverAir intake |
0470-877 |
US $83.07 |
||
|
1
|
1
147-0221 Top,airbox-Fab (Atv) |
147-0221 |
US $94.90 |
||
|
2
|
2
0470-560 ScreenAir filter |
0470-560 |
US $54.50 |
||
|
3
|
3
0470-558 FilterAir |
0470-558 |
US $46.42 |
||
|
4
|
4
0470-728 HousingAir intake |
0470-728 |
US $90.86 |
||
|
5
|
5
0423-455 ClipSpring |
0423-455 |
US $18.68 |
||
|
6
|
6
0470-442 ValveAir intake |
0470-442 |
US $14.38 |
||
|
7
|
7
0423-554 ClampBoot |
0423-554 |
US $21.60 |
||
|
8
|
8
0470-511 BootCarburetor |
0470-511 |
US $78.74 |
||
|
9
|
9
0423-019 Clamp |
0423-019 |
US $3.33 |
||
|
10
|
10
0410-172 Hose, VentVent |
0410-172 |
US $27.22 |
||
|
11
|
11
0423-045 ClampSpring; hose |
0423-045 |
US $2.40 |
||
|
12
|
12
0413-098 BootAir out |
0413-098 |
US $18.30 |
||
|
13
|
13
0513-024 DuctAir-in |
0513-024 |
US $43.38 |
||
|
14
|
14
0423-550 ClampBoot |
0423-550 |
US $3.54 |
||
|
15
|
15
0423-342 ScrewSelf-tapping |
0423-342 |
US $2.15 |
||
|
16
|
16
0413-049 BootFront; duct |
0413-049 |
US $36.30 |
||
|
17
|
17
0413-188 Duct |
0413-188 |
US $52.99 |
||
|
18
|
18
0413-109 BootAir-out |
0413-109 |
US $23.76 |
||
|
19
|
19
0413-189 DuctClutch; air-out |
0413-189 |
US $42.42 |
||
|
20
|
20
2506-651 BracketSupport |
2506-651 |
US $31.26 |
||
|
21
|
21
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
21
|
21
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
22
|
22
0423-766 CapDrain |
0423-766 |
US $2.88 |
||
|
23
|
23
1623-287 ClampHose |
1623-287 |
US $4.67 |
||
|
24
|
24
0430-055 SensorAir temperature inc. 25 ; |
0430-055 |
US $34.29 |
||
|
25
|
25
5507-224 O-ring |
5507-224 |
US $8.43 |
||
