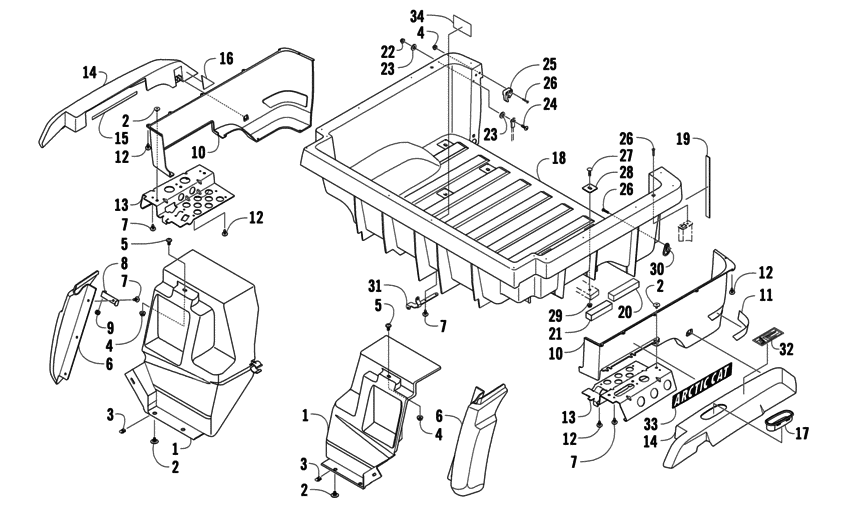

Rear body panel and cargo box assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2T4EUSR
- Engine Capacity
- 695
- Year
- 2009
- Sales region
- General
- Colour
- Red
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2406-617 PanelLeft; splash |
2406-617 |
US $102.77 |
||
|
1
|
1
2406-616 PanelRight; splash |
2406-616 |
US $102.77 |
||
|
2
|
2
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
|
3
|
3
0423-577 ClipU-nut |
0423-577 |
US $2.90 |
||
|
4
|
4
8424-602 Nut |
8424-602 |
US $1.72 |
||
|
5
|
5
8476-616 ScrewCap |
8476-616 |
US $2.90 |
||
|
6
|
6
2406-868 FenderLower - right; rear |
2406-868 |
US $44.79 |
||
|
6
|
6
2406-869 FenderLower - left; rear |
2406-869 |
US $49.38 |
||
|
7
|
7
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
7
|
7
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
8
|
8
2516-095 BracketLower; fender support |
2516-095 |
US $8.66 |
||
|
9
|
9
0423-447 Grommet |
0423-447 |
US $9.06 |
||
|
10
|
10
1406-762 PanelRight; box |
1406-762 |
US $59.98 |
||
|
10
|
10
1406-761 PanelLeft; box |
1406-761 |
US $69.65 |
||
|
11
|
11
1411-128 DecalRear - right; reflector |
1411-128 |
US $14.38 |
||
|
11
|
11
1411-129 DecalRear - left; reflector |
1411-129 |
US $14.38 |
||
|
12
|
12
0423-342 ScrewSelf-tapping |
0423-342 |
US $2.15 |
||
|
13
|
13
2506-927 BracketLeft; fender support |
2506-927 |
US $101.23 |
||
|
13
|
13
1506-776 BracketRight; fender support |
1506-776 |
US $107.25 |
||
|
14
|
14
2506-990 FenderAssembly - upper right; rear inc. 15-16 ; |
2506-990 |
US $49.78 |
||
|
14
|
14
2506-991 FenderAssembly - upper left; rear inc. 15-17 ; |
2506-991 |
US $52.30 |
||
|
15
|
15
0417-007 StripFoam |
0417-007 |
US $22.12 |
||
|
16
|
16
0417-008 PadFoam |
0417-008 |
US $3.52 |
||
|
17
|
17
2516-037 RingTrim |
2516-037 |
US $8.42 |
||
|
18
|
18
2406-417 BoxRear cargo |
2406-417 |
US $744.07 |
||
| replacement | |||||
|
18
|
18
2406-916 BoxCargo |
2406-916 |
US $822.97 |
||
|
19
|
19
0417-006 StripFoam |
0417-006 |
US $5.86 |
||
|
20
|
20
0417-010 FoamCargo box |
0417-010 |
US $9.15 |
||
|
21
|
21
0417-011 FoamCargo box |
0417-011 |
US $8.24 |
||
|
22
|
22
0624-250 NutStarter relay |
0624-250 |
US $3.52 |
||
|
23
|
23
8050-217 Washer |
8050-217 |
US $3 |
||
|
24
|
24
8476-620 ScrewCap |
8476-620 |
US $2.95 |
||
|
25
|
25
2506-664 StrikerRight; tailgate |
2506-664 |
US $20.59 |
||
|
25
|
25
2506-665 Striker,Left; tailgateLeft; tailgate |
2506-665 |
US $18.70 |
||
|
26
|
26
8474-630 ScrewMachine |
8474-630 |
US $8.25 |
||
|
27
|
27
0423-623 BoltCarriage |
0423-623 |
US $9.04 |
||
|
28
|
28
1506-933 PlateRetainer |
1506-933 |
US $14.22 |
||
|
29
|
29
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
30
|
30
1506-539 BracketTailgate; mounting |
1506-539 |
US $21.60 |
||
|
31
|
31
2516-178 BracketCargo box latch |
2516-178 |
US $21.13 |
||
|
32
|
32
1411-120 DecalPinch point; warning |
1411-120 |
US $5.07 |
||
|
33
|
33
1411-539 DecalBox - |
1411-539 |
US $33.82 |
||
|
34
|
34
1411-119 DecalCargo; warning |
1411-119 |
US $16.98 |
||
