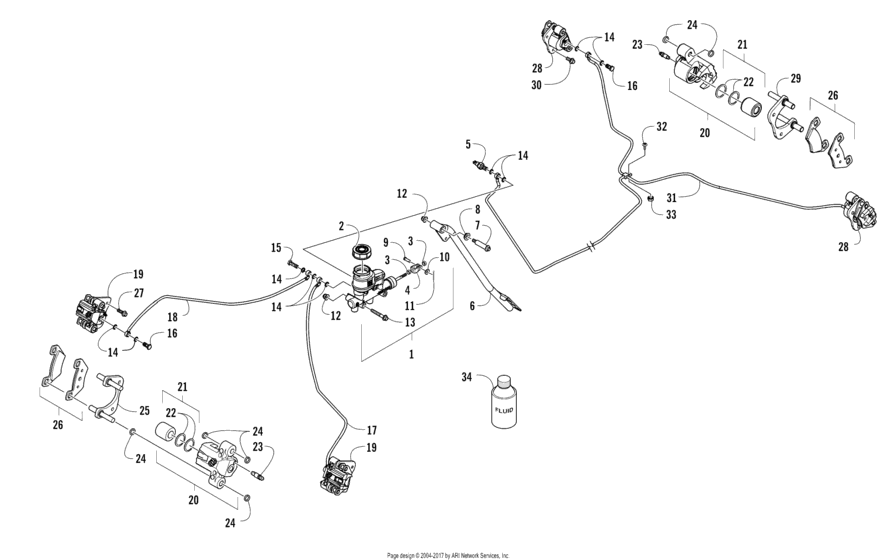

Front And Rear Brake Assembly (300718) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2016R2T1PUSX
- Engine Capacity
- 695
- Year
- 2016
- Sales region
- General
- Colour
- Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2502-043 CYLINDER,MASTER BRAKE SIDEWINDER II-ASSYAssembly | (inc. 2-4) |
2502-043 |
US $247.46 |
||
|
2
|
2
2502-044 KIT,SERVICE CAP-TANDEM MC SIDEWINDER IIAssembly | (inc. 2-4) |
2502-044 |
US $64.59 |
||
|
3
|
3
0402-592 NutAssembly | (inc. 2-4) |
0402-592 |
US $0.22 |
||
|
4
|
4
1402-520 ClevisAssembly | (inc. 2-4) |
1402-520 |
US $55.50 |
||
|
5
|
5
3313-239 SwitchBrake Assembly | (inc. 2-4) |
3313-239 |
US $82.78 |
||
|
6
|
6
2502-215 PEDAL,BRAKE-BLACK-MACHAssembly | (inc. 2-4) |
2502-215 |
US $80.48 |
||
|
7
|
7
0423-505 ScrewShoulder Assembly | (inc. 2-4) |
0423-505 |
US $4.80 |
||
|
8
|
8
2402-213 BUSHING (.5 ID X .594 OD X .25 L)Assembly | (inc. 2-4) |
2402-213 |
US $6.04 |
||
|
9
|
9
1402-377 PinClevis Assembly | (inc. 2-4) |
1402-377 |
US $2.74 |
||
|
10
|
10
8050-217 WasherAssembly | (inc. 2-4) |
8050-217 |
US $3 |
||
|
11
|
11
0117-868 PinCotter Assembly | (inc. 2-4) |
0117-868 |
US $1.29 |
||
|
12
|
12
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock Assembly | (inc. 2-4) |
8427-802 |
US $0.72 |
||
|
13
|
13
8408-855 SCREW,CAP-HFH M8X1.25X55 CL8.8 Z&YAssembly | (inc. 2-4) |
8408-855 |
US $5.12 |
||
|
14
|
14
0423-178 WasherCrush Assembly | (inc. 2-4) |
0423-178 |
US $12 |
||
|
15
|
15
0423-610 BoltDouble banjo fitting Fitting |
0423-610 |
US $12.62 |
||
|
16
|
16
0423-413 BoltBanjo fitting Fitting |
0423-413 |
US $5.60 |
||
|
17
|
17
1402-389 HoseFront; brake Front - Left |
1402-389 |
US $133.30 |
||
|
18
|
18
1402-290 HoseFront right; brake Front - Right |
1402-290 |
US $107.02 |
||
|
19
|
19
1502-730 CaliperRight front; brake (inc. 2-9) Front Right |
1502-730 |
US $480.82 |
||
|
19
|
19
1502-731 CaliperLeft front; brake (inc. 2-9) Front Left & Rear Right |
1502-731 |
US $390.91 |
||
|
20
|
20
1436-160 HousingAssembly - right front; caliper Assembly | (inc. 3-6) Front Right |
1436-160 |
US $278.77 |
||
|
20
|
20
1436-161 HousingAssembly - left rear; caliper Assembly | (inc. 3-6) Front Left and Rear Right |
1436-161 |
US $278.77 |
||
|
21
|
21
0502-606 Piston/seal set(inc. 5) |
0502-606 |
US $94.90 |
||
|
22
|
22
0502-607 Seal set(inc. 5) |
0502-607 |
US $32.27 |
||
|
23
|
23
0502-609 ValveBleed (inc. 5) |
0502-609 |
US $34.29 |
||
|
24
|
24
0502-608 O-ringSet; guide Set |
0502-608 |
US $51.46 |
||
|
25
|
25
0502-960 Bracket assemblySet |
0502-960 |
US $140.37 |
||
|
26
|
26
1436-420 Kit-pad,brake-setSet |
1436-420 |
US $70.66 |
||
|
27
|
27
8408-826 ScrewCap Set |
8408-826 |
US $1.16 |
||
|
28
|
28
1436-422 Kit-caliper,full assy-rhFront Right and Rear Left (inc. 2-9) Front Right |
1436-422 |
US $178.60 |
||
| replacement | |||||
|
28
|
28
2502-574 Kit,caliper,brake-Rh,hp,t117Front Right and Rear Left; (inc. 2-9) Front Right |
2502-574 |
US $202.99 |
||
|
28
|
28
1436-423 Kit-caliper,full assy-lh(inc. 2-9) Front Left and Rear Right |
1436-423 |
US $178.60 |
||
| replacement | |||||
|
28
|
28
2502-575 Kit,caliper,brake-Lh,hp,t117(inc. 2-9) Front Left and Rear Right |
2502-575 |
US $202.99 |
||
|
29
|
29
0502-605 Bracket assembly(inc. 2-9) Front Left and Rear Right |
0502-605 |
US $131.26 |
||
|
30
|
30
8408-821 ScrewCap (inc. 2-9) Front Left and Rear Right |
8408-821 |
US $6 |
||
|
31
|
31
1402-845 HoseBrake (inc. 2-9) Front Left and Rear Right |
1402-845 |
US $293.92 |
||
|
32
|
32
8476-616 ScrewCap (inc. 2-9) Front Left and Rear Right |
8476-616 |
US $2.90 |
||
|
33
|
33
0623-038 Nut w/washer(inc. 2-9) Front Left and Rear Right |
0623-038 |
US $2.15 |
||
|
34
|
34
5639-848 Dot 4 brake fluid - 12 oz12 oz |
5639-848 |
US $102.36 |
||
