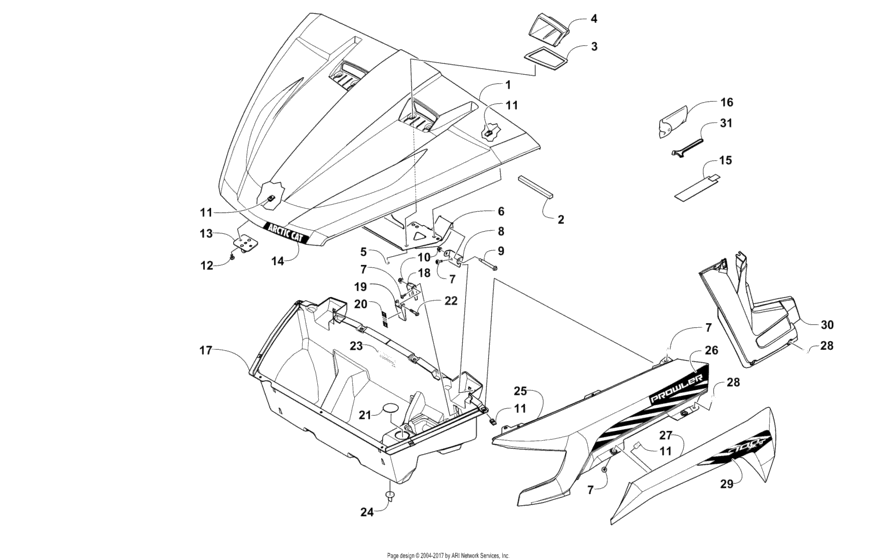

Hood/front Storage And Side Panel Assembly (302239) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2016R2T1PUSX
- Engine Capacity
- 695
- Year
- 2016
- Sales region
- General
- Colour
- Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-975 PANEL,HOOD -GRN (S)Green |
5506-975 |
US $536.38 |
||
|
2
|
2
4406-886 SEAL,HOODGreen |
4406-886 |
US $18.30 |
||
|
3
|
3
5406-014 SEAL,HOOD SCOOP-RHRight |
5406-014 |
US $5.09 |
||
|
3
|
3
5406-015 SEAL,HOOD SCOOP-LHLeft |
5406-015 |
US $5.09 |
||
|
4
|
4
4406-620 HOOD SCOOP, RHRight |
4406-620 |
US $18.99 |
||
|
4
|
4
4406-621 HOOD SCOOP, LHLeft |
4406-621 |
US $16.87 |
||
|
5
|
5
0623-797 ScrewSelf-tapping Left |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
5
|
5
2623-164 Screw, Self-TappingLeft |
2623-164 |
US $7.60 |
||
|
6
|
6
7506-173 HOOD,HINGE-PTD BLKLeft |
7506-173 |
US $179.76 |
||
|
7
|
7
0423-609 ScrewGas tank mount Left |
0423-609 |
US $5.36 |
||
|
8
|
8
4406-828 BRKT,HINGE PIVOTLeft |
4406-828 |
US $4.61 |
||
|
9
|
9
1423-289 SCREW,SHOULDER M6 X 1.0(8D X 60L)Left |
1423-289 |
US $19.48 |
||
|
10
|
10
8427-602 NutLeft |
8427-602 |
US $1.45 |
||
|
11
|
11
0423-577 ClipU-nut Left |
0423-577 |
US $2.90 |
||
|
12
|
12
8477-616 ScrewMachine Left |
8477-616 |
US $4.40 |
||
|
13
|
13
5506-906 HOOK, HOOD LATCH, WELDTLeft |
5506-906 |
US $22.19 |
||
|
14
|
14
4411-768 DECAL,HOOD FRONT-(HDX 700 TAG)Left |
4411-768 |
US $12.62 |
||
|
15
|
15
0707-582 RetainerVelcro; drive belt Left |
0707-582 |
US $18.10 |
||
|
16
|
16
2516-863 Kit,tool-hdxLeft |
2516-863 |
US $68.67 |
||
|
17
|
17
4406-615 BOX,FRONT STORAGEFront |
4406-615 |
US $142.38 |
||
|
18
|
18
4406-696 BRKT,LOCK LEVERFront |
4406-696 |
US $17.69 |
||
| replacement | |||||
|
18
|
18
8506-839 Brkt,lock Lever-Ptd BlkFront |
8506-839 |
US $20 |
||
|
19
|
19
4406-829 LOCK,LEVER-HOODHood |
4406-829 |
US $17.69 |
||
| replacement | |||||
|
19
|
19
8506-840 Lock,lever-Hood-Ptd BlkHood |
8506-840 |
US $20 |
||
|
20
|
20
4411-970 DECAL,HOOD PROPHood |
4411-970 |
US $5.07 |
||
|
21
|
21
0623-600 PlugHood |
0623-600 |
US $6.35 |
||
|
22
|
22
1423-288 SCREW,SHOULDER M6 X 1.0(8D X 35L)Hood |
1423-288 |
US $72.80 |
||
|
23
|
23
4411-553 DECAL,CAUTION LOAD CAPACITY (25LB)Load Capacity (25 lb) |
4411-553 |
US $4.70 |
||
|
24
|
24
0470-442 ValveAir intake Load Capacity (25 lb) |
0470-442 |
US $14.38 |
||
|
25
|
25
5506-936 FENDER, FR RH INNER-BLK (S)Right - Black |
5506-936 |
US $165.09 |
||
|
25
|
25
5506-937 FENDER, FR LH INNER-BLK (S)Left - Black |
5506-937 |
US $187.84 |
||
|
26
|
26
5411-042 DECAL,FENDER INNER RH-(700 XT/850 XT)Side - Right - Green |
5411-042 |
US $33.82 |
||
|
26
|
26
5411-043 DECAL,FENDER INNER LH-(700 XT/850 XT)Side - Left - Green |
5411-043 |
US $33.82 |
||
|
27
|
27
5506-950 FENDER, FR RH OUTER-GRN (S)Right - Green |
5506-950 |
US $170.67 |
||
|
27
|
27
5506-951 FENDER, FR LH OUTER-GRN (S)Left - Green |
5506-951 |
US $170.67 |
||
|
28
|
28
1423-198 SCREW,MAC-TSBWH M6 X 1.0 TRILOBE RIE BLKLeft - Green |
1423-198 |
US $13.40 |
||
|
29
|
29
5411-044 DECAL,FENDER OUTER RH-(700 XT)Right - Green |
5411-044 |
US $18.32 |
||
|
29
|
29
5411-045 DECAL,FENDER OUTER LH-(700 XT)Left - Green |
5411-045 |
US $18.32 |
||
|
30
|
30
4406-610 PANEL,SIDE-FR-RHRight |
4406-610 |
US $49.44 |
||
|
30
|
30
4406-611 PANEL,SIDE-FR-LHLeft |
4406-611 |
US $49.44 |
||
|
31
|
31
0441-587 WrenchSpanner Left |
0441-587 |
US $13.07 |
||
