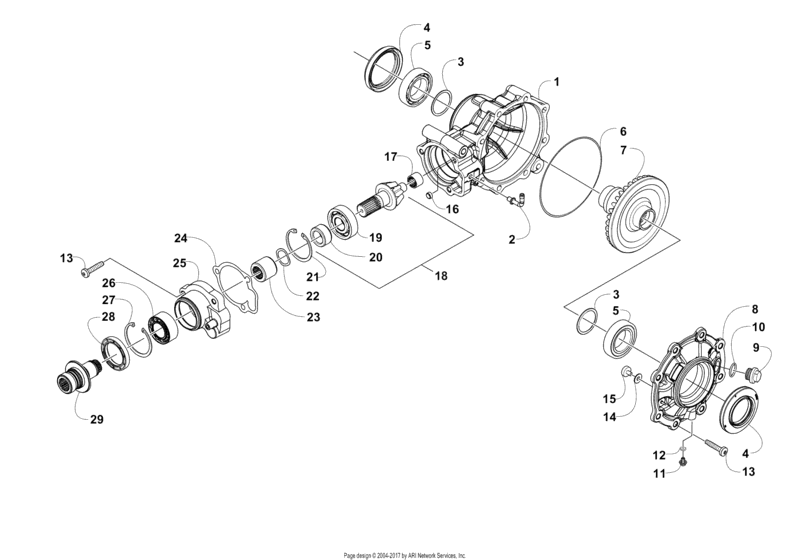

Rear Drive Gearcase Assembly (301319) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2016R2T1PUSX
- Engine Capacity
- 695
- Year
- 2016
- Sales region
- General
- Colour
- Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-
|
-
2502-251 GEARCASE,REAR-ASSY (3.6)No. 1 |
2502-251 |
US $1,428.13 |
||
|
1
|
1
2502-243 Housing, GearcaseNo. 1 |
2502-243 |
US $263.18 |
||
|
2
|
2
2402-162 FITTING,90 DEG BARBNo. 1 |
2402-162 |
US $49.44 |
||
|
3
|
3
0402-405 ShimNo. 1 |
0402-405 |
US $11.47 |
||
|
3
|
3
0402-406 ShimNo. 1 |
0402-406 |
US $11.47 |
||
|
3
|
3
0402-407 ShimNo. 1 |
0402-407 |
US $11.47 |
||
|
3
|
3
0402-408 ShimNo. 1 |
0402-408 |
US $12.93 |
||
|
3
|
3
0402-409 ShimNo. 1 |
0402-409 |
US $11.47 |
||
|
4
|
4
2402-240 SEAL,48X84X9 FKMNo. 1 |
2402-240 |
US $18.30 |
||
|
5
|
5
0402-393 BearingNo. 1 |
0402-393 |
US $18.70 |
||
|
6
|
6
0423-149 O-ringNo. 1 |
0423-149 |
US $18.70 |
||
|
7
|
7
1402-032 Gear36t; ring 36T |
1402-032 |
US $326.26 |
||
|
8
|
8
0502-741 CoverGearcase 36T |
0502-741 |
US $109.63 |
||
|
9
|
9
0402-333 PlugFill (inc. 40) |
0402-333 |
US $14.38 |
||
|
10
|
10
0423-154 O-ringFill plug (inc. 40) |
0423-154 |
US $4.11 |
||
|
11
|
11
1402-210 PlugMagnetic (inc. one No. 34) |
1402-210 |
US $21.60 |
||
|
12
|
12
0423-153 O-ringDrain plug (inc. one No. 34) |
0423-153 |
US $10.28 |
||
|
13
|
13
0423-118 ScrewSelf-tapping (inc. one No. 34) |
0423-118 |
US $6.90 |
||
|
14
|
14
0402-429 Shim(inc. one No. 34) |
0402-429 |
US $11.47 |
||
|
14
|
14
0402-430 Shim(inc. one No. 34) |
0402-430 |
US $14.22 |
||
|
14
|
14
0402-431 Shim(inc. one No. 34) |
0402-431 |
US $14.22 |
||
|
14
|
14
0402-432 Shim(inc. one No. 34) |
0402-432 |
US $12.62 |
||
|
14
|
14
0402-433 Shim(inc. one No. 34) |
0402-433 |
US $14.22 |
||
|
15
|
15
0402-326 ButtonThrust (inc. one No. 34) |
0402-326 |
US $8.21 |
||
|
16
|
16
0402-411 PinDowel (inc. one No. 34) |
0402-411 |
US $8.34 |
||
|
17
|
17
0402-328 BearingNeedle (inc. one No. 34) |
0402-328 |
US $18.70 |
||
|
18
|
18
1502-863 Gear,10 tooth pinion-subassemblyAssembly - 10T | (inc. 27-28) |
1502-863 |
US $195.12 |
||
|
19
|
19
0402-327 BearingAssembly - 10T | (inc. 27-28) |
0402-327 |
US $27.22 |
||
|
20
|
20
1402-977 Collar,retainingAssembly - 10T | (inc. 27-28) |
1402-977 |
US $56.51 |
||
|
21
|
21
1423-067 Ring,retaining-intl-65mm (dho-62 st zdl)Assembly - 10T | (inc. 27-28) |
1423-067 |
US $2.88 |
||
|
22
|
22
0402-982 WasherWave Assembly - 10T | (inc. 27-28) |
0402-982 |
US $9.44 |
||
|
23
|
23
0402-981 CollarShaft Assembly - 10T | (inc. 27-28) |
0402-981 |
US $54.50 |
||
|
24
|
24
0402-947 GasketFlange Assembly - 10T | (inc. 27-28) |
0402-947 |
US $4.11 |
||
|
25
|
25
0502-529 HousingPinion Assembly - 10T | (inc. 27-28) |
0502-529 |
US $225.23 |
||
|
26
|
26
1402-043 BearingAssembly - 10T | (inc. 27-28) |
1402-043 |
US $73.68 |
||
|
27
|
27
0423-423 RingRetaining Assembly - 10T | (inc. 27-28) |
0423-423 |
US $5.74 |
||
|
28
|
28
1402-011 SealAssembly - 10T | (inc. 27-28) |
1402-011 |
US $10.05 |
||
|
29
|
29
2502-156 SHAFT,INPUT-ASSEMBLYAssembly - 10T | (inc. 27-28) |
2502-156 |
US $99.95 |
