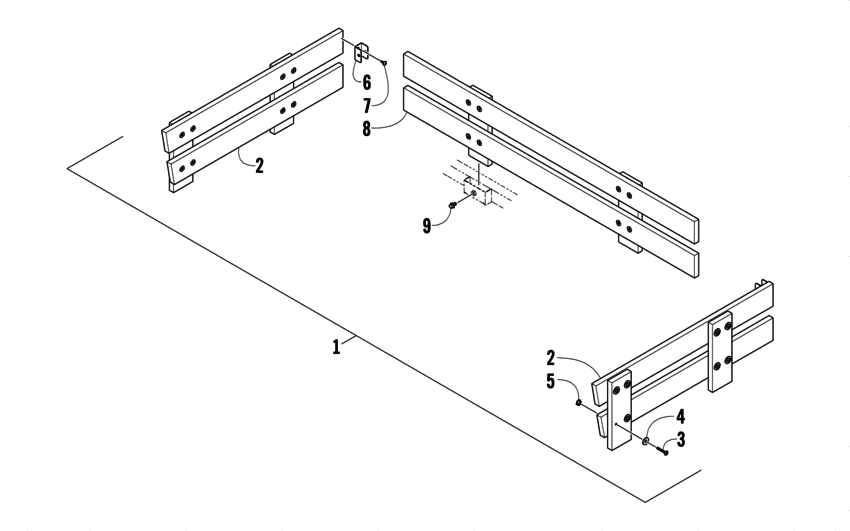

Guarail assembly (RD-) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P3T4EUSQ
- Engine Capacity
- 695
- Year
- 2009
- Sales region
- General
- Colour
- Black
- Model
- Prowler 700
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5991-630 Guard-railAssembly inc. 2-8 ; |
5991-630 |
US $255.19 |
||
| replacement | |||||
|
1
|
1
1436-315
Kit
inc. 2-8 ; |
1436-315 |
— | ||
|
2
|
2
2516-154
Guard-rail
inc. 3-7 ; |
2516-154 |
— | ||
|
2
|
2
2516-155
Guard-rail
inc. 3-7 ; |
2516-155 |
— | ||
|
3
|
3
8468-640 ScrewMachine |
8468-640 |
US $8.80 |
||
|
4
|
4
8450-133 Washer |
8450-133 |
US $3.44 |
||
|
5
|
5
0423-438 T-nut w/teeth |
0423-438 |
US $29.24 |
||
|
6
|
6
2406-999
Guide
|
2406-999 |
— | ||
|
7
|
7
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
7
|
7
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
8
|
8
2516-145
Guard-rail
inc. 3-5 ; |
2516-145 |
— | ||
|
9
|
9
8408-825 ScrewCap |
8408-825 |
US $1.62 |
||
