Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0470-877 Cover Air intake 11.5 in.	0470-877	US $83.07
	replacement
1	1 147-0221 Top,airbox-Fab (Atv) 11.5 in.	147-0221	US $94.90
2	2 0470-560 Screen Air filter 11.5 in.	0470-560	US $54.50
3	3 0470-558 Filter Air 11.5 in.	0470-558	US $46.42
4	4 0470-728 Housing Air intake 11.5 in.	0470-728	US $90.86
5	5 0423-455 Clip Spring 11.5 in.	0423-455	US $18.68
6	6 0470-442 Valve Air intake 11.5 in.	0470-442	US $14.38
7	7 0423-045 Clamp Spring; hose 11.5 in.	0423-045	US $2.40
8	8 0410-172 Hose, Vent Vent Crankcase	0410-172	US $27.22
9	9 0423-766 Cap Drain Crankcase	0423-766	US $2.88
10	10 1623-287 Clamp Hose Crankcase	1623-287	US $4.67
11	11 0430-055 Sensor Air temperature (inc. 13)	0430-055	US $34.29
12	12 5507-224 O-ring (inc. 13)	5507-224	US $8.43
13	13 0423-342 Screw Self-tapping Tapping	0423-342	US $2.15
14	14 2506-651 Bracket Support Tapping	2506-651	US $31.26
15	15 0623-784 Screw Tapping	0623-784	—
	replacement
15	15 2623-163 Screw, Self-Tapping Tapping	2623-163	US $9.05
16	16 0423-554 Clamp Boot Tapping	0423-554	US $21.60
17	17 0470-511 Boot Carburetor Tapping	0470-511	US $78.74
18	18 0423-019 Clamp Tapping	0423-019	US $3.33
19	19 0413-098 Boot Air out Tapping	0413-098	US $18.30
20	20 0513-028 Duct Air-in Tapping	0513-028	US $55.50
21	21 0413-219 Duct Intake Tapping	0413-219	US $47.92
22	22 0413-218 Duct Lower; intake Tapping	0413-218	US $52.04
23	23 0413-049 Boot Front; duct Belt	0413-049	US $36.30
24	24 0423-550 Clamp Boot Belt	0423-550	US $3.54
25	25 0413-109 Boot Air-out Belt	0413-109	US $23.76
26	26 0413-220 Duct Clutch; air-out Clutch	0413-220	US $56.15
27	27 0413-226 Duct Air-out Clutch	0413-226	US $43.38
28	28 0470-834 Filter Intake Clutch	0470-834	US $50.45

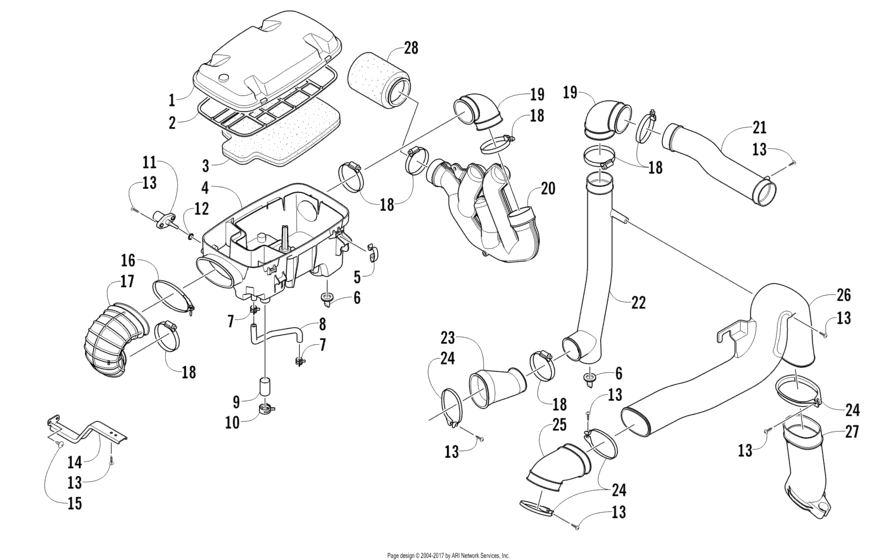

Air Intake Assembly (93966) Diagram Arctic Cat PROWLER/ HDX Cat Green General 16809790-861714

Air Intake Assembly (93966) Diagram Arctic Cat PROWLER/ HDX Cat Green General 16809790-861714
