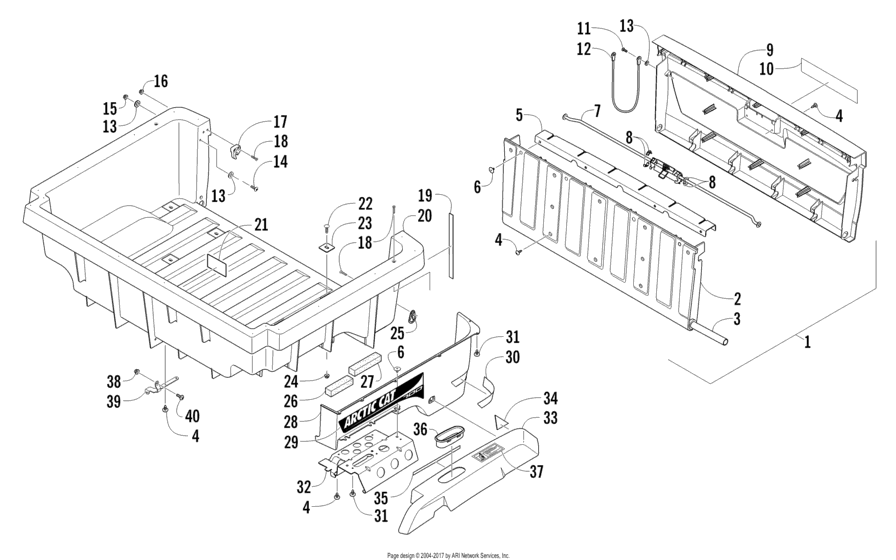

Cargo Box And Tailgate Assembly (93992) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2011P3T1PUSA
- Engine Capacity
- 695
- Year
- 2011
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-205 Complete tailgate assemblyBlack | (inc. 2-9) |
2506-205 |
US $358.58 |
||
|
2
|
2
2406-365 PanelInner; tailgate Inner |
2406-365 |
US $160.58 |
||
|
3
|
3
1406-927 ShaftTailgate; pivot Tailgate |
1406-927 |
US $31.26 |
||
|
4
|
4
0623-784
Screw
Tailgate |
0623-784 |
— | ||
| replacement | |||||
|
4
|
4
2623-163 Screw, Self-TappingTailgate |
2623-163 |
US $9.05 |
||
|
5
|
5
1506-704 BraceTailgate Tailgate |
1506-704 |
US $69.65 |
||
|
6
|
6
0423-101 ScrewBody Tailgate |
0423-101 |
US $14.40 |
||
|
7
|
7
2506-056 LatchAssembly; tailgate Assembly |
2506-056 |
US $129.25 |
||
|
8
|
8
1406-706 BushingAssembly |
1406-706 |
US $8.36 |
||
|
9
|
9
2406-369 PanelOuter; tailgate Outer - Black |
2406-369 |
US $182.30 |
||
|
10
|
10
2411-419 Decal,graphic-tailgate am greenOuter - Black |
2411-419 |
US $68.49 |
||
|
11
|
11
8476-625 ScrewCap Outer - Black |
8476-625 |
US $12 |
||
|
12
|
12
0487-045 CableTailgate Outer - Black |
0487-045 |
US $18.70 |
||
|
13
|
13
8050-217 WasherOuter - Black |
8050-217 |
US $3 |
||
|
14
|
14
8476-620 ScrewCap Outer - Black |
8476-620 |
US $2.95 |
||
|
15
|
15
0624-250 NutStarter relay Outer - Black |
0624-250 |
US $3.52 |
||
|
16
|
16
8424-602 NutOuter - Black |
8424-602 |
US $1.72 |
||
|
17
|
17
2506-664 StrikerRight; tailgate Right |
2506-664 |
US $20.59 |
||
|
17
|
17
2506-665 Striker,Left; tailgateLeft; tailgate Left |
2506-665 |
US $18.70 |
||
|
18
|
18
8474-630 ScrewMachine Left |
8474-630 |
US $8.25 |
||
|
19
|
19
0417-006 StripFoam Left |
0417-006 |
US $5.86 |
||
|
20
|
20
2406-916 BoxCargo Black |
2406-916 |
US $822.97 |
||
|
21
|
21
1411-119 DecalCargo; warning Cargo Box |
1411-119 |
US $16.98 |
||
|
22
|
22
0423-623 BoltCarriage Cargo Box |
0423-623 |
US $9.04 |
||
|
23
|
23
1506-933 PlateRetainer Cargo Box |
1506-933 |
US $14.22 |
||
|
24
|
24
8424-802 NutCargo Box |
8424-802 |
US $0.74 |
||
|
25
|
25
1506-539 BracketTailgate; mounting Cargo Box |
1506-539 |
US $21.60 |
||
|
26
|
26
0417-011 FoamCargo box Cargo Box |
0417-011 |
US $8.24 |
||
|
27
|
27
0417-010 FoamCargo box Cargo Box |
0417-010 |
US $9.15 |
||
|
28
|
28
1406-762 PanelRight; box Right - Black |
1406-762 |
US $59.98 |
||
|
28
|
28
1406-761 PanelLeft; box Left - Black |
1406-761 |
US $69.65 |
||
|
29
|
29
2411-422 Decal, box side-am green-rhRight |
2411-422 |
US $18.32 |
||
|
29
|
29
2411-423 Decal, box side-am green-lhLeft |
2411-423 |
US $18.32 |
||
|
30
|
30
1411-128 DecalRear - right; reflector Red |
1411-128 |
US $14.38 |
||
|
30
|
30
1411-129 DecalRear - left; reflector Left - Red |
1411-129 |
US $14.38 |
||
|
31
|
31
0423-342 ScrewSelf-tapping Tapping |
0423-342 |
US $2.15 |
||
|
32
|
32
1506-776 BracketRight; fender support Right |
1506-776 |
US $107.25 |
||
|
32
|
32
2506-927 BracketLeft; fender support Left |
2506-927 |
US $101.23 |
||
|
33
|
33
2516-188 FenderAssembly - upper right; rear Assembly - Upper Right Mt Cat Grn | (inc. 34-36) |
2516-188 |
US $131.68 |
||
|
33
|
33
2516-189 FenderAssembly - upper left; rear Assembly - Upper Left Mt Cat Grn | (inc. 34-36) |
2516-189 |
US $131.68 |
||
|
34
|
34
0417-008 PadFoam Assembly - Upper Left Mt Cat Grn | (inc. 34-36) |
0417-008 |
US $3.52 |
||
|
35
|
35
0417-007 StripFoam Assembly - Upper Left Mt Cat Grn | (inc. 34-36) |
0417-007 |
US $22.12 |
||
|
36
|
36
2516-037 RingTrim Assembly - Upper Left Mt Cat Grn | (inc. 34-36) |
2516-037 |
US $8.42 |
||
|
37
|
37
1411-120 DecalPinch point; warning Pinch Point |
1411-120 |
US $5.07 |
||
|
38
|
38
0423-540 NutLock Pinch Point |
0423-540 |
US $3.48 |
||
|
39
|
39
2516-178 BracketCargo box latch Pinch Point |
2516-178 |
US $21.13 |
||
|
40
|
40
8476-616 ScrewCap Pinch Point |
8476-616 |
US $2.90 |
||
