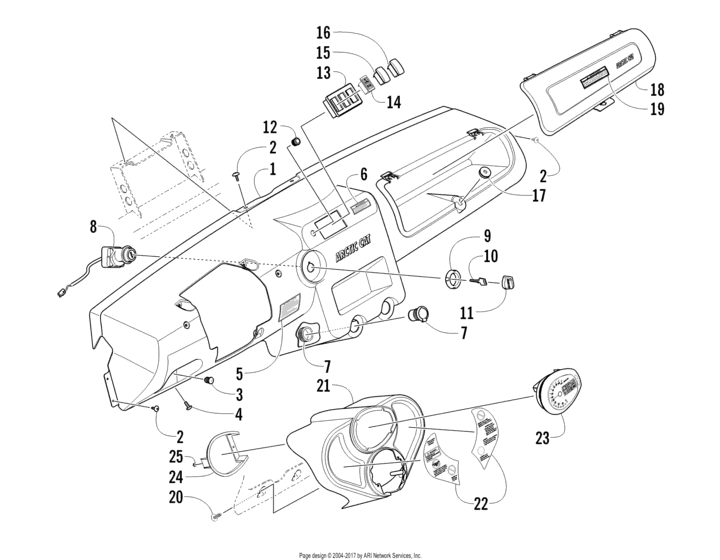

Dash Assembly (93962) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2011P3T1PUSA
- Engine Capacity
- 695
- Year
- 2011
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4506-356 Panel,dash-rtd(inc. 39) |
4506-356 |
US $188.29 |
||
|
2
|
2
0623-784
Screw
(inc. 39) |
0623-784 |
— | ||
| replacement | |||||
|
2
|
2
2623-163 Screw, Self-Tapping(inc. 39) |
2623-163 |
US $9.05 |
||
|
3
|
3
1623-697 Plug(inc. 39) |
1623-697 |
US $0.70 |
||
|
4
|
4
0423-419 ScrewMachine (inc. 39) |
0423-419 |
US $6.70 |
||
|
5
|
5
1411-904 DecalStarting (inc. 39) |
1411-904 |
US $12.70 |
||
|
6
|
6
1411-124 DecalDifferential lock; warning Differential Lock |
1411-124 |
US $4.70 |
||
|
7
|
7
0641-897 Outlet12v; accessory 12V |
0641-897 |
US $26.21 |
||
|
8
|
8
0430-089 SwitchIgnition (inc. 8-10) |
0430-089 |
US $54.78 |
||
| replacement | |||||
|
8
|
8
0609-936 SWITCH,IGNITION-W/KEY(inc. 8-10) |
0609-936 |
US $47.42 |
||
|
9
|
9
0430-050 NutIgnition switch; flange (inc. 8-10) |
0430-050 |
US $2.56 |
||
|
10
|
10
0430-042 KeyBlank; ignition Y Series - Left-Side Cut |
0430-042 |
US $8.43 |
||
|
10
|
10
0430-043 KeyBlank; ignition Z Series - Right-Side Cut |
0430-043 |
US $8.43 |
||
|
11
|
11
0430-054 Cover, keyKey Z Series - Right-Side Cut |
0430-054 |
US $17.09 |
||
|
12
|
12
1602-917 PlugPlastic Z Series - Right-Side Cut |
1602-917 |
US $2.82 |
||
|
13
|
13
0409-069 PanelSwitch-mount Z Series - Right-Side Cut |
0409-069 |
US $23.76 |
||
|
14
|
14
0420-117 Light,indicator-10s dual sb/pZ Series - Right-Side Cut |
0420-117 |
US $70.91 |
||
|
15
|
15
0409-067 SwitchLights Z Series - Right-Side Cut |
0409-067 |
US $59.55 |
||
|
16
|
16
0409-061 Switch2wd/4wd/differential lock Z Series - Right-Side Cut |
0409-061 |
US $36.30 |
||
|
17
|
17
0423-541 GrommetGlove box; latch Glove Box |
0423-541 |
US $4.22 |
||
|
18
|
18
4506-420 Cover,glovebox-blk w/decalBlack - w/Decal |
4506-420 |
US $32.27 |
||
|
19
|
19
2411-512 Decal,warning-passenger (prowler)Passenger |
2411-512 |
US $18.99 |
||
|
20
|
20
0423-342 ScrewSelf-tapping Tapping |
0423-342 |
US $2.15 |
||
|
21
|
21
2406-539 PodInstrument Tapping |
2406-539 |
US $117.14 |
||
|
22
|
22
1411-642 DecalDash - right; warning Dash - Right |
1411-642 |
US $16.87 |
||
|
22
|
22
1411-643 DecalDash - left; warning Dash - Left |
1411-643 |
US $16.87 |
||
|
23
|
23
0520-112 Gauge,lcd (011 700 xtx ps)Dash - Left |
0520-112 |
US $579.82 |
||
|
24
|
24
0420-065 ClampPlastic Dash - Left |
0420-065 |
US $5.70 |
||
|
25
|
25
0423-493 Nut w/washerDash - Left |
0423-493 |
US $2.15 |
||
