Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1603-889 Retainer Spring (inc. 40)	1603-889	from US $13.42
2	2 0503-469 Spring,coil-ptd white Painted - White	0503-469	US $73.04
3	3 0403-395 CAM,ADJUSTER-SPRING Spring	0403-395	US $21.60
4	4 0403-147 Shock absorber Front (inc. 5-6)	0403-147	US $129.25
5	5 0603-955 Bushing Shock absorber (inc. 5-6)	0603-955	US $8.43
6	6 1603-209 Sleeve Shock (inc. 5-6)	1603-209	US $1.65
7	7 0404-116 Sleeve Shock (inc. 5-6)	0404-116	US $3.73
8	8 8409-040 Screw Cap (inc. 5-6)	8409-040	US $10.65
9	9 8428-002 Nut Lock (inc. 5-6)	8428-002	US $27.20
10	10 0503-416 A-arm Upper right Right - Black - Assembly \| (inc. 9-12)	0503-416	US $270.69
10	10 0503-417 A-arm Upper left Left - Black - Assembly \| (inc. 9-12)	0503-417	US $270.69
11	11 0403-289 Bushing Left - Black - Assembly \| (inc. 9-12)	0403-289	US $5.85
12	12 0403-439 Axle Left - Black - Assembly \| (inc. 9-12)	0403-439	US $19.54
13	13 0423-009 Clip Ball joint Left - Black - Assembly \| (inc. 9-12)	0423-009	US $1.81
14	14 0405-483 Balljoint-assy Left - Black - Assembly \| (inc. 9-12)	0405-483	US $55.50
15	15 0423-946 Screw Self-tapping Left - Black - Assembly \| (inc. 9-12)	0423-946	US $3.52
16	16 1502-594 Clamp Routing Left - Black - Assembly \| (inc. 9-12)	1502-594	US $5.44
17	17 0423-723 Screw Cap Left - Black - Assembly \| (inc. 9-12)	0423-723	US $18.30
18	18 8409-075 Screw Cap Left - Black - Assembly \| (inc. 9-12)	8409-075	US $2.56
19	19 0503-376 A-arm Lower right Black \| (inc. 17-18 and two No. 11-12)	0503-376	US $270.69
19	19 0503-377 A-arm Lower left Black \| (inc. 17-18 and two No. 11-12)	0503-377	US $270.69
20	20 0403-409 bushing, A-ar Black \| (inc. 17-18 and two No. 11-12)	0403-409	US $12.80
21	21 0403-438 COLLAR,SUSPENSION BUSHING-A-ARM Black \| (inc. 17-18 and two No. 11-12)	0403-438	US $6.67
22	22 1406-034 Guard Axle - right; boot Right - Black	1406-034	US $39.34
22	22 1406-035 Guard Axle - left; boot Left - Black	1406-035	US $39.34
23	23 0423-545 Screw Body Left - Black	0423-545	US $7.50
24	24 1502-939 Halfshaft,frnt-lck-db cplr-lg (inc. 20-23)	1502-939	US $455.57
24	24 1502-940 Kit,halfshaft (1502-803) (inc. 20-23)	1502-940	US $455.57
25	25 2436-111 KIT,REPAIR-CV BOOT (inc. 22)	2436-111	US $137.88
26	26 1441-988 Circlip,halfshaft-internal (inc. 22)	1441-988	US $4.60
27	27 1402-885 Pin,transfer,short-coupler axle (inc. 22)	1402-885	US $10
28	28 1402-890 Clip Retaining (inc. 22)	1402-890	US $13.60
29	29 8409-030 Screw Cap (inc. 22)	8409-030	US $16.65
30	30 0505-580 Knuckle Assembly - right Assembly - Right \| (inc. one No. 25-26)	0505-580	US $254.28
30	30 0505-581 Knuckle Assembly - left Assembly - Left \| (inc. one No. 25-26)	0505-581	US $220.80
31	31 1402-809 Bearing Assembly - Left \| (inc. one No. 25-26)	1402-809	US $39.89
32	32 0423-423 Ring Retaining Assembly - Left \| (inc. one No. 25-26)	0423-423	US $5.74

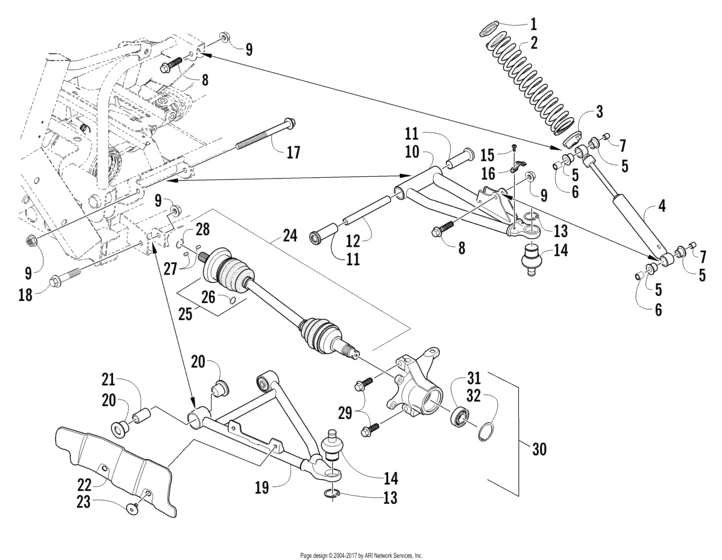

Front Suspension Assembly (93238) Diagram Arctic Cat PROWLER/ HDX Cat Green General 16809808-861714
