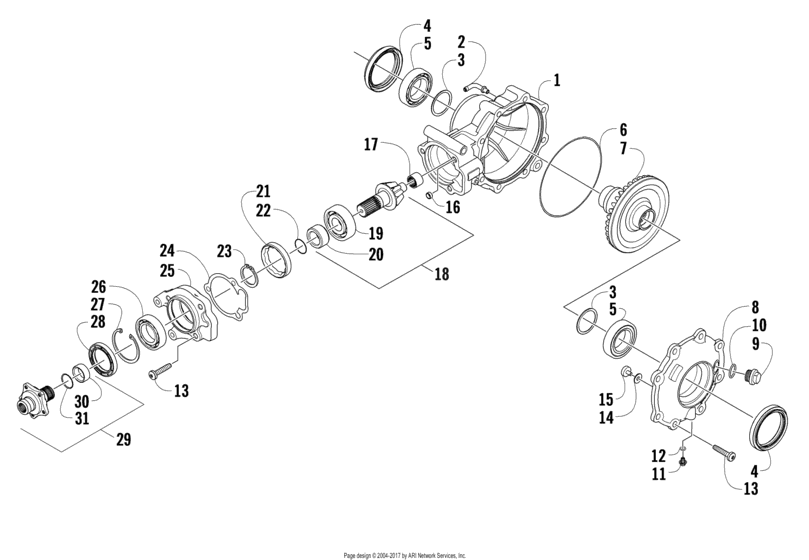

Rear Drive Gearcase Assembly (93970) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2011P3T1PUSA
- Engine Capacity
- 695
- Year
- 2011
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
1502-625 Gearcase,rear(3.6-plr)Set |
1502-625 |
US $1,123.15 |
||
|
1
|
1
0502-548 HousingGearcase Set |
0502-548 |
US $156.27 |
||
|
2
|
2
1402-442 FittingSet |
1402-442 |
US $19.20 |
||
|
3
|
3
0402-405 ShimSet |
0402-405 |
US $11.47 |
||
|
3
|
3
0402-406 ShimSet |
0402-406 |
US $11.47 |
||
|
3
|
3
0402-407 ShimSet |
0402-407 |
US $11.47 |
||
|
3
|
3
0402-408 ShimSet |
0402-408 |
US $12.93 |
||
|
3
|
3
0402-409 ShimSet |
0402-409 |
US $11.47 |
||
|
4
|
4
2402-150 SEAL,GEARCASE-HRSet |
2402-150 |
US $20.77 |
||
|
5
|
5
0402-393 BearingSet |
0402-393 |
US $18.70 |
||
|
6
|
6
0423-149 O-ringSet |
0423-149 |
US $18.70 |
||
|
7
|
7
1402-032 Gear36t; ring 36T |
1402-032 |
US $326.26 |
||
|
8
|
8
0502-741 CoverGearcase 36T |
0502-741 |
US $109.63 |
||
|
9
|
9
0402-333 PlugFill (inc. 40) |
0402-333 |
US $14.38 |
||
|
10
|
10
0423-154 O-ringFill plug (inc. 40) |
0423-154 |
US $4.11 |
||
|
11
|
11
1402-210 PlugMagnetic (inc. one No. 34) |
1402-210 |
US $21.60 |
||
|
12
|
12
0423-153 O-ringDrain plug (inc. one No. 34) |
0423-153 |
US $10.28 |
||
|
13
|
13
0423-118 ScrewSelf-tapping (inc. one No. 34) |
0423-118 |
US $6.90 |
||
|
14
|
14
0402-429 Shim(inc. one No. 34) |
0402-429 |
US $11.47 |
||
|
14
|
14
0402-430 Shim(inc. one No. 34) |
0402-430 |
US $14.22 |
||
|
14
|
14
0402-431 Shim(inc. one No. 34) |
0402-431 |
US $14.22 |
||
|
14
|
14
0402-432 Shim(inc. one No. 34) |
0402-432 |
US $12.62 |
||
|
14
|
14
0402-433 Shim(inc. one No. 34) |
0402-433 |
US $14.22 |
||
|
15
|
15
0402-326 ButtonThrust (inc. one No. 34) |
0402-326 |
US $8.21 |
||
|
16
|
16
0402-411 PinDowel (inc. one No. 34) |
0402-411 |
US $8.34 |
||
|
17
|
17
0402-328 BearingNeedle (inc. one No. 34) |
0402-328 |
US $18.70 |
||
|
18
|
18
0502-783 GearAssembly - 10t; pinion Assembly - 10T | (inc. 25-26) |
0502-783 |
US $205.02 |
||
|
19
|
19
0402-327 BearingAssembly - 10T | (inc. 25-26) |
0402-327 |
US $27.22 |
||
|
20
|
20
0402-336 CollarRetaining Assembly - 10T | (inc. 25-26) |
0402-336 |
US $52.04 |
||
|
21
|
21
0402-357
Collar
Assembly - 10T | (inc. 25-26) |
0402-357 |
— | ||
|
22
|
22
0423-633 O-ringAssembly - 10T | (inc. 25-26) |
0423-633 |
US $2.50 |
||
|
23
|
23
0423-546 RingRetaining Assembly - 10T | (inc. 25-26) |
0423-546 |
US $24.45 |
||
|
24
|
24
0402-947 GasketFlange Assembly - 10T | (inc. 25-26) |
0402-947 |
US $4.11 |
||
|
25
|
25
0502-746 HousingPinion Assembly - 10T | (inc. 25-26) |
0502-746 |
US $170.67 |
||
|
26
|
26
0402-324 BearingAssembly - 10T | (inc. 25-26) |
0402-324 |
US $36.30 |
||
|
27
|
27
0402-347 RingRetaining Assembly - 10T | (inc. 25-26) |
0402-347 |
US $6.42 |
||
|
28
|
28
1402-314 SealAssembly - 10T | (inc. 25-26) |
1402-314 |
US $41.36 |
||
|
29
|
29
0502-766 ShaftAssembly; input Assembly | (inc. 30-31) |
0502-766 |
US $150.46 |
||
|
30
|
30
1402-345
Sleeve
Assembly | (inc. 30-31) |
1402-345 |
— | ||
|
31
|
31
0423-547 O-ringAssembly | (inc. 30-31) |
0423-547 |
US $1.35 |
