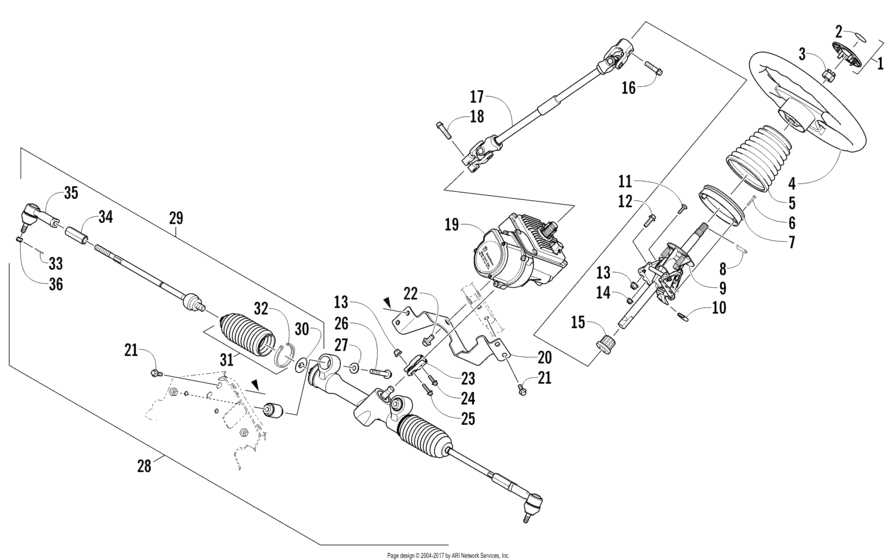

Steering Assembly (93963) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2011P3T1PUSA
- Engine Capacity
- 695
- Year
- 2011
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0505-690 Cap,steering wheel-w/decal(inc. 2) |
0505-690 |
US $17.25 |
||
|
2
|
2
1411-798 DecalAircat (inc. 2) |
1411-798 |
US $12.18 |
||
|
3
|
3
0423-884 Nut(inc. 2) |
0423-884 |
US $2.98 |
||
|
4
|
4
0405-398 Wheel,steering-overmolded(inc. 2) |
0405-398 |
US $108.03 |
||
|
5
|
5
0405-339 Boot(inc. 2) |
0405-339 |
US $56.15 |
||
|
6
|
6
0423-743 ScrewSelf-tapping (inc. 2) |
0423-743 |
US $0.24 |
||
|
7
|
7
0405-258 Support(inc. 2) |
0405-258 |
US $12.60 |
||
|
8
|
8
1423-045 Clip,steering wheel(inc. 2) |
1423-045 |
US $3.02 |
||
|
9
|
9
0505-886 MECHANISM, TILT (YELLOW ZINC SHAFT)(inc. 2) |
0505-886 |
US $394.94 |
||
|
10
|
10
2406-590 CapTilt lever (inc. 2) |
2406-590 |
US $0.61 |
||
|
11
|
11
8476-620 ScrewCap (inc. 2) |
8476-620 |
US $2.95 |
||
|
12
|
12
8408-825 ScrewCap (inc. 2) |
8408-825 |
US $1.62 |
||
|
13
|
13
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock (inc. 2) |
8427-802 |
US $0.72 |
||
|
14
|
14
8427-602 Nut(inc. 2) |
8427-602 |
US $1.45 |
||
|
15
|
15
0505-730 Bushing,steering (3.4 t flange)(Up to VIN: 301735) |
0505-730 |
US $28.44 |
||
|
15
|
15
0405-155 BushingSteering (Up to VIN: 301735) |
0405-155 |
US $22.94 |
||
|
16
|
16
1423-047 Bolt,pinch (m10 x 1.25 w/ patch)-silv(Up to VIN: 301735) |
1423-047 |
US $34.18 |
||
|
17
|
17
0405-379 Shaft, eps lower steering-assyAssembly |
0405-379 |
US $324.22 |
||
|
18
|
18
1423-044 Screw,cap-hfh m6x1.0x30 cl10.9 silvAssembly |
1423-044 |
US $14.01 |
||
|
19
|
19
0505-855 KIT,EPS ASSY-G2D (013 XTX/HDX)Assembly |
0505-855 |
US $2,549.60 |
||
| replacement | |||||
|
19
|
19
0505-913 EPS ASSY-G2D (013 XTX/HDX)Assembly |
0505-913 |
US $2,549.60 |
||
|
20
|
20
4506-152 Bracket,eps mount-painted blkAssembly |
4506-152 |
US $36.96 |
||
|
21
|
21
8408-816 ScrewCap Assembly |
8408-816 |
US $4.40 |
||
|
22
|
22
8409-020 ScrewCap Assembly |
8409-020 |
US $7.44 |
||
|
23
|
23
0405-388 Steering, couplerAssembly |
0405-388 |
US $86.32 |
||
|
24
|
24
1423-052 Screw,cap-hfh m6x1.0x25 cl10.9 org blkAssembly |
1423-052 |
US $8.10 |
||
|
25
|
25
1423-053 Screw,cap-hfh m8x1.25x30 cl10.9 blkAssembly |
1423-053 |
US $11.76 |
||
|
26
|
26
8408-070 Screw (M10X1.25X70)Cap Assembly |
8408-070 |
US $2.94 |
||
|
27
|
27
0623-728 WasherAssembly |
0623-728 |
US $20.30 |
||
|
28
|
28
0505-689 Steering assy kit-rack and pinion(inc. 31-37) |
0505-689 |
US $632.35 |
||
|
29
|
29
0505-719 Tie rod kit,inner-w/ rod endInner - w/Rod End | (inc. 32 and 34-37) |
0505-719 |
US $129.25 |
||
|
30
|
30
0405-428 Plate,lock-steering rackInner - w/Rod End | (inc. 32 and 34-37) |
0405-428 |
US $5.28 |
||
|
31
|
31
0505-745 Boot kit,rack and pinion(inc. 34-35) |
0505-745 |
US $41.36 |
||
|
32
|
32
0123-903 TieCable 11.5 in. |
0123-903 |
US $7.40 |
||
|
33
|
33
0623-175 PinCotter 11.5 in. |
0623-175 |
US $2.95 |
||
|
34
|
34
0505-744 Nut,jam-hex, kit- z&y (m12 x 1.5 x 72 l)Hex, Kit |
0505-744 |
US $18.20 |
||
|
35
|
35
0505-743 Rod end kit-steering rackHex, Kit |
0505-743 |
US $50.45 |
||
|
36
|
36
0423-072 NutHex castle Hex, Kit |
0423-072 |
US $3.63 |
||
