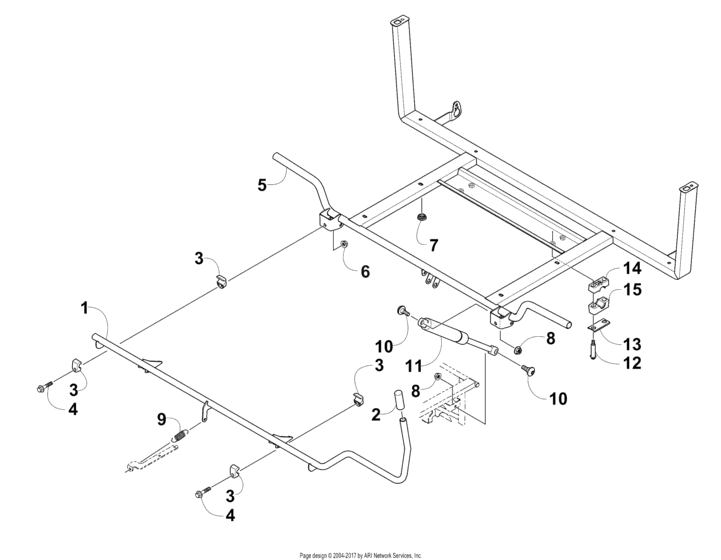

Tilt Frame Assembly (92466) Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2011P3T1PUSA
- Engine Capacity
- 695
- Year
- 2011
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-919 RodCargo box latch Fuel Injector |
2506-919 |
US $142.38 |
||
|
2
|
2
1406-736 GripLatch Fuel Injector |
1406-736 |
US $5.42 |
||
|
3
|
3
1406-674 BushingPivot Fuel Injector |
1406-674 |
US $10.96 |
||
|
4
|
4
8408-840 ScrewCap Fuel Injector |
8408-840 |
US $1.62 |
||
|
5
|
5
2506-197 FrameBox Fuel Injector |
2506-197 |
US $486.68 |
||
|
6
|
6
8424-802 NutFuel Injector |
8424-802 |
US $0.74 |
||
|
7
|
7
0423-628 GrommetFuel Injector |
0423-628 |
US $10.88 |
||
|
8
|
8
8427-602 NutFuel Injector |
8427-602 |
US $1.45 |
||
|
9
|
9
2416-086 SpringFuel Injector |
2416-086 |
US $5.64 |
||
|
10
|
10
0423-356 ScrewShoulder Fuel Injector |
0423-356 |
US $11.92 |
||
|
11
|
11
2506-194 SupportLift Fuel Injector |
2506-194 |
US $73.68 |
||
|
12
|
12
0423-505 ScrewShoulder Fuel Injector |
0423-505 |
US $4.80 |
||
|
13
|
13
0405-166 CapHousing Fuel Injector |
0405-166 |
US $39.34 |
||
|
14
|
14
0405-139 HousingUpper Rear |
0405-139 |
US $14.02 |
||
|
15
|
15
0405-138 HousingLower Front |
0405-138 |
US $12.27 |
