	Description	OEM Part #	Price
	0502-737 Gearcase Front	0502-737	US $2,007.36
1	1 0502-548 Housing Gearcase	0502-548	US $156.27
2	2 0402-394 Seal	0402-394	US $21.77
	replacement
2	2 2402-150 SEAL,GEARCASE-HR	2402-150	US $20.77
3	3 1402-442 Fitting	1402-442	US $19.20
4	4 0402-393 Bearing	0402-393	US $18.70
5	5 0402-402 Shim	0402-402	—
5	5 0402-403 Shim	0402-403	—
5	5 0402-404 Shim	0402-404	—
6	6 0502-650 Gear Assembly - 36t; front	0502-650	US $686.48
	replacement
6	6 0502-850 Gear 36t; ring	0502-850	US $772.78
7	7 0423-149 O-ring	0423-149	US $18.70
8	8 1402-077 Shim	1402-077	US $36.30
8	8 1402-078 Shim	1402-078	US $36.30
8	8 1402-074 Shim	1402-074	US $36.30
8	8 1402-075 Shim	1402-075	US $36.30
8	8 1402-076 Shim	1402-076	US $36.30
9	9 0502-736 Cover Gearcase inc. one No. 2 and 10-25 ;	0502-736	US $642.46
10	10 1402-053 Bearing	1402-053	US $125.22
11	11 0502-413 Flange Bearing	0502-413	US $120.16
12	12 1402-079 Pin Parallel	1402-079	US $1.83
13	13 1402-042 Collar Sliding	1402-042	US $117.14
14	14 1402-054 Fork	1402-054	US $81.78
15	15 1402-058 Ring Retaining	1402-058	US $11.06
16	16 1402-057 Spring	1402-057	US $23.76
17	17 1402-055 Shaft Lock	1402-055	US $43.38
18	18 1402-063 Spring	1402-063	US $4.32
19	19 0402-419 Switch Indicator	0402-419	US $69.65
20	20 0423-133 O-ring	0423-133	US $8.21
21	21 1402-210 Plug Magnetic inc. 22 ;	1402-210	US $21.60
22	22 0423-153 O-ring Drain plug	0423-153	US $10.28
23	23 0423-132 Washer	0423-132	US $2.14
24	24 0423-424 Ring Retaining	0423-424	US $6.27
25	25 1402-056 Seal	1402-056	US $21.60
26	26 0423-118 Screw Self-tapping	0423-118	US $6.90
27	27 0402-333 Plug Fill inc. 28 ;	0402-333	US $14.38
28	28 0423-154 O-ring Fill plug	0423-154	US $4.11
29	29 0402-328 Bearing Needle	0402-328	US $18.70
30	30 0502-649 Gear Assembly - 9t; pinion inc. 31-32 ;	0502-649	US $205.02
31	31 0402-327 Bearing	0402-327	US $27.22
32	32 0402-336 Collar Retaining	0402-336	US $52.04
33	33 0402-357 Collar	0402-357	—
34	34 0402-413 Coupler Drive	0402-413	US $66.61
35	35 0423-417 Ring Retaining	0423-417	US $9.54
36	36 0402-947 Gasket Flange	0402-947	US $4.11
37	37 0402-411 Pin Dowel	0402-411	US $8.34
38	38 0502-952 Housing Pinion	0502-952	US $182.30
	replacement
38	38 0502-528 Housing Pinion	0502-528	US $205.02
39	39 1402-043 Bearing	1402-043	US $73.68
40	40 0423-423 Ring Retaining	0423-423	US $5.74
41	41 0502-347 Bracket Actuator	0502-347	US $31.26
42	42 1402-011 Seal	1402-011	US $10.05
43	43 1402-168 Deflector	1402-168	US $23.76
44	44 0402-997 Shaft Selector	0402-997	US $78.74
45	45 0402-998 Fork Selector	0402-998	US $94.90
46	46 0402-417 Shaft Shuttle	0402-417	US $21.60
47	47 0423-402 Ring Retaining	0423-402	US $3.05
48	48 0423-147 O-ring	0423-147	US $1.95
49	49 0402-999 Spring Return	0402-999	US $2.30
50	50 0502-579 Actuator inc. one No. 51 ;	0502-579	—
	replacement
50	50 3306-264 2x 4x actuator asm inc. one No. 51 ;	3306-264	US $503.04
51	51 0423-498 O-ring	0423-498	US $7.42
	replacement
51	51 0423-892 O-ring	0423-892	US $4.80
52	52 0423-396 Screw Self-tapping	0423-396	US $8.44

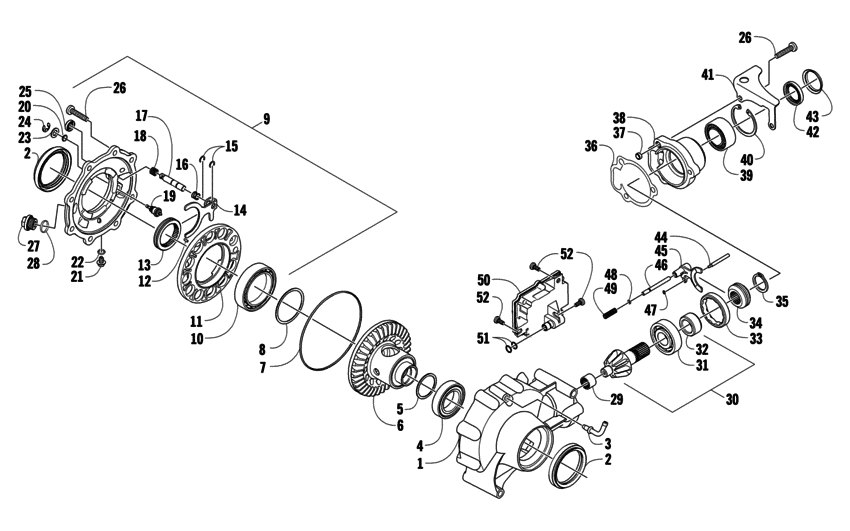

Front drive gearcase assembly Diagram Arctic Cat PROWLER/ HDX Cat Green General 11029442-698703

Front drive gearcase assembly Diagram Arctic Cat PROWLER/ HDX Cat Green General 11029442-698703
