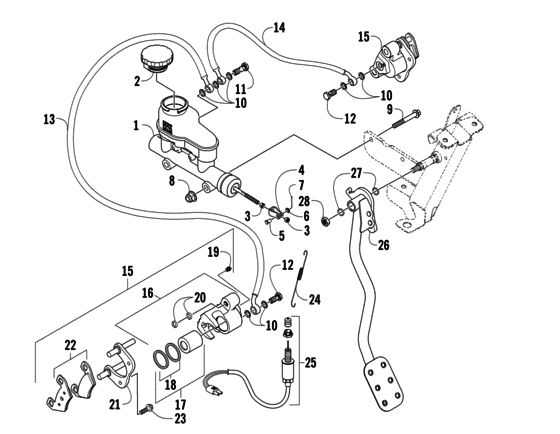

Hydraulic brake assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2006P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2006
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0502-786 CylinderAssembly; master brake inc. 2-4 ; |
0502-786 |
US $294.11 |
||
| replacement | |||||
|
1
|
1
2502-043 CYLINDER,MASTER BRAKE SIDEWINDER II-ASSYinc. 2-4 ; |
2502-043 |
US $247.46 |
||
|
2
|
2
0405-225 CapBrake fluid reservoir |
0405-225 |
US $104 |
||
|
3
|
3
0402-592 Nut |
0402-592 |
US $0.22 |
||
|
4
|
4
1402-520 Clevis |
1402-520 |
US $55.50 |
||
|
5
|
5
1402-377 PinClevis |
1402-377 |
US $2.74 |
||
|
6
|
6
8050-217 Washer |
8050-217 |
US $3 |
||
|
7
|
7
0402-584 ClipHairpin |
0402-584 |
US $0.11 |
||
|
8
|
8
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
9
|
9
8408-860 ScrewCap |
8408-860 |
US $43.76 |
||
|
10
|
10
0423-178 WasherCrush |
0423-178 |
US $12 |
||
|
11
|
11
0423-610 BoltDouble banjo fitting |
0423-610 |
US $12.62 |
||
|
12
|
12
0423-413 BoltBanjo fitting |
0423-413 |
US $5.60 |
||
|
13
|
13
1402-389 HoseFront; brake |
1402-389 |
US $133.30 |
||
|
14
|
14
1402-290 HoseFront right; brake |
1402-290 |
US $107.02 |
||
|
15
|
15
0502-958 CaliperRight front; brake inc. 16-22 ; |
0502-958 |
US $348.93 |
||
| replacement | |||||
|
15
|
15
1502-730 CaliperRight front; brake inc. 16-22 ; |
1502-730 |
US $480.82 |
||
|
15
|
15
0502-959 CaliperLeft front; brake inc. 16-22 ; |
0502-959 |
US $348.93 |
||
| replacement | |||||
|
15
|
15
1502-731 CaliperLeft front; brake inc. 16-22 ; |
1502-731 |
US $390.91 |
||
|
16
|
16
0502-611 HousingAssembly - left front and right rear; caliper inc. 17-19 ; |
0502-611 |
US $272.80 |
||
| replacement | |||||
|
16
|
16
1436-161 HousingAssembly - left rear; caliper inc. 17-19 ; |
1436-161 |
US $278.77 |
||
|
16
|
16
0502-603 HousingAssembly - right front; caliper inc. 17-19 ; |
0502-603 |
US $272.80 |
||
| replacement | |||||
|
16
|
16
1436-160 HousingAssembly - right front; caliper inc. 17-19 ; |
1436-160 |
US $278.77 |
||
|
17
|
17
0502-606 Piston/seal setinc. 18 ; |
0502-606 |
US $94.90 |
||
|
18
|
18
0502-607 Seal set |
0502-607 |
US $32.27 |
||
|
19
|
19
0502-609 ValveBleed |
0502-609 |
US $34.29 |
||
|
20
|
20
0502-608 O-ringSet; guide |
0502-608 |
US $51.46 |
||
|
21
|
21
0502-960 Bracket assembly |
0502-960 |
US $140.37 |
||
|
22
|
22
0502-875 PadSet; brake |
0502-875 |
US $58.26 |
||
| replacement | |||||
|
22
|
22
1436-420 Kit-pad,brake-set |
1436-420 |
US $70.66 |
||
|
23
|
23
8408-825 ScrewCap |
8408-825 |
US $1.62 |
||
|
24
|
24
0502-785 SpringBrake switch |
0502-785 |
US $7.47 |
||
|
25
|
25
0409-072 SwitchAssembly; brake |
0409-072 |
US $54.78 |
||
| replacement | |||||
|
25
|
25
0409-089 SwitchAssembly; brake |
0409-089 |
US $64.59 |
||
|
26
|
26
1502-042 LeverBrake |
1502-042 |
US $83.19 |
||
|
27
|
27
1602-213 O-ring |
1602-213 |
US $1.18 |
||
|
28
|
28
8428-002 NutLock |
8428-002 |
US $27.20 |
||
