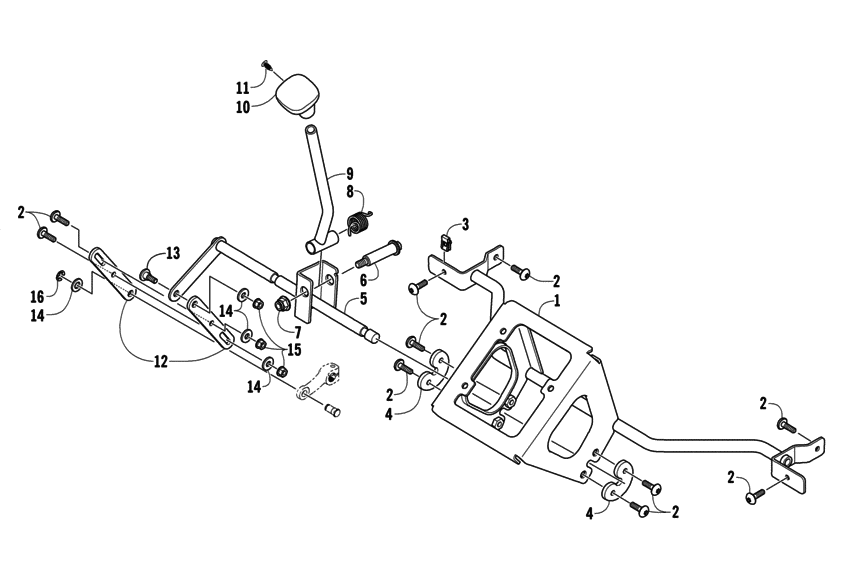

Shifting assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2006P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2006
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1506-525 MountShift |
1506-525 |
US $162.70 |
||
|
2
|
2
8476-616 ScrewCap |
8476-616 |
US $2.90 |
||
|
3
|
3
0423-577 ClipU-nut |
0423-577 |
US $2.90 |
||
|
4
|
4
1402-275 RetainerShift linkage |
1402-275 |
US $3.73 |
||
|
5
|
5
1506-811 AxleShift |
1506-811 |
US $146.43 |
||
|
6
|
6
0423-505 ScrewShoulder |
0423-505 |
US $4.80 |
||
|
7
|
7
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
8
|
8
1402-269 SpringShift |
1402-269 |
US $8.66 |
||
| replacement | |||||
|
8
|
8
1402-668 SpringShift |
1402-668 |
US $8.66 |
||
|
9
|
9
1506-810 LeverShift |
1506-810 |
US $124.02 |
||
| replacement | |||||
|
9
|
9
0437-060 Kit-leverShift-black/spring updated |
0437-060 |
US $124.02 |
||
|
10
|
10
0402-843 HandleReverse lever |
0402-843 |
US $17.25 |
||
|
11
|
11
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
12
|
12
2406-031 LinkageShift |
2406-031 |
US $8.66 |
||
|
13
|
13
0423-355 ScrewShoulder |
0423-355 |
US $5.36 |
||
|
14
|
14
0623-094 Washer |
0623-094 |
US $5.90 |
||
|
15
|
15
8424-602 Nut |
8424-602 |
US $1.72 |
||
|
16
|
16
0124-057 E-ring |
0124-057 |
US $4.52 |
||
