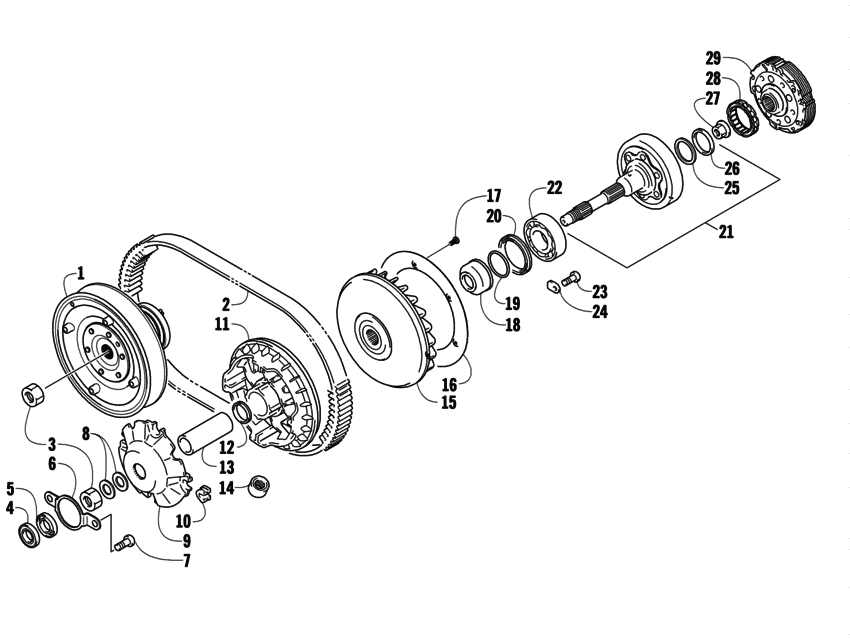

Transmission Assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2006P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2006
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0823-153 PulleyAssembly; driven |
0823-153 |
US $914.86 |
||
| replacement | |||||
|
1
|
1
0823-536 PULLEY,DRIVEN-ASSY(LP3) |
0823-536 |
US $768.74 |
||
|
2
|
2
0823-013 V-belt |
0823-013 |
US $159.78 |
||
|
3
|
3
0827-010 Nut |
0827-010 |
US $8.38 |
||
| replacement | |||||
|
3
|
3
0827-073 Nut |
0827-073 |
US $6.50 |
||
|
4
|
4
0832-010 Bearing |
0832-010 |
US $76.61 |
||
|
5
|
5
0823-016 SealRight; clutch housing |
0823-016 |
US $19.20 |
||
| replacement | |||||
|
5
|
5
0830-176 SealCap |
0830-176 |
US $21.60 |
||
|
6
|
6
0823-020 RetainerBearing |
0823-020 |
US $18.70 |
||
|
7
|
7
0826-031 Screw |
0826-031 |
US $1.65 |
||
|
8
|
8
0822-046 WasherDriven gear |
0822-046 |
US $38.26 |
||
|
9
|
9
0823-008 PlateMovable drive face |
0823-008 |
US $29.77 |
||
| replacement | |||||
|
9
|
9
0823-276 Plate,movable drive-z- |
0823-276 |
US $27.22 |
||
|
10
|
10
0823-010 DamperMovable drive face |
0823-010 |
US $6.77 |
||
| replacement | |||||
|
10
|
10
0823-277 Damper,movable drive-z- |
0823-277 |
US $6.05 |
||
|
11
|
11
0823-159 FaceMovable drive inc. 12 ; |
0823-159 |
US $210.59 |
||
| replacement | |||||
|
11
|
11
0823-273 Sheave,movable drive-asm-z-inc. 12 ; |
0823-273 |
US $209.46 |
||
|
12
|
12
0830-032 SealMovable drive face |
0830-032 |
US $16.13 |
||
|
13
|
13
0823-149 SpacerMovable drive face |
0823-149 |
US $68.49 |
||
| replacement | |||||
|
13
|
13
0823-271 Spacer,movable drive face 91 -z- |
0823-271 |
US $49.44 |
||
|
14
|
14
0823-147 RollerMovable drive face |
0823-147 |
US $18.61 |
||
| replacement | |||||
|
14
|
14
0823-170 RollerMovable drive face |
0823-170 |
US $21.15 |
||
|
15
|
15
0823-001 FaceFixed drive |
0823-001 |
US $218.08 |
||
| replacements | |||||
|
15
|
15
0823-156 FaceFixed drive |
0823-156 |
US $218.08 |
||
|
15
|
15
0823-272 Sheave,stationary-drive-mach-z- |
0823-272 |
US $93.89 |
||
|
16
|
16
0823-131 ShroudDrive face |
0823-131 |
US $87.82 |
||
|
17
|
17
0623-914 ScrewSelf-tapping |
0623-914 |
US $2.58 |
||
|
18
|
18
0823-015 SpacerFixed drive face |
0823-015 |
US $146.43 |
||
|
19
|
19
0470-531 O-ring |
0470-531 |
US $4.22 |
||
|
20
|
20
0830-034 SealRight; clutch housing |
0830-034 |
US $20.02 |
||
| replacement | |||||
|
20
|
20
0830-244 SEAL,OIL (52X70X8) |
0830-244 |
US $18.30 |
||
|
21
|
21
0823-270 HousingAssembly; clutch inc. 25-26 ; |
0823-270 |
US $476.30 |
||
| replacement | |||||
|
21
|
21
0837-005 HousingAssembly; clutch inc. 25-26 ; |
0837-005 |
US $417.17 |
||
|
22
|
22
0832-009 Bearing |
0832-009 |
US $101.46 |
||
|
23
|
23
0826-029 Screw |
0826-029 |
US $0.88 |
||
|
24
|
24
0822-010 RetainerBearing |
0822-010 |
US $4.11 |
||
|
25
|
25
0828-075 Shim |
0828-075 |
US $4.06 |
||
|
26
|
26
0823-017 SealLeft; clutch housing |
0823-017 |
US $16.13 |
||
| replacement | |||||
|
26
|
26
0830-189 Seal |
0830-189 |
US $11.47 |
||
|
27
|
27
0827-011 Nut |
0827-011 |
US $6.05 |
||
|
28
|
28
0823-018 ClutchOne way |
0823-018 |
US $164.61 |
||
|
29
|
29
0823-098
Clutch
|
0823-098 |
— | ||
| replacement | |||||
|
29
|
29
0823-484 Clutch centrifical-6 plate-z 2 |
0823-484 |
US $256.54 |
||
