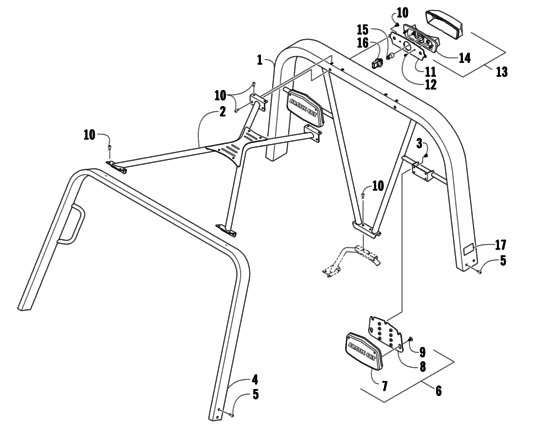

Canopy and taillight assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2009
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1506-680 TubeRear; canopy |
1506-680 |
US $1,608.11 |
||
|
2
|
2
1506-713 SupportCanopy |
1506-713 |
US $1,079.77 |
||
|
3
|
3
0423-361 ScrewMachine |
0423-361 |
US $6.70 |
||
|
4
|
4
1506-665 TubeFront; canopy |
1506-665 |
US $1,229 |
||
|
5
|
5
0423-817 ScrewMachine |
0423-817 |
US $8.52 |
||
|
6
|
6
1506-795 PadAssembly; headrest inc. 7-9 ; |
1506-795 |
US $169.46 |
||
| replacement | |||||
|
6
|
6
4406-989 PAD,HEADRESTinc. 7-9 ; |
4406-989 |
US $31.26 |
||
|
7
|
7
1406-884 PadHeadrest |
1406-884 |
US $26.75 |
||
| replacement | |||||
|
7
|
7
4406-989 PAD,HEADREST |
4406-989 |
US $31.26 |
||
|
8
|
8
1506-722 MountHeadrest |
1506-722 |
US $108.03 |
||
|
9
|
9
0623-544 Plug |
0623-544 |
US $2.96 |
||
|
10
|
10
0423-419 ScrewMachine |
0423-419 |
US $6.70 |
||
|
11
|
11
2406-069 BracketTaillight mounting |
2406-069 |
US $23.76 |
||
|
12
|
12
0623-301 ScrewSelf-tapping |
0623-301 |
US $0.58 |
||
|
13
|
13
0509-022 Taillight assemblyinc. 14-16 ; |
0509-022 |
US $88.85 |
||
|
14
|
14
0509-025 HousingTaillight |
0509-025 |
US $73.68 |
||
|
15
|
15
0409-056 BulbTaillight |
0409-056 |
US $20.77 |
||
|
16
|
16
0409-057 SocketTaillight |
0409-057 |
US $15.82 |
||
|
17
|
17
1411-864 DecalCanopy; warning |
1411-864 |
US $4.48 |
||
