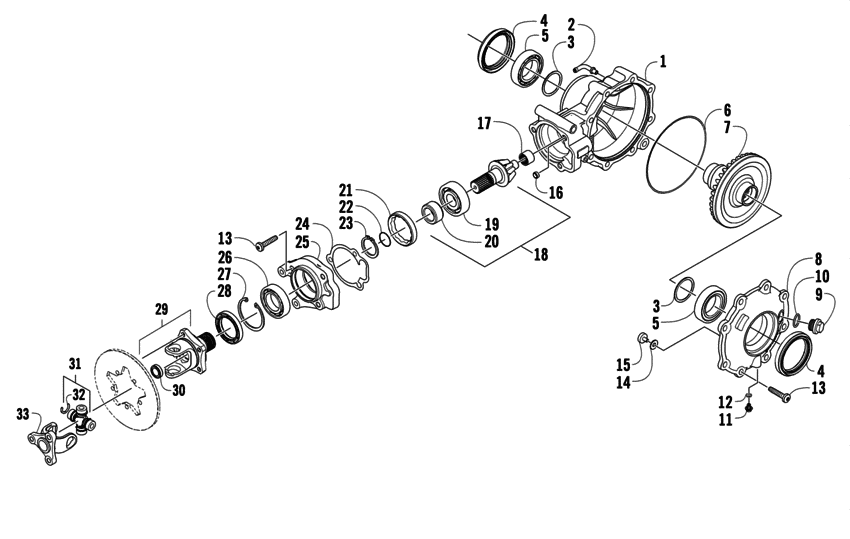

Rear drive gearcase assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2009
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
1502-406 GearcaseRear |
1502-406 |
US $1,446.10 |
||
|
1
|
1
0502-548 HousingGearcase |
0502-548 |
US $156.27 |
||
|
2
|
2
1402-442 Fitting |
1402-442 |
US $19.20 |
||
|
3
|
3
0402-405 Shim |
0402-405 |
US $11.47 |
||
|
3
|
3
0402-406 Shim |
0402-406 |
US $11.47 |
||
|
3
|
3
0402-407 Shim |
0402-407 |
US $11.47 |
||
|
3
|
3
0402-408 Shim |
0402-408 |
US $12.93 |
||
|
3
|
3
0402-409 Shim |
0402-409 |
US $11.47 |
||
|
4
|
4
1402-713 Seal |
1402-713 |
US $21.77 |
||
| replacement | |||||
|
4
|
4
2402-150 SEAL,GEARCASE-HR |
2402-150 |
US $20.77 |
||
|
5
|
5
0402-393 Bearing |
0402-393 |
US $18.70 |
||
|
6
|
6
0423-149 O-ring |
0423-149 |
US $18.70 |
||
|
7
|
7
1402-245 Gear36t; ring |
1402-245 |
US $358.58 |
||
|
8
|
8
0502-741 CoverGearcase |
0502-741 |
US $109.63 |
||
|
9
|
9
0402-333 PlugFill inc. 10 ; |
0402-333 |
US $14.38 |
||
|
10
|
10
0423-154 O-ringFill plug |
0423-154 |
US $4.11 |
||
|
11
|
11
1402-210 PlugMagnetic inc. 12 ; |
1402-210 |
US $21.60 |
||
|
12
|
12
0423-153 O-ringDrain plug |
0423-153 |
US $10.28 |
||
|
13
|
13
0423-118 ScrewSelf-tapping |
0423-118 |
US $6.90 |
||
|
14
|
14
0402-429 Shim |
0402-429 |
US $11.47 |
||
|
14
|
14
0402-430 Shim |
0402-430 |
US $14.22 |
||
|
14
|
14
0402-431 Shim |
0402-431 |
US $14.22 |
||
|
14
|
14
0402-432 Shim |
0402-432 |
US $12.62 |
||
|
14
|
14
0402-433 Shim |
0402-433 |
US $14.22 |
||
|
15
|
15
0402-326 ButtonThrust |
0402-326 |
US $8.21 |
||
|
16
|
16
0402-411 PinDowel |
0402-411 |
US $8.34 |
||
|
17
|
17
0402-328 BearingNeedle |
0402-328 |
US $18.70 |
||
|
18
|
18
0502-649 GearAssembly - 9t; pinion inc. 19-20 ; |
0502-649 |
US $205.02 |
||
|
19
|
19
0402-327 Bearing |
0402-327 |
US $27.22 |
||
|
20
|
20
0402-336 CollarRetaining |
0402-336 |
US $52.04 |
||
|
21
|
21
0402-357
Collar
|
0402-357 |
— | ||
|
22
|
22
0423-633 O-ring |
0423-633 |
US $2.50 |
||
|
23
|
23
0423-546 RingRetaining |
0423-546 |
US $24.45 |
||
|
24
|
24
0402-947 GasketFlange |
0402-947 |
US $4.11 |
||
|
25
|
25
0502-746 HousingPinion |
0502-746 |
US $170.67 |
||
|
26
|
26
0402-324 Bearing |
0402-324 |
US $36.30 |
||
|
27
|
27
0402-347 RingRetaining |
0402-347 |
US $6.42 |
||
|
28
|
28
1402-314 Seal |
1402-314 |
US $41.36 |
||
|
29
|
29
1502-124
Shaft
inc. 30 ; |
1502-124 |
— | ||
|
30
|
30
1402-322 CoverEnd |
1402-322 |
US $4.70 |
||
|
31
|
31
0402-944 JointSet; universal inc. 32 ; |
0402-944 |
US $32.27 |
||
|
32
|
32
0423-395 RingRetaining |
0423-395 |
US $14.16 |
||
|
33
|
33
0502-331 Yoke/joint assembly |
0502-331 |
US $147.44 |
||
