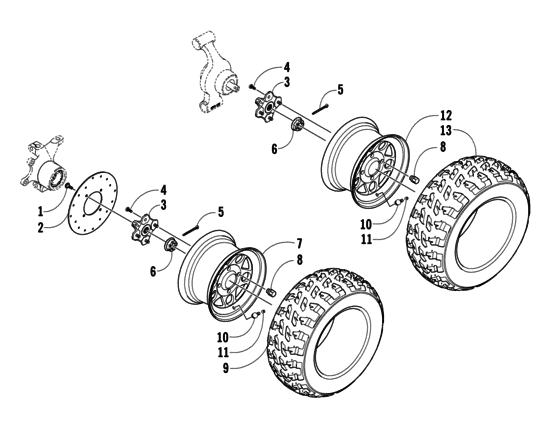

Wheel and tire assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2009P2S4BUSZ
- Engine Capacity
- 641
- Year
- 2009
- Sales region
- General
- Colour
- Cat Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0423-557 ScrewShoulder w/loctite |
0423-557 |
US $4.40 |
||
|
2
|
2
1402-455 DiscBrake |
1402-455 |
US $56.15 |
||
| replacement | |||||
|
2
|
2
1436-418 Kit,brake disc (1402-455) |
1436-418 |
US $59.55 |
||
|
3
|
3
1502-433 HubFront; wheel inc. 4 ; |
1502-433 |
US $187.84 |
||
|
3
|
3
1502-435 HubRear; wheel inc. 4 ; |
1502-435 |
US $186.83 |
||
|
4
|
4
0402-974 StudWheel hub |
0402-974 |
US $4.11 |
||
|
5
|
5
0423-407 PinCotter |
0423-407 |
US $2.95 |
||
|
6
|
6
0423-607 NutCastle flange |
0423-607 |
US $8.43 |
||
|
7
|
7
1402-449
Wheel
|
1402-449 |
— | ||
|
8
|
8
0423-618 NutWheel; mounting |
0423-618 |
US $18.68 |
||
|
9
|
9
1402-392
Tire
|
1402-392 |
— | ||
|
10
|
10
0402-064 ValveStem inc. 11 ; |
0402-064 |
US $4.43 |
||
|
11
|
11
0402-140 CapValve stem |
0402-140 |
US $12.72 |
||
| replacement | |||||
|
11
|
11
0402-064 ValveStem |
0402-064 |
US $4.43 |
||
|
12
|
12
1402-452 WheelRear |
1402-452 |
US $161.86 |
||
|
13
|
13
1402-393 TireRear |
1402-393 |
US $195.73 |
||
