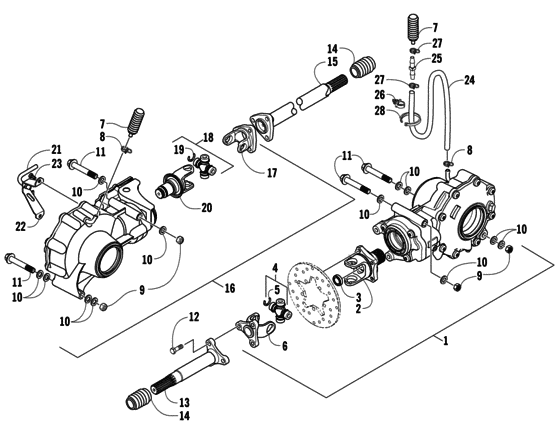

Drive train assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2006P2S4BUSG
- Engine Capacity
- 641
- Year
- 2006
- Sales region
- General
- Colour
- Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0502-738 GearcaseRear inc. 2-6 ; |
0502-738 |
US $1,215.93 |
||
|
2
|
2
0502-765 ShaftAssembly; input inc. 3 ; |
0502-765 |
US $170.67 |
||
|
3
|
3
1402-322 CoverEnd |
1402-322 |
US $4.70 |
||
|
4
|
4
0402-944 JointSet; universal inc. 5 ; |
0402-944 |
US $32.27 |
||
|
5
|
5
0423-395 RingRetaining |
0423-395 |
US $14.16 |
||
|
6
|
6
0502-331 Yoke/joint assembly |
0502-331 |
US $147.44 |
||
|
7
|
7
0402-147 BladderCase |
0402-147 |
US $11.43 |
||
| replacement | |||||
|
7
|
7
1402-620 BladderGearcase |
1402-620 |
US $12.93 |
||
|
8
|
8
0423-315 ClampDouble wire; hose |
0423-315 |
US $5.36 |
||
|
9
|
9
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
10
|
10
0423-426 Washer |
0423-426 |
US $4.40 |
||
|
11
|
11
0423-404 ScrewCap |
0423-404 |
US $4.38 |
||
|
12
|
12
8409-025 ScrewCap |
8409-025 |
US $2.13 |
||
|
13
|
13
0502-857 ShaftRear; drive |
0502-857 |
US $157.34 |
||
|
14
|
14
0402-966 BootPropeller shaft |
0402-966 |
from US $13.31 |
||
|
15
|
15
0502-855 ShaftPropeller |
0502-855 |
US $149.52 |
||
|
16
|
16
0502-737 GearcaseFront inc. 17-20 ; |
0502-737 |
US $2,007.36 |
||
|
17
|
17
1402-369 YokeFlange |
1402-369 |
US $81.78 |
||
|
18
|
18
1402-164 JointUniversal inc. 19 ; |
1402-164 |
US $23.04 |
||
|
19
|
19
0423-450 RingRetaining |
0423-450 |
US $15.68 |
||
|
20
|
20
0502-517 YokeFront |
0502-517 |
US $104 |
||
|
21
|
21
0487-037 Cable |
0487-037 |
US $120.16 |
||
|
22
|
22
0502-942 PlateCable |
0502-942 |
US $16.24 |
||
|
23
|
23
0423-396 ScrewSelf-tapping |
0423-396 |
US $8.44 |
||
|
24
|
24
0410-049 HoseVent |
0410-049 |
US $36.30 |
||
|
25
|
25
0470-462 FittingVent |
0470-462 |
US $2.68 |
||
| replacement | |||||
|
25
|
25
0470-702 FittingStraight |
0470-702 |
US $53.49 |
||
|
26
|
26
0623-101 ClipRouting |
0623-101 |
US $42.15 |
||
|
27
|
27
0423-155 ClampDouble wire |
0423-155 |
US $2 |
||
|
28
|
28
0123-788 TieCable |
0123-788 |
US $2.90 |
||
