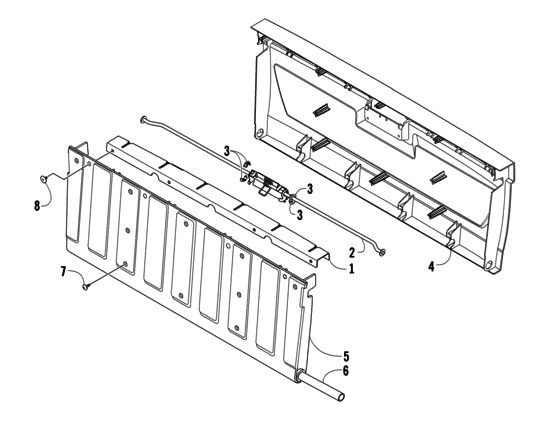

Tailgate assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2006P2S4BUSG
- Engine Capacity
- 641
- Year
- 2006
- Sales region
- General
- Colour
- Green
- Model
- Prowler 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
1506-620 Complete tailgate assembly |
1506-620 |
US $317.59 |
||
| replacement | |||||
|
|
2506-205 Complete tailgate assembly |
2506-205 |
US $358.58 |
||
|
1
|
1
1506-704 BraceTailgate |
1506-704 |
US $69.65 |
||
|
2
|
2
2506-056 LatchAssembly; tailgate |
2506-056 |
US $129.25 |
||
|
3
|
3
1406-706 Bushing |
1406-706 |
US $8.36 |
||
|
4
|
4
1406-768 PanelOuter; tailgate |
1406-768 |
US $182.30 |
||
| replacement | |||||
|
4
|
4
2406-369 PanelOuter; tailgate |
2406-369 |
US $182.30 |
||
|
5
|
5
1406-769 PanelInner; tailgate |
1406-769 |
US $140.53 |
||
| replacement | |||||
|
5
|
5
2406-365 PanelInner; tailgate |
2406-365 |
US $160.58 |
||
|
6
|
6
1406-927 ShaftTailgate; pivot |
1406-927 |
US $31.26 |
||
|
7
|
7
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
7
|
7
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
8
|
8
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
