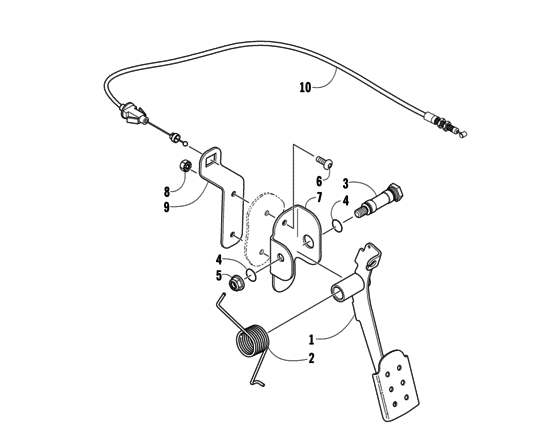

Accelerator assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2007P2S4BUSG
- Engine Capacity
- 641
- Year
- 2007
- Sales region
- General
- Colour
- Green
- Model
- Prowler 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0502-974 PedalAccelerator |
0502-974 |
US $31.10 |
||
|
2
|
2
0405-233 Spring |
0405-233 |
US $9.54 |
||
| replacement | |||||
|
2
|
2
0470-851 Spring |
0470-851 |
US $31.26 |
||
|
3
|
3
0402-872 AxleBrake lever |
0402-872 |
US $43.38 |
||
|
4
|
4
1602-213 O-ring |
1602-213 |
US $1.18 |
||
|
5
|
5
8422-002 NutLock |
8422-002 |
US $1.34 |
||
|
6
|
6
8471-616 ScrewCap |
8471-616 |
US $4.40 |
||
|
7
|
7
0502-991 BracketAccelerator pedal |
0502-991 |
US $23.76 |
||
|
8
|
8
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
9
|
9
0502-990 BracketThrottle; cable |
0502-990 |
US $18.63 |
||
|
10
|
10
0487-048 CableThrottle |
0487-048 |
US $64.45 |
||
