Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1502-128 Gearcase Rear inc. 2-6 ;	1502-128	US $1,303.44
	replacement
1	1 1502-406 Gearcase Rear inc. 2-6 ;	1502-406	US $1,446.10
2	2 1502-124 Shaft inc. 3 ;	1502-124	—
3	3 1402-322 Cover End	1402-322	US $4.70
4	4 0402-944 Joint Set; universal inc. 5 ;	0402-944	US $32.27
5	5 0423-395 Ring Retaining	0423-395	US $14.16
6	6 0502-331 Yoke/joint assembly	0502-331	US $147.44
7	7 8409-025 Screw Cap	8409-025	US $2.13
8	8 0502-857 Shaft Rear; drive	0502-857	US $157.34
9	9 0402-966 Boot Propeller shaft	0402-966	from US $13.31
10	10 0423-315 Clamp Double wire; hose	0423-315	US $5.36
11	11 0410-070 Hose 25 ft; gasline	0410-070	US $144.40
12	12 0123-788 Tie Cable	0123-788	US $2.90
13	13 0623-101 Clip Routing	0623-101	US $42.15
14	14 0423-155 Clamp Double wire	0423-155	US $2
15	15 0470-462 Fitting Vent	0470-462	US $2.68
	replacement
15	15 0470-702 Fitting Straight	0470-702	US $53.49
16	16 0402-147 Bladder Case	0402-147	US $11.43
	replacement
16	16 1402-620 Bladder Gearcase	1402-620	US $12.93
17	17 8408-820 Screw Cap	8408-820	US $3.52
18	18 0402-950 Flange Output	0402-950	US $75.94
	replacement
18	18 2402-193 FLANGE,OUTPUT	2402-193	US $86.82
19	19 0423-393 Clamp Boot	0423-393	US $5.70
20	20 0402-985 Boot	0402-985	from US $8.74
21	21 0423-411 Clamp Boot	0423-411	US $11.04
22	22 0673-618 Bumper Propeller shaft	0673-618	US $9.70
23	23 1402-271 Shaft Propeller	1402-271	US $225.23
24	24 1502-127 Gearcase Front	1502-127	US $1,800.25
25	25 8428-002 Nut Lock	8428-002	US $27.20
26	26 0423-426 Washer	0423-426	US $4.40
27	27 0423-404 Screw Cap	0423-404	US $4.38
28	28 0502-942 Plate Cable	0502-942	US $16.24
29	29 0423-396 Screw Self-tapping	0423-396	US $8.44
30	30 0487-037 Cable	0487-037	US $120.16

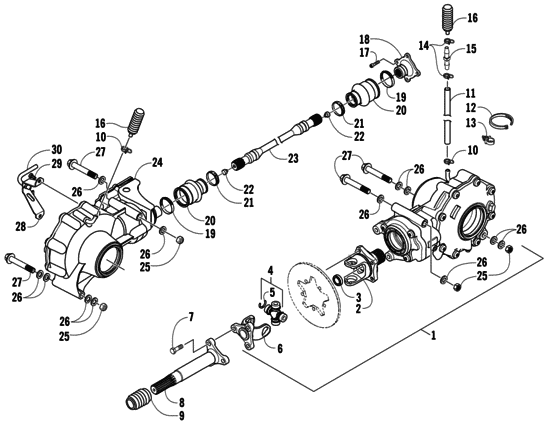

Drive train assembly Diagram Arctic Cat PROWLER/ HDX Green General 11029630-698707

Drive train assembly Diagram Arctic Cat PROWLER/ HDX Green General 11029630-698707
