Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0570-097 Tank Assembly; gas inc. 2-8 ;	0570-097	US $442.45
	replacement
1	1 0570-512 TANK,FUEL-ASSY (PROWLER W/ CARB) inc. 2-8 ;	0570-512	US $697.41
2	2 0470-541 Cap Gas tank	0470-541	US $50.45
3	3 0570-100 Sensor Fuel level inc. 4-6 ;	0570-100	US $172.72
	replacement
3	3 0570-255 Sender,fuel level-kit inc. 4-6 ;	0570-255	US $172.72
4	4 0470-521 Seal Fuel level sensor	0470-521	US $4.22
5	5 0470-475 Filter Fuel	0470-475	US $17.25
6	6 0423-603 Clamp Hose	0423-603	US $4.30
7	7 1623-158 Screw Self-tapping	1623-158	US $4.35
8	8 0470-639 Plate Fuel level sensor; mounting	0470-639	US $4.48
9	9 0423-688 Clamp Hose	0423-688	US $3.15
10	10 0410-070 Hose 25 ft; gasline	0410-070	US $144.40
11	11 1623-406 Clip Routing	1623-406	US $3.25
12	12 0423-670 Clamp Hose	0423-670	US $23.35
13	13 0470-527 Fitting Straight	0470-527	US $5.98
	replacement
13	13 0470-702 Fitting Straight	0470-702	US $53.49
14	14 8476-620 Screw Cap	8476-620	US $2.95
15	15 0470-519 Pump Fuel	0470-519	US $64.75
	replacement
15	15 0470-758 Pump Fuel	0470-758	US $73.68
16	16 0623-038 Nut w/washer	0623-038	US $2.15
17	17 8476-625 Screw Cap	8476-625	US $12
18	18 0470-544 Bracket Gas tank mounting	0470-544	US $18.99
19	19 0623-784 Screw	0623-784	—
	replacement
19	19 2623-163 Screw, Self-Tapping	2623-163	US $9.05
20	20 0570-127 Strap Gas tank	0570-127	US $21.13
21	21 0570-128 Strap Gas tank	0570-128	US $21.13
22	22 8427-602 Nut	8427-602	US $1.45
23	23 8476-650 Screw Cap	8476-650	US $8.52
24	24 0423-357 Nut Stamped	0423-357	US $6.70
25	25 1406-886 Inset Fuel cap	1406-886	US $23.76
26	26 0123-788 Tie Cable	0123-788	US $2.90
27	27 0123-811 Tie Cable	0123-811	US $2.15

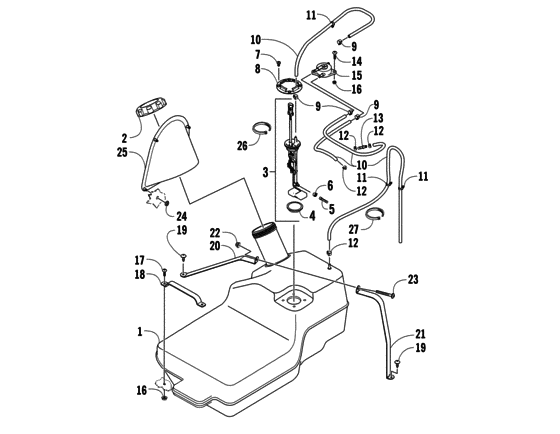

Gas Tank Assembly Diagram Arctic Cat PROWLER/ HDX Green General 11029636-698707

Gas Tank Assembly Diagram Arctic Cat PROWLER/ HDX Green General 11029636-698707
