Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2506-663 Frame Main	2506-663	US $2,849.85
	replacement
1	1 2516-497 Frame Main	2516-497	US $2,849.85
2	2 2506-714 Bumper	2506-714	US $319.42
	replacement
2	2 2516-558 Bracket Bumper; mounting	2516-558	US $319.42
3	3 8409-020 Screw Cap	8409-020	US $7.44
4	4 8427-002 NUT,HEX FLG-NYL LOCK M10X1.25 Lock	8427-002	from US $5.56
5	5 8476-820 Screw Machine	8476-820	US $1.34
6	6 1506-797 Bracket Right; steering support	1506-797	US $131.26
6	6 0502-853 Bracket Left; steering support	0502-853	US $140.53
7	7 0423-642 Screw Machine	0423-642	US $7.10
8	8 8408-820 Screw Cap	8408-820	US $3.52
9	9 0505-513 Support Steering	0505-513	US $460.65
10	10 8424-802 Nut	8424-802	US $0.74
11	11 8408-870 Screw Cap	8408-870	US $43.35
12	12 1506-844 Bracket Support - front right; seat	1506-844	US $57.28
12	12 1506-845 Bracket Support - front left; seat	1506-845	US $75.71
13	13 8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 Lock	8427-802	US $0.72
14	14 1506-842 Bracket Support - rear; seat	1506-842	US $27.22
15	15 8408-850 Screw Cap	8408-850	US $3
16	16 0423-577 Clip U-nut	0423-577	US $2.90
17	17 8476-616 Screw Cap	8476-616	US $2.90
18	18 2506-638 Support Canopy	2506-638	US $125.22
19	19 2506-634 Support Right; overhead	2506-634	US $319.42
19	19 2506-635 Support Left; overhead	2506-635	US $359.58
20	20 1406-720 Panel Belly	1406-720	US $165.09
21	21 0423-545 Screw Body	0423-545	US $7.50
22	22 1406-721 Panel Side; belly	1406-721	US $94.90
23	23 0123-788 Tie Cable	0123-788	US $2.90
24	24 2506-783 Bumper	2506-783	US $191.65
25	25 8408-860 Screw Cap	8408-860	US $43.76
26	26 0412-461 Shield Heat	0412-461	US $15.47
27	27 0406-879 Bumper Rear; seat	0406-879	US $5.28

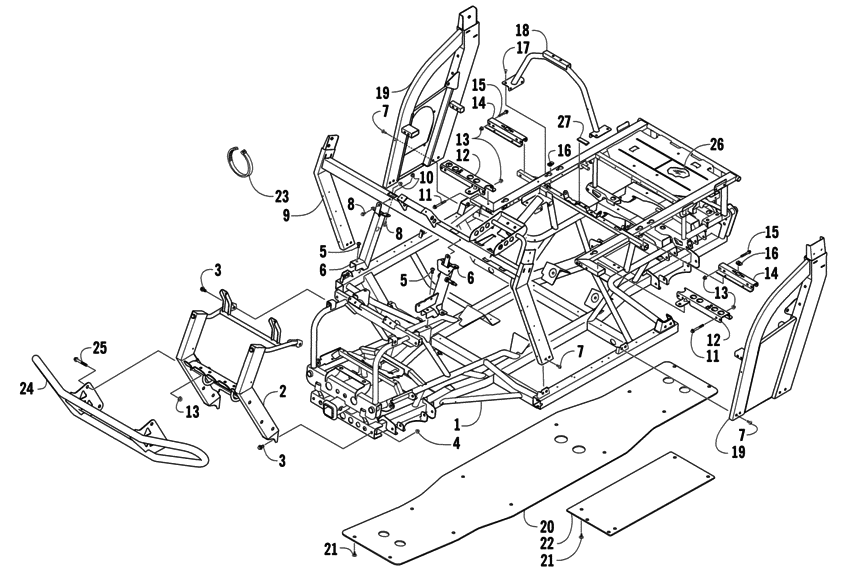

Frame and related parts Diagram Arctic Cat PROWLER/ HDX Green General 11029866-698712

Frame and related parts Diagram Arctic Cat PROWLER/ HDX Green General 11029866-698712
