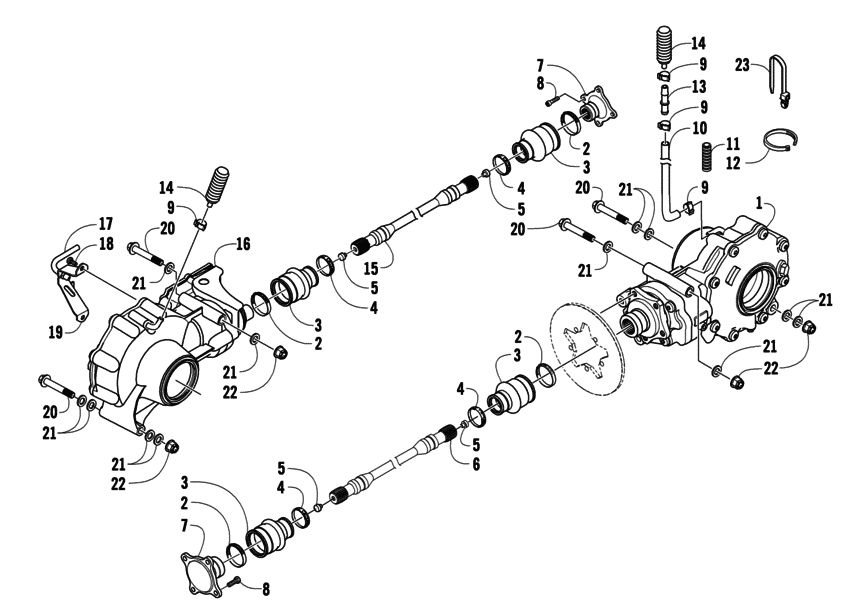

Drive train assembly Diagram Arctic Cat PROWLER/ HDX
- Model code
- U2008P2T4EUSL
- Engine Capacity
- 695
- Year
- 2008
- Sales region
- General
- Colour
- Silver
- Model
- Prowler 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0502-777
Gearcase
|
0502-777 |
— | ||
|
2
|
2
0423-393 ClampBoot |
0423-393 |
US $5.70 |
||
|
3
|
3
0402-985 Boot |
0402-985 |
from US $8.74 |
||
|
4
|
4
0423-411 ClampBoot |
0423-411 |
US $11.04 |
||
|
5
|
5
0673-618 BumperPropeller shaft |
0673-618 |
US $9.70 |
||
|
6
|
6
1402-272 ShaftRear; propeller |
1402-272 |
US $139.36 |
||
|
7
|
7
0402-950 FlangeOutput |
0402-950 |
US $75.94 |
||
| replacement | |||||
|
7
|
7
2402-193 FLANGE,OUTPUT |
2402-193 |
US $86.82 |
||
|
8
|
8
8408-820 ScrewCap |
8408-820 |
US $3.52 |
||
|
9
|
9
0423-670 ClampHose |
0423-670 |
US $23.35 |
||
|
10
|
10
0410-070 Hose25 ft; gasline |
0410-070 |
US $144.40 |
||
|
11
|
11
0419-392 Conduit3 ft |
0419-392 |
US $5.48 |
||
|
12
|
12
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
13
|
13
0470-702 FittingStraight |
0470-702 |
US $53.49 |
||
|
14
|
14
1402-620 BladderGearcase |
1402-620 |
US $12.93 |
||
|
15
|
15
1402-271 ShaftPropeller |
1402-271 |
US $225.23 |
||
|
16
|
16
1502-298 GearcaseFront |
1502-298 |
US $2,137.36 |
||
|
17
|
17
0487-037 Cable |
0487-037 |
US $120.16 |
||
|
18
|
18
0423-396 ScrewSelf-tapping |
0423-396 |
US $8.44 |
||
|
19
|
19
0502-942 PlateCable |
0502-942 |
US $16.24 |
||
|
20
|
20
0423-404 ScrewCap |
0423-404 |
US $4.38 |
||
|
21
|
21
0423-426 Washer |
0423-426 |
US $4.40 |
||
|
22
|
22
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
23
|
23
0423-075 ClipSnap-in |
0423-075 |
US $7.50 |
||
