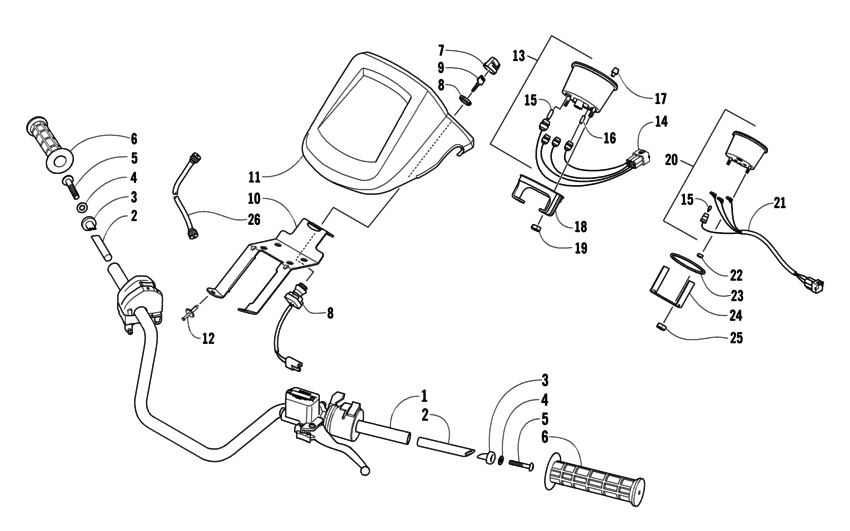

Handlebar assembly Diagram Arctic Cat TBX 400 4X4 AUTOMATIC TRANSMISSION
- Model code
- A2006BBH4BUSR
- Engine Capacity
- 400
- Year
- 2006
- Sales region
- General
- Colour
- Red
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0505-418 TubeHandlebar |
0505-418 |
US $32.27 |
||
|
2
|
2
0405-148 PlugHandlebar |
0405-148 |
US $33.22 |
||
| replacement | |||||
|
2
|
2
3323-054 PlugHandlebar |
3323-054 |
US $15.82 |
||
|
3
|
3
0405-149 End capHandlebar |
0405-149 |
US $21.32 |
||
|
4
|
4
8050-247 Washer |
8050-247 |
US $8.80 |
||
|
5
|
5
8477-845 ScrewMachine |
8477-845 |
US $18.68 |
||
|
6
|
6
0405-147 GripHandlebar |
0405-147 |
US $43.20 |
||
|
7
|
7
0409-013 CoverKey |
0409-013 |
US $8.21 |
||
|
8
|
8
3430-040 SwitchInc. 6; assembly; ignition inc. 9 ; |
3430-040 |
US $171.14 |
||
|
9
|
9
3409-007 KeyBlank; ignition C Series ; |
3409-007 |
US $29.39 |
||
|
9
|
9
3409-011 KeyD series; blank; ignition D Series ; |
3409-011 |
US $29.39 |
||
|
9
|
9
3409-012 KeyE series; 2x4; 250; blank; ignition E Series ; |
3409-012 |
US $29.39 |
||
|
9
|
9
3409-013 KeyF series; 2x4; 250; blank; ignition F Series ; |
3409-013 |
US $29.39 |
||
|
10
|
10
1506-578 BracketInstrument pod; mounting |
1506-578 |
US $32.27 |
||
|
11
|
11
0405-168 Instrument pod |
0405-168 |
US $89.69 |
||
|
12
|
12
0423-535 RivetReinstallable |
0423-535 |
US $9.05 |
||
|
13
|
13
0420-050 Speedometerinc. 14, one No. 15, and 16-17 ; |
0420-050 |
US $264.62 |
||
|
14
|
14
0509-031 HarnessSpeedometer |
0509-031 |
US $91.87 |
||
|
15
|
15
0409-062 BulbT-10; instrument |
0409-062 |
US $6.50 |
||
|
16
|
16
0609-078 BulbIndicator |
0609-078 |
US $1.60 |
||
|
17
|
17
0409-063 KnobTripmeter |
0409-063 |
US $8.42 |
||
|
18
|
18
1506-577 BracketSpeedometer; retaining |
1506-577 |
US $17.42 |
||
|
19
|
19
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
20
|
20
0420-064 Gauge2 in.; fuel inc. one No. 15 and 21 ; |
0420-064 |
US $179.76 |
||
|
21
|
21
0420-069 Harness2 in. - 4p; fuel gauge |
0420-069 |
US $55.50 |
||
|
22
|
22
0423-544 Spacer |
0423-544 |
US $7.28 |
||
|
23
|
23
0620-139 RingFuel gauge; rubber cushion |
0620-139 |
US $3.92 |
||
|
24
|
24
0420-060 BracketGauge; 2 in. |
0420-060 |
US $19.14 |
||
|
25
|
25
0423-493 Nut w/washer |
0423-493 |
US $2.15 |
||
|
26
|
26
0487-026 CableSpeedometer |
0487-026 |
US $59.50 |
||
