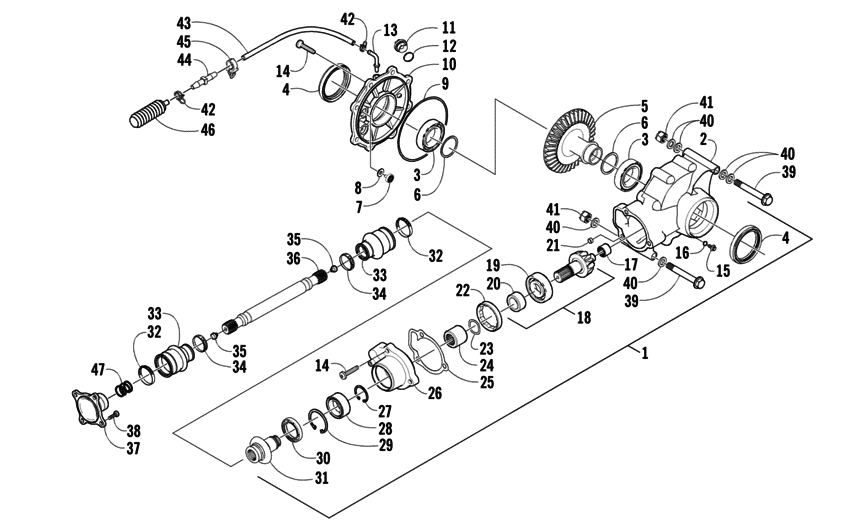

Rear drive gearcase assembly Diagram Arctic Cat TBX 400 4X4 AUTOMATIC TRANSMISSION
- Model code
- A2006BBH4BUSR
- Engine Capacity
- 400
- Year
- 2006
- Sales region
- General
- Colour
- Red
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
0502-622 HousingGearcase |
0502-622 |
US $284.83 |
||
|
3
|
3
0402-393 Bearing |
0402-393 |
US $18.70 |
||
|
4
|
4
0402-394 Seal |
0402-394 |
US $21.77 |
||
| replacement | |||||
|
4
|
4
2402-150 SEAL,GEARCASE-HR |
2402-150 |
US $20.77 |
||
|
5
|
5
1402-032 Gear36t; ring |
1402-032 |
US $326.26 |
||
|
6
|
6
0402-405 Shim |
0402-405 |
US $11.47 |
||
|
6
|
6
0402-406 Shim |
0402-406 |
US $11.47 |
||
|
6
|
6
0402-407 Shim |
0402-407 |
US $11.47 |
||
|
6
|
6
0402-408 Shim |
0402-408 |
US $12.93 |
||
|
6
|
6
0402-409 Shim |
0402-409 |
US $11.47 |
||
|
7
|
7
0402-326 ButtonThrust |
0402-326 |
US $8.21 |
||
|
8
|
8
0402-429 Shim |
0402-429 |
US $11.47 |
||
|
8
|
8
0402-430 Shim |
0402-430 |
US $14.22 |
||
|
8
|
8
0402-431 Shim |
0402-431 |
US $14.22 |
||
|
8
|
8
0402-432 Shim |
0402-432 |
US $12.62 |
||
|
8
|
8
0402-433 Shim |
0402-433 |
US $14.22 |
||
|
9
|
9
0423-149 O-ring |
0423-149 |
US $18.70 |
||
|
10
|
10
0502-346 CoverGearcase |
0502-346 |
US $91.74 |
||
|
11
|
11
0402-333 PlugFill inc. 12 ; |
0402-333 |
US $14.38 |
||
|
12
|
12
0423-154 O-ringFill plug |
0423-154 |
US $4.11 |
||
|
13
|
13
1402-102 Fitting |
1402-102 |
US $80.75 |
||
|
14
|
14
0423-118 ScrewSelf-tapping |
0423-118 |
US $6.90 |
||
|
15
|
15
0402-450 PlugMagnetic; drain inc. 16 ; |
0402-450 |
US $19.20 |
||
| replacement | |||||
|
15
|
15
1402-210 PlugMagnetic inc. 16 ; |
1402-210 |
US $21.60 |
||
|
16
|
16
0423-153 O-ringDrain plug |
0423-153 |
US $10.28 |
||
|
17
|
17
0402-328 BearingNeedle |
0402-328 |
US $18.70 |
||
|
18
|
18
0502-783 GearAssembly - 10t; pinion 3.6 - Assembly - 10T; |
0502-783 |
US $205.02 |
||
|
19
|
19
0402-327 Bearing |
0402-327 |
US $27.22 |
||
|
20
|
20
0402-336 CollarRetaining |
0402-336 |
US $52.04 |
||
|
21
|
21
0402-411 PinDowel |
0402-411 |
US $8.34 |
||
|
22
|
22
0402-331 CollarLock |
0402-331 |
US $44.60 |
||
|
23
|
23
0402-982 WasherWave |
0402-982 |
US $9.44 |
||
|
24
|
24
0402-981 CollarShaft |
0402-981 |
US $54.50 |
||
|
25
|
25
0402-947 GasketFlange |
0402-947 |
US $4.11 |
||
|
26
|
26
0502-529 HousingPinion |
0502-529 |
US $225.23 |
||
|
27
|
27
0423-417 RingRetaining |
0423-417 |
US $9.54 |
||
|
28
|
28
1402-043 Bearing |
1402-043 |
US $73.68 |
||
|
29
|
29
0423-423 RingRetaining |
0423-423 |
US $5.74 |
||
|
30
|
30
1402-011 Seal |
1402-011 |
US $10.05 |
||
|
31
|
31
0502-407 ShaftInput |
0502-407 |
US $109.32 |
||
| replacement | |||||
|
31
|
31
1502-085
Shaft
|
1502-085 |
— | ||
|
32
|
32
0423-393 ClampBoot |
0423-393 |
US $5.70 |
||
|
33
|
33
0402-985 Boot |
0402-985 |
from US $8.74 |
||
|
34
|
34
0423-411 ClampBoot |
0423-411 |
US $11.04 |
||
|
35
|
35
0673-618 BumperPropeller shaft |
0673-618 |
US $9.70 |
||
|
36
|
36
1402-092 ShaftPropeller |
1402-092 |
US $129.25 |
||
|
37
|
37
0402-950 FlangeOutput |
0402-950 |
US $75.94 |
||
| replacement | |||||
|
37
|
37
2402-193 FLANGE,OUTPUT |
2402-193 |
US $86.82 |
||
|
38
|
38
8408-820 ScrewCap |
8408-820 |
US $3.52 |
||
|
39
|
39
0423-404 ScrewCap |
0423-404 |
US $4.38 |
||
|
40
|
40
0423-426 Washer |
0423-426 |
US $4.40 |
||
|
41
|
41
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
42
|
42
0423-315 ClampDouble wire; hose |
0423-315 |
US $5.36 |
||
|
43
|
43
0410-049 HoseVent |
0410-049 |
US $36.30 |
||
|
44
|
44
0470-462 FittingVent |
0470-462 |
US $2.68 |
||
| replacement | |||||
|
44
|
44
0470-702 FittingStraight |
0470-702 |
US $53.49 |
||
|
45
|
45
0623-101 ClipRouting |
0623-101 |
US $42.15 |
||
|
46
|
46
0402-147 BladderCase |
0402-147 |
US $11.43 |
||
| replacement | |||||
|
46
|
46
1402-620 BladderGearcase |
1402-620 |
US $12.93 |
||
|
47
|
47
1402-026 Spring |
1402-026 |
US $1.68 |
||
