Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2506-043 Frame	2506-043	—
2	2 8409-020 Screw Cap	8409-020	US $7.44
3	3 1506-725 Channel Bumper mounting	1506-725	US $27.38
4	4 1506-562 Bracket Bumper - right; mounting	1506-562	US $32.27
4	4 1506-563 Bracket Bumper - left; mounting	1506-563	US $32.27
5	5 8408-816 Screw Cap	8408-816	US $4.40
6	6 1506-855 Bumper	1506-855	US $217.14
7	7 1406-360 Grille Bumper	1406-360	US $54.50
8	8 0423-101 Screw Body	0423-101	US $14.40
9	9 0423-419 Screw Machine	0423-419	US $6.70
10	10 8428-002 Nut Lock	8428-002	US $27.20
11	11 1506-429 Brace A-arm	1506-429	US $21.13
	replacement
11	11 2516-852 Brace A-arm	2516-852	US $48.43
12	12 8408-025 Screw Cap	8408-025	US $4.22
13	13 2406-091 Panel Belly	2406-091	US $213.10
14	14 0406-289 Pad Upper rear; battery	0406-289	US $2.53
15	15 8424-802 Nut	8424-802	US $0.74
16	16 8409-016 Screw Cap	8409-016	US $8.52
17	17 1506-590 Footrest Right	1506-590	US $91.87
17	17 1506-591 Footrest Left	1506-591	US $91.87
18	18 1506-548 Channel Support	1506-548	US $28.18
19	19 0623-751 Cable tie Re-useable	0623-751	US $14.40
20	20 0423-075 Clip Snap-in	0423-075	US $7.50

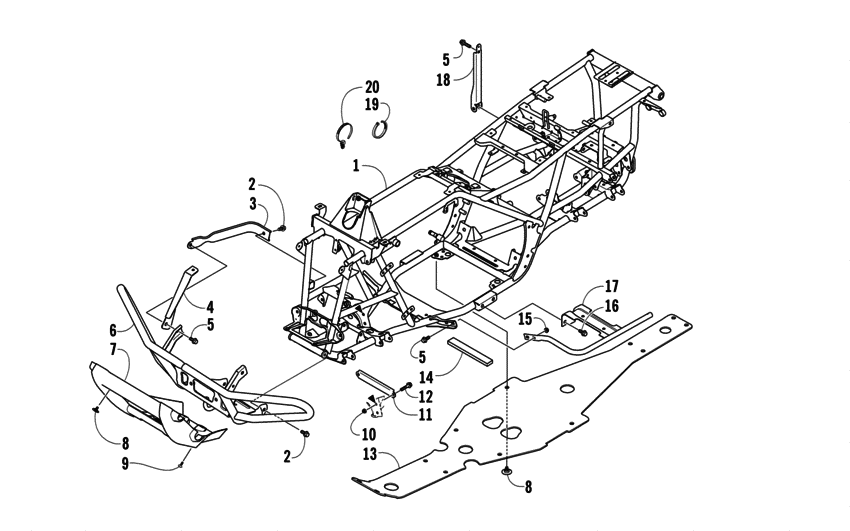

Frame and related parts Diagram Arctic Cat TBX 650 H1 Red General 10970449-697297
