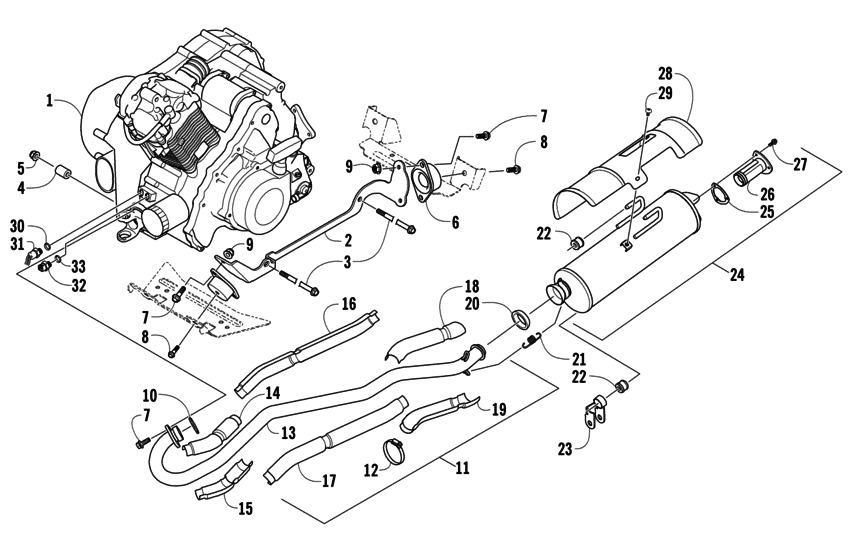

Engine and exhaust Diagram Arctic Cat TRV 400 TRV 400 AUTO
- Model code
- A2007TBH4BUSR
- Engine Capacity
- 400
- Year
- 2007
- Commercial Name
- TRV 400 AUTO
- Sales region
- General
- Colour
- Red
- Model
- TRV 400 4X4 AUTO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0462-036
Engine
|
0462-036 |
— | ||
|
2
|
2
1506-740 BracketRight; engine mounting |
1506-740 |
US $75.71 |
||
|
2
|
2
1506-741 BracketLeft; engine mounting |
1506-741 |
US $75.71 |
||
|
3
|
3
0423-405 ScrewCap |
0423-405 |
US $16.86 |
||
|
4
|
4
0423-042 SpacerEngine |
0423-042 |
US $11.25 |
||
| replacement | |||||
|
4
|
4
1423-025 SpacerEngine |
1423-025 |
US $12.62 |
||
|
5
|
5
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
6
|
6
2406-065 MountEngine; rubber |
2406-065 |
US $78.74 |
||
|
7
|
7
8408-820 ScrewCap |
8408-820 |
US $3.52 |
||
|
8
|
8
8408-012 ScrewCap |
8408-012 |
US $58.48 |
||
|
9
|
9
8432-802 NutLock |
8432-802 |
US $7.04 |
||
|
10
|
10
0412-007 SealExhaust |
0412-007 |
US $20 |
||
|
11
|
11
0512-262 PipeAssembly; exhaust inc. 12-19 ; |
0512-262 |
US $447.49 |
||
|
12
|
12
0423-317 Clamp |
0423-317 |
US $3.78 |
||
|
13
|
13
0512-281 PipeExhaust |
0512-281 |
US $267.45 |
||
|
14
|
14
0412-292 ShieldUpper; exhaust |
0412-292 |
US $33.43 |
||
|
15
|
15
0412-293 ShieldLower; exhaust |
0412-293 |
US $49.44 |
||
|
16
|
16
0412-294 ShieldInner; exhaust |
0412-294 |
US $49.44 |
||
|
17
|
17
0412-295 ShieldOuter; exhaust |
0412-295 |
US $49.44 |
||
|
18
|
18
0412-282 ShieldExhaust |
0412-282 |
US $36.30 |
||
|
19
|
19
0412-283 ShieldExhaust |
0412-283 |
US $36.30 |
||
|
20
|
20
0612-188 GasketExhaust |
0612-188 |
US $35.30 |
||
|
21
|
21
0612-668 SpringExhaust |
0612-668 |
US $36.30 |
||
|
22
|
22
0412-215 BushingExhaust |
0412-215 |
US $12.88 |
||
| replacement | |||||
|
22
|
22
0412-577 Bushing,muffler |
0412-577 |
US $15.68 |
||
|
23
|
23
1506-732 ChannelMuffler support |
1506-732 |
US $27.22 |
||
|
24
|
24
0512-306 MufflerAssembly inc. 25-27 ; |
0512-306 |
US $456.15 |
||
|
25
|
25
0412-313 GasketSpark arrester |
0412-313 |
US $27.22 |
||
|
26
|
26
0512-219 Spark arresterAssembly |
0512-219 |
US $64.59 |
||
|
27
|
27
8408-616 ScrewCap |
8408-616 |
US $2.96 |
||
|
28
|
28
0412-373 CoverMuffler |
0412-373 |
US $48.43 |
||
|
29
|
29
8477-610 ScrewMachine |
8477-610 |
US $8.80 |
||
|
30
|
30
3402-013 Gasket |
3402-013 |
US $7.80 |
||
|
31
|
31
3430-033 SwitchCooling fan |
3430-033 |
US $259.62 |
||
|
32
|
32
3530-037 SwitchOil light |
3530-037 |
US $209.42 |
||
|
33
|
33
3402-556 GasketSwitch |
3402-556 |
US $12.43 |
||
