	Description	OEM Part #	Price
1	1 1502-090 Gearcase Assembly; front drive inc. 2-44 ;	1502-090	US $1,595.40
2	2 1502-084 Shaft Assembly; propeller inc. 3-7 ;	1502-084	US $173.70
3	3 0423-411 Clamp Boot	0423-411	US $11.04
4	4 0402-985 Boot	0402-985	from US $8.74
5	5 0423-393 Clamp Boot	0423-393	US $5.70
6	6 1402-046 Shaft Output	1402-046	US $58.53
7	7 1502-085 Shaft	1502-085	—
	replacement
7	7 2502-156 SHAFT,INPUT-ASSEMBLY	2502-156	US $99.95
8	8 1402-011 Seal	1402-011	US $10.05
9	9 0423-423 Ring Retaining	0423-423	US $5.74
10	10 0502-347 Bracket Actuator	0502-347	US $31.26
11	11 1402-043 Bearing	1402-043	US $73.68
12	12 0423-118 Screw Self-tapping	0423-118	US $6.90
13	13 0502-528 Housing Pinion	0502-528	US $205.02
14	14 0402-947 Gasket Flange	0402-947	US $4.11
15	15 0423-417 Ring Retaining	0423-417	US $9.54
16	16 0502-296 Actuator inc. one No. 17 ;	0502-296	—
17	17 0423-498 O-ring	0423-498	US $7.42
	replacement
17	17 0423-892 O-ring	0423-892	US $4.80
18	18 0402-997 Shaft Selector	0402-997	US $78.74
19	19 0402-998 Fork Selector	0402-998	US $94.90
20	20 0402-417 Shaft Shuttle	0402-417	US $21.60
21	21 0423-402 Ring Retaining	0423-402	US $3.05
22	22 0423-147 O-ring	0423-147	US $1.95
23	23 0402-999 Spring Return	0402-999	US $2.30
24	24 0402-413 Coupler Drive	0402-413	US $66.61
25	25 0402-357 Collar	0402-357	—
26	26 0502-649 Gear Assembly - 9t; pinion inc. 27-28 ;	0502-649	US $205.02
27	27 0402-336 Collar Retaining	0402-336	US $52.04
28	28 0402-327 Bearing	0402-327	US $27.22
29	29 0402-328 Bearing Needle	0402-328	US $18.70
30	30 0502-120 Housing Gearcase	0502-120	US $228.25
	replacement
30	30 0502-514 Housing Gearcase	0502-514	US $228.25
31	31 0402-411 Pin Dowel	0402-411	US $8.34
32	32 1402-441 Seal	1402-441	—
	replacement
32	32 2402-150 SEAL,GEARCASE-HR	2402-150	US $20.77
33	33 0402-450 Plug Magnetic; drain inc. one No. 34 ;	0402-450	US $19.20
	replacement
33	33 1402-210 Plug Magnetic inc. one No. 34 ;	1402-210	US $21.60
34	34 0423-153 O-ring Drain plug	0423-153	US $10.28
35	35 0423-149 O-ring	0423-149	US $18.70
36	36 0402-393 Bearing	0402-393	US $18.70
37	37 0402-406 Shim	0402-406	US $11.47
37	37 0402-407 Shim	0402-407	US $11.47
37	37 0402-408 Shim	0402-408	US $12.93
37	37 0402-409 Shim	0402-409	US $11.47
37	37 0402-405 Shim	0402-405	US $11.47
38	38 0502-778 Gear 36t; ring	0502-778	US $772.78
39	39 1502-081 Cover Gearcase	1502-081	US $156.67
40	40 1402-104 Fitting	1402-104	US $51.54
41	41 0402-333 Plug Fill inc. 42 ;	0402-333	US $14.38
42	42 0423-154 O-ring Fill plug	0423-154	US $4.11
43	43 1402-211 Plug Oil level inc. one No. 34 ;	1402-211	US $21.60
44	44 0423-396 Screw Self-tapping	0423-396	US $8.44
45	45 0423-315 Clamp Double wire; hose	0423-315	US $5.36
46	46 0402-147 Bladder Case	0402-147	US $11.43
	replacement
46	46 1402-620 Bladder Gearcase	1402-620	US $12.93
47	47 0423-404 Screw Cap	0423-404	US $4.38
48	48 0423-426 Washer	0423-426	US $4.40
49	49 8428-002 Nut Lock	8428-002	US $27.20
50	50 0402-966 Boot Propeller shaft	0402-966	from US $13.31

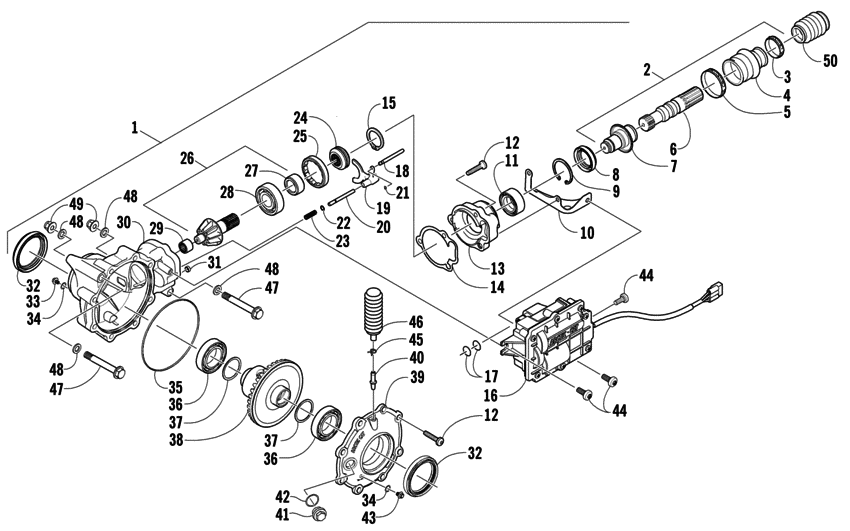

Front drive gearcase assembly Diagram Arctic Cat TRV 400 TRV 400 AUTO Red General 10972400-697340
