Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1502-078 Gearcase Rear inc. 2-32 ;	1502-078	US $1,428.13
2	2 0502-622 Housing Gearcase	0502-622	US $284.83
3	3 0402-393 Bearing	0402-393	US $18.70
4	4 1402-441 Seal	1402-441	—
	replacement
4	4 2402-150 SEAL,GEARCASE-HR	2402-150	US $20.77
5	5 1402-245 Gear 36t; ring	1402-245	US $358.58
6	6 0402-408 Shim	0402-408	US $12.93
6	6 0402-409 Shim	0402-409	US $11.47
6	6 0402-405 Shim	0402-405	US $11.47
6	6 0402-406 Shim	0402-406	US $11.47
6	6 0402-407 Shim	0402-407	US $11.47
7	7 0402-326 Button Thrust	0402-326	US $8.21
8	8 0402-433 Shim	0402-433	US $14.22
8	8 0402-429 Shim	0402-429	US $11.47
8	8 0402-430 Shim	0402-430	US $14.22
8	8 0402-431 Shim	0402-431	US $14.22
8	8 0402-432 Shim	0402-432	US $12.62
9	9 0423-149 O-ring	0423-149	US $18.70
10	10 1502-082 Cover Gearcase	1502-082	US $205.02
11	11 0402-333 Plug Fill inc. 12 ;	0402-333	US $14.38
12	12 0423-154 O-ring Fill plug	0423-154	US $4.11
13	13 1402-102 Fitting	1402-102	US $80.75
14	14 0423-118 Screw Self-tapping	0423-118	US $6.90
15	15 0402-450 Plug Magnetic; drain inc. one No. 16 ;	0402-450	US $19.20
	replacement
15	15 1402-210 Plug Magnetic inc. one No. 16 ;	1402-210	US $21.60
16	16 0423-153 O-ring Drain plug	0423-153	US $10.28
17	17 0402-328 Bearing Needle	0402-328	US $18.70
18	18 0402-411 Pin Dowel	0402-411	US $8.34
19	19 0502-782 Gear inc. 20-21 ;	0502-782	—
20	20 0402-327 Bearing	0402-327	US $27.22
21	21 0402-336 Collar Retaining	0402-336	US $52.04
22	22 0402-331 Collar Lock	0402-331	US $44.60
23	23 0402-982 Washer Wave	0402-982	US $9.44
24	24 0402-981 Collar Shaft	0402-981	US $54.50
25	25 0402-947 Gasket Flange	0402-947	US $4.11
26	26 0502-529 Housing Pinion	0502-529	US $225.23
27	27 0423-417 Ring Retaining	0423-417	US $9.54
28	28 1402-043 Bearing	1402-043	US $73.68
29	29 0423-423 Ring Retaining	0423-423	US $5.74
30	30 1402-011 Seal	1402-011	US $10.05
31	31 1502-085 Shaft	1502-085	—
	replacement
31	31 2502-156 SHAFT,INPUT-ASSEMBLY	2502-156	US $99.95
32	32 1402-211 Plug Oil level inc. one No. 16 ;	1402-211	US $21.60
33	33 0423-393 Clamp Boot	0423-393	US $5.70
34	34 0402-985 Boot	0402-985	from US $8.74
35	35 0423-411 Clamp Boot	0423-411	US $11.04
36	36 0673-618 Bumper Propeller shaft	0673-618	US $9.70
37	37 1402-092 Shaft Propeller	1402-092	US $129.25
38	38 1402-026 Spring	1402-026	US $1.68
39	39 0402-950 Flange Output	0402-950	US $75.94
	replacement
39	39 2402-193 FLANGE,OUTPUT	2402-193	US $86.82
40	40 8408-820 Screw Cap	8408-820	US $3.52
41	41 0423-404 Screw Cap	0423-404	US $4.38
42	42 0423-426 Washer	0423-426	US $4.40
43	43 8428-002 Nut Lock	8428-002	US $27.20
44	44 0423-315 Clamp Double wire; hose	0423-315	US $5.36
45	45 0410-049 Hose Vent	0410-049	US $36.30
46	46 0470-462 Fitting Vent	0470-462	US $2.68
	replacement
46	46 0470-702 Fitting Straight	0470-702	US $53.49
47	47 0623-101 Clip Routing	0623-101	US $42.15
48	48 0402-147 Bladder Case	0402-147	US $11.43
	replacement
48	48 1402-620 Bladder Gearcase	1402-620	US $12.93

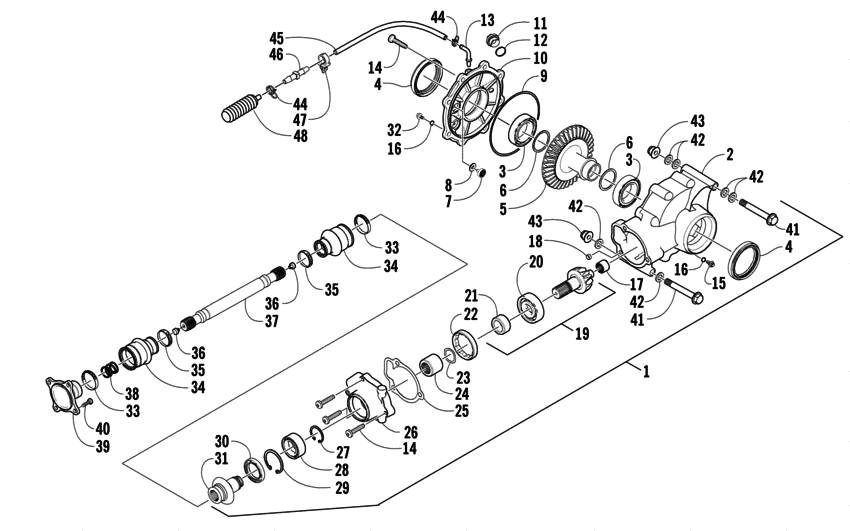

Rear drive gearcase assembly Diagram Arctic Cat TRV 400 TRV 400 AUTO Red General 10972412-697340
