Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0486-207 Harness Main inc. 2-8 ;	0486-207	US $452.42
2	2 0486-164 Tether Accessory connector	0486-164	US $13.42
3	3 0530-008 Cover Fuse block	0530-008	US $39.34
4	4 0430-037 Holder Fuse	0430-037	US $4.06
5	5 0430-034 Diode	0430-034	US $18.30
6	6 0430-033 Relay	0430-033	US $24.13
7	7 0430-032 Fuse 10 amp	0430-032	US $4.06
7	7 0430-031 Fuse 15 amp	0430-031	US $6.05
7	7 0430-030 Fuse 30 amp	0430-030	US $8.67
8	8 0411-828 Decal Fuse block	0411-828	US $7.42
9	9 0123-788 Tie Cable	0123-788	US $2.90
10	10 0445-053 Cable Solenoid/starter inc. 11 ;	0445-053	US $43.38
11	11 0645-019 Bolt Battery; terminal	0645-019	US $5.89
12	12 0645-327 Boot Terminal	0645-327	US $2.40
13	13 0445-055 Cable Battery/solenoid	0445-055	US $21.13
14	14 0623-038 Nut w/washer	0623-038	US $2.15
15	15 0445-058 Solenoid	0445-058	US $58.53
16	16 8476-625 Screw Cap	8476-625	US $12
17	17 0412-291 Shield Heat	0412-291	US $9.82
18	18 1406-787 Tray Electrical	1406-787	US $26.75
19	19 0623-362 Rivet Plastic	0623-362	US $4.40
20	20 0409-072 Switch Assembly; brake	0409-072	US $54.78
	replacement
20	20 0409-089 Switch Assembly; brake	0409-089	US $64.59
21	21 3402-684 Cushion Cdi unit	3402-684	US $14.66
22	22 3402-683 Cdi unit	3402-683	—
23	23 3402-682 Regulator Voltage	3402-682	US $416.84
24	24 0445-054 Cable Battery/ground	0445-054	US $36.30
25	25 3430-055 Coil Assembly; ignition	3430-055	US $174.51
26	26 8476-620 Screw Cap	8476-620	US $2.95
27	27 3430-009 Seal High tension cord	3430-009	US $10.62
28	28 3430-007 Cap Spark plug	3430-007	US $22.67
29	29 3430-008 Seal Spark plug	3430-008	US $11.98

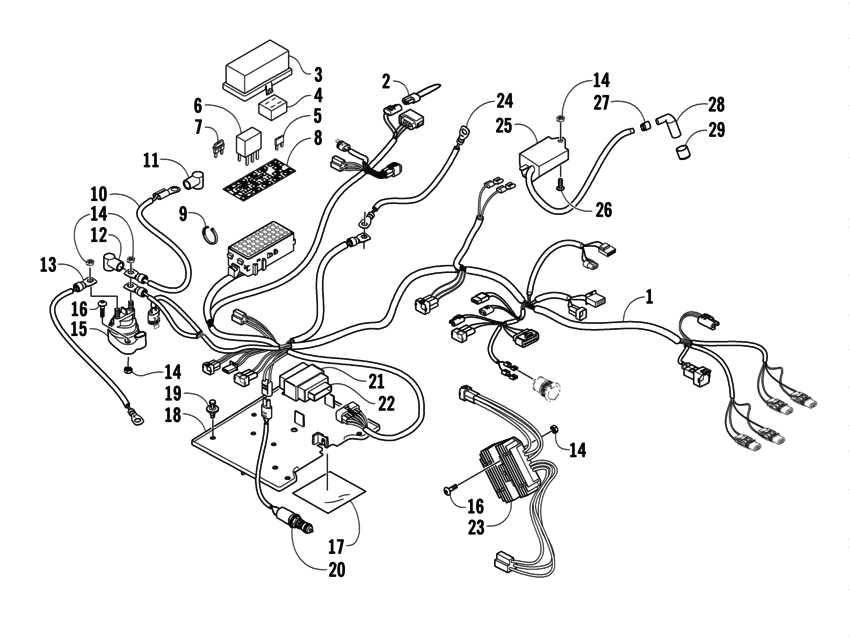

Wiring harness assembly Diagram Arctic Cat TRV 400 TRV 400 AUTO Red General 10972427-697340

Wiring harness assembly Diagram Arctic Cat TRV 400 TRV 400 AUTO Red General 10972427-697340
