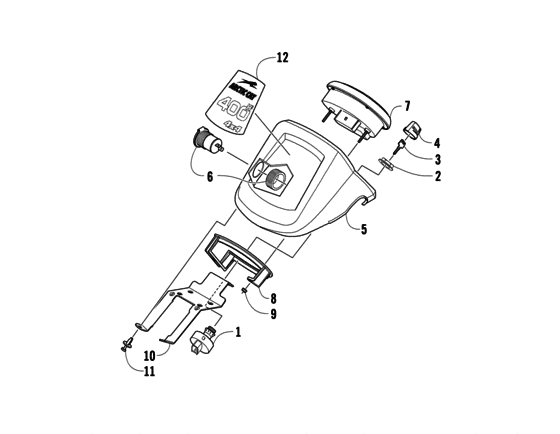

Instrument pod assembly Diagram Arctic Cat TRV 400 TRV 400 H1
- Model code
- A2010TBG4BUSP
- Engine Capacity
- 400
- Year
- 2010
- Commercial Name
- TRV 400 H1
- Sales region
- General
- Colour
- Black
- Model
- TRV 400 H1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0430-090 SwitchAssembly; ignition inc. 2-4 ; |
0430-090 |
US $71.66 |
||
|
2
|
2
0430-050 NutIgnition switch; flange |
0430-050 |
US $2.56 |
||
|
3
|
3
0430-042 KeyBlank; ignition Y Series - Left-Side Cut; |
0430-042 |
US $8.43 |
||
|
3
|
3
0430-043 KeyBlank; ignition Z Series - Right-Side Cut; |
0430-043 |
US $8.43 |
||
|
4
|
4
0430-054 Cover, keyKey |
0430-054 |
US $17.09 |
||
|
5
|
5
0405-276 Instrument pod |
0405-276 |
US $99.23 |
||
|
6
|
6
0641-897 Outlet12v; accessory |
0641-897 |
US $26.21 |
||
|
7
|
7
0520-042 GaugeAnalog/lcd |
0520-042 |
US $579.82 |
||
|
8
|
8
0420-065 ClampPlastic |
0420-065 |
US $5.70 |
||
|
9
|
9
0423-493 Nut w/washer |
0423-493 |
US $2.15 |
||
|
10
|
10
2506-470 BracketInstrument pod; mounting |
2506-470 |
US $27.22 |
||
|
11
|
11
0423-535 RivetReinstallable |
0423-535 |
US $9.05 |
||
|
12
|
12
1411-936 DecalInstrument pod |
1411-936 |
US $18.32 |
